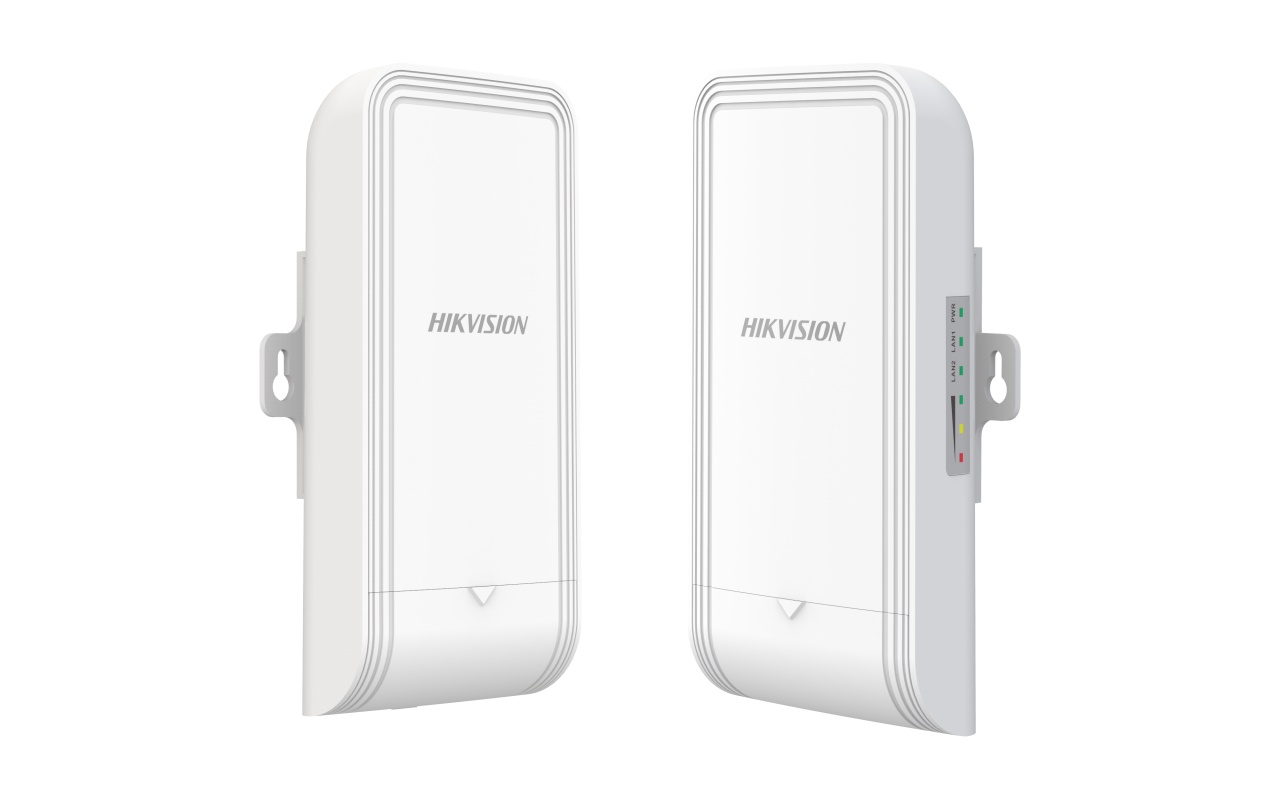

Wireless Bridge Hikvision DS‑3WF1000‑EI‑2N/P, 1 km 300 Mbps, 802.11n cu antene 7 dBi MIMO 2×2, PoE in/out, topologie vizualizata, alarm push in timp real, plug and play

HikVision
267,00 RON (TVA inclus)
220,66 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Cod produs - SKU DS-3WF1000-EI-2N/P
EAN 8924
Produs disponibil in stoc extern .
Disponibil cu precomanda
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere

  • General
  • Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'')
  • Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
  • Net Weight0.26 kg (0.57 lb) per device
  • Gross Weight1.1 kg (2.43 lb)
  • Packing ListWireless Bridge × 2,Binding Tape × 4,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,PoE Power Supply × 2,AC Cord × 2
  • Packing MethodPacking in pairs
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Installation ModePole Mounting
  • Ingress ProtectionIP55
  • Power Consumption1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W
  • Wireless Parameter
  • Max. Transmission Rate of Air Interface≤ 300 Mbps
  • Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
  • Working Frequency Band2400 MHz ~ 2483.5 MHz
  • Antenna Gain7 dBi
  • Antenna Angle(H) Beamwidth [3 dB] 60° (V) Beamwidth [3 dB] 50°
  • Transmitting Power22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity-87±2 dBm @HT40 MCS0
  • Throughput RatePTP: ,90 Mbps/0.2 KM(HT40),90 Mbps/0.5 KM(HT40),70 Mbps/1 KM(HT40),PTMP(1 to 4): ,40 Mbps/1 KM(HT40)
  • PoE Power Supply
  • PoE PortAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
  • PoE Power Budget10 W
  • PoE Distance100 m
  • Hardware Parameter
  • Network Interface2 × 10/100 Mbps RJ45 ports
  • LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
  • ResetHardware resetting button
  • Power Supply48V PoE;Check the physical interface image below for more details
  • Software Function
  • Application FunctionIFM,IPM
  • Channel Width10/20/40 MHz
  • Channel SelectionAuto/manual selection
  • Security ModeWPA2-PSK
  • Security MechanismWireless network name hidden
  • Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
  • Management MethodHCP,Web,iVMS-4200,HPP
  • System LogSyslog,Control center information
  • UpgradeWeb,iVMS-4200,HCP,HPP
  • HPP

    Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

    1. Reboot device

    2. Restore device

    3. Display the topology information

    4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate

    5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power

    6. Bridge alignment

    7. Spectrum scanning

  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17

Detalii

SKU
DS-3WF1000-EI-2N/P
EAN
8924
Categorii
Routere si AP-uri
Brand
HikVision
Fisa tehnica
DS-3WF1000-EI-2N_P_Datasheet_20250519.pdf
