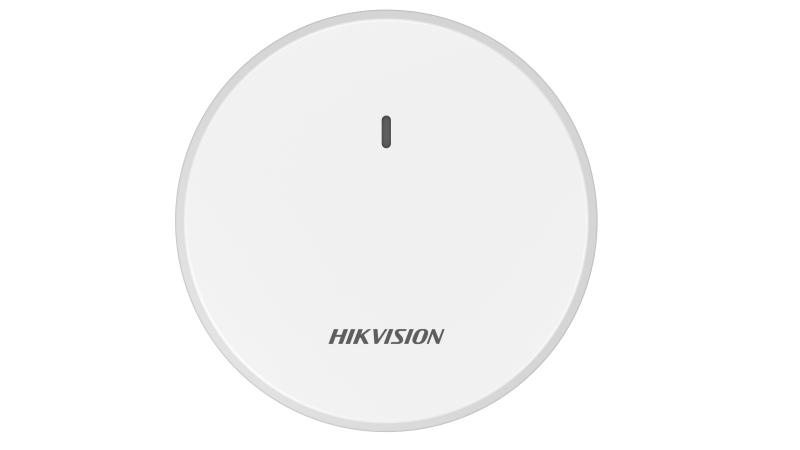

Wi-Fi 5 1200M Access Point de Tavan 1 Gigabit Port with PoE Hikvision DS-3WAP522-SI

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• General
• Weight0.4 kg (0.88 lb)
• Installation ModeDesk-Mounted,Wall-Mounted,Ceiling Mounting
• Working Temperature0 °C to 40 °C (32 °F to 104 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
• Storage Humidity5% to 95% (no condensation)
• Product Dimensions (W × H × D)220 mm × 220 mm × 35 mm (8.66'' × 8.66'' × 1.37'')
• Packing List1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
• Power ConsumptionMax. 11.35 W

• WLAN Parameters
• Maximum Number of Clients256
• Recommended Number of Clients80
• Maximum Number of SSIDs8
• Working Frequency Bandradio 1: 5G(11a/an/ac), radio 2: 2.4G(11b/g/gn)
• Wi-Fi StandardsWi-Fi 5
• Wi-Fi Speed2.4 G: 300 Mbps,5 G: 867 Mbps
• Spatial Streams2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
• Channel Width2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/MHz
• Number of Antennas2.4 GHz：2；5 GHz：2
• Antenna TypeBuilt-in omnidirectional antennas
• Antenna Gain2.4 GHz: 3 dBi,5 GHz: 4 dBi
• Transmit Power20 dBm
• Modulation TechnologyOFDM：BPSK@6/9Mbp、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps; DSSS：DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps; MIMO-OFDM （11n）：MCS 0-15; MIMO-OFDM （11ac）：MCS 0-9

• Software Specifications
• WLAN SecurityWAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i
• Management & MaintenanceCentralized AC management
• Version Upgradeupgrade on Web

• Hardware Specifications
• Interface1 × Gigabit RJ45 uplink port
• Power SupplyIEEE 802.3af/at POE,12 VDC 1.5 A
• LED IndicatorYellow/green/blue for different working states, flashing mode
• Reset ButtonHardware Resetting Button

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
