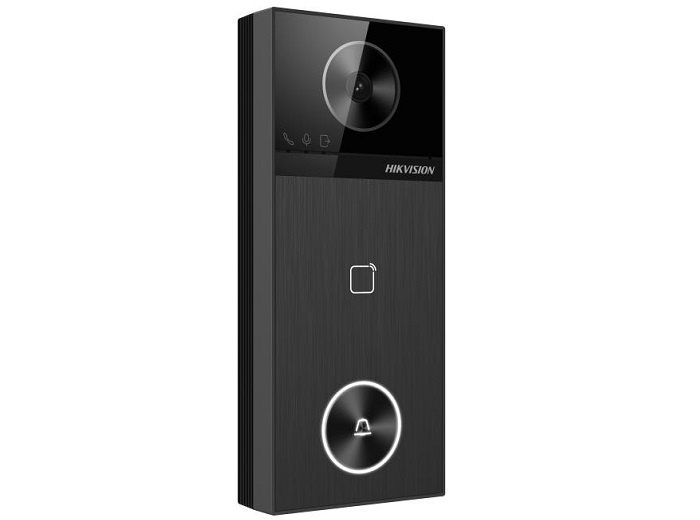

Videointerfon IP Hikvision pentru exterior DS-KV6114-E1 4MP, unghi vizualizare 150°, control 2 incuietori, card Mifare, deschidere via Hik-Connect sau statie interior, PoE IEEE802.3at, inregistrare si redare video
Descriere
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Wi-Fi
Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general 2,4 gigahertzi UHF si 5 gigahertzi SHF ISM benzi radio
Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
- System parameters
- Operation systemLinux
- ROM4 GB
- RAM512 MB
- ProcessorEmbeded high performance processor
- Video parameters
- Lens1
- Resolution
Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P)
Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
- FOVHorizontal: 150°; Vertical: 75°
- Wide dynamic range (WDR)Support 120 dB
- Supplement lightIR light, up to 3 m
- Video compression standardH.264; H.265; MJPEG
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
- Audio output1 built-in loudspeaker
- Audio compression bitrate8~64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Audio Performance50cm 80dB (Maximum: 50cm 83dB)
- Audio Sample Rate16kHz、8kHz
- Capacity
- User capacity2000
- Face capacity/
- Card capacity10000
- Network parameters
- Network protocolTCP/IP, RTSP, ipv6,onvif
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Wi-Fi Protocol/
- Wi-Fi Type/
- Authentication
- Authentication modeCard, Hik-Connect, Indoor station
- Card typeM1 Card
- Card reading distanceM1card：2 to 2.5 cm
- Card reading frequency13.56 MHz
- Application
- Mobile APPHik-Connect
- Motion DetectionSupport
- PlaybackSupport
- Call ElevatorSupport
- Smart FeaturesSound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
- Device interfaces
- Alarm input4, (include Exit button and Door contact input)
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button1
- RS-4851
- USB/
- Wiegand/
- TF cardSupport TF card, up to 128 G
- Alarm output/
- Lock control2 relay, Max. 30 VDC 2 A
- Door contact input1
- Supported TF FormatFAT32;exFAT
- General
- Button1 physical button
- InstallationSurface mounting
- Indicator3
- Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
- Protective levelIP65
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97")
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
- Power supply12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
- Material
Front Shell and Rear Shell Material: Plastic
Viewing Window Panel Material: Glass
- Power Supply OutputMax. 12 VDC, 1 A
