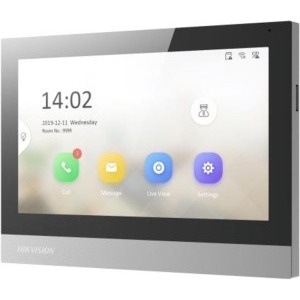

Videointerfon IP Hikvision DS-KH8380-WTE1/SF, unitate interioara 7 inch TFT touch 1024x600, WiFi si PoE, 8x alarm input, 4x lock control, MicroSD, comunicare bidirectionala, live view, control acces

Descriere

System parameters

• • Operation systemEmbedded Linux operation system
  • ROM32 MB
  • RAM128 MB
  • ProcessorEmbedded high performance processor
  • Display parameters
  • Screen size7-inch
  • Operation methodCapacitive touch screen
  • TypeColorful TFT
  • Resolution1024*600
  • Video parameters
  • Lens/
  • Resolution/
  • FOV/
  • Wide dynamic range (WDR)/
  • Video compression standardH.265；H.264
  • Focal length/
  • Audio parameters
  • Audio input1 built-in omnidirectional microphone
  • Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output1 built-in loudspeaker
  • Audio compression bitrate16/32/64 Kps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • Message capacity

    TF card inserted: 200 captured pictures, 200 alarm records

    Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

  • Notice capacity200
  • Linked network camera capacity16
  • Linked indoor extensions capacity16
  • Linked doorphone capacity/
  • Network parameters
  • Network protocolTCP/IP, SIP, RTSP
  • Wi-FiWiFi 802.11b/g/n
  • Wireless network1 RJ-45 10/100Mbps self-adaptive
  • Bluetooth/
  • 3G/4G/
  • Zigbee/
  • Device interfaces
  • Alarm input8
  • Network interface1 RJ-45 10/100Mbps self-adaptive
  • TAMPER/
  • RS-4851
  • USB/
  • TF cardSupport TF card, up to 128 G
  • Alarm output/
  • Lock control4 relays, Max. 30 VDC 1A
  • Power supply outputMax. 12 VDC 0.5 A
  • Debugging port1
  • Relay4
  • General
  • Button/
  • InstallationFlush mounting, surface mounting, table mounting
  • Indicator/
  • Without package: 366.7 g (0.808 lb)
  • Protective level/
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)178.4 mm × 126.4 mm × 21.8 mm (7.02" × 4.98" × 0.86")
  • Battery/
  • Power supplyIEEE802.3at, Standard PoE,12 VDC, 1.5 A
  • Application environmentIndoor
  • Power consumption≤ 12 W
  • Language English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
  • MaterialPlastic casing
