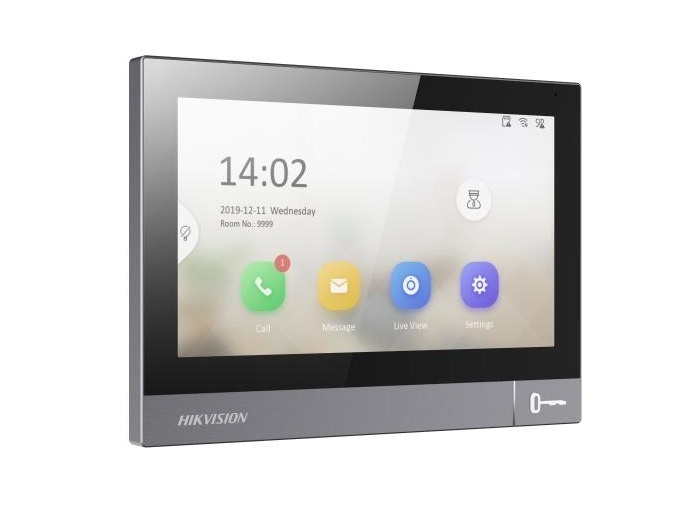

Videointerfon interior IP Hikvision DS-KH8381-WTE1, ecran IPS 7 inch 1024×600, design metal, buton fizic deschidere usa, control via Hik-Connect, PoE IEEE802.3at, suport 16 extensii, interfon live view si integrari avansate
Descriere
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.
Wi-Fi
Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general 2,4 gigahertzi UHF si 5 gigahertzi SHF ISM benzi radio.
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.
- System parameters
- Operation systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1024*600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standardH.265；H.264
- Focal length/
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate16、32、64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Message capacity
TF card inserted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity200
- Linked network camera capacity16
- Linked indoor extensions capacity16
- Linked doorphone capacity/
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-FiWiFi 802.11b/g/n
- Wireless network1 RJ-45 10/100Mbps self-adaptive
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851
- USB/
- TF cardSupport TF card, up to 128 G
- Alarm output/
- Lock control4 relays, Max. 30 VDC 1A
- Power supply outputMax. 12 VDC 0.5 A
- Debugging port1
- Relay4
- General
- Button1 physical button(s)
- InstallationFlush mounting, surface mounting, table mounting
- Indicator/
- Without package: 412.2 g (0.909 lb)
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86")
- Battery/
- Power supplyIEEE802.3at, Standard PoE,12 VDC, 1.5 A
- Application environmentIndoor
- Power consumption≤ 12 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- MaterialDie-cast integrated aluminum alloy casing
