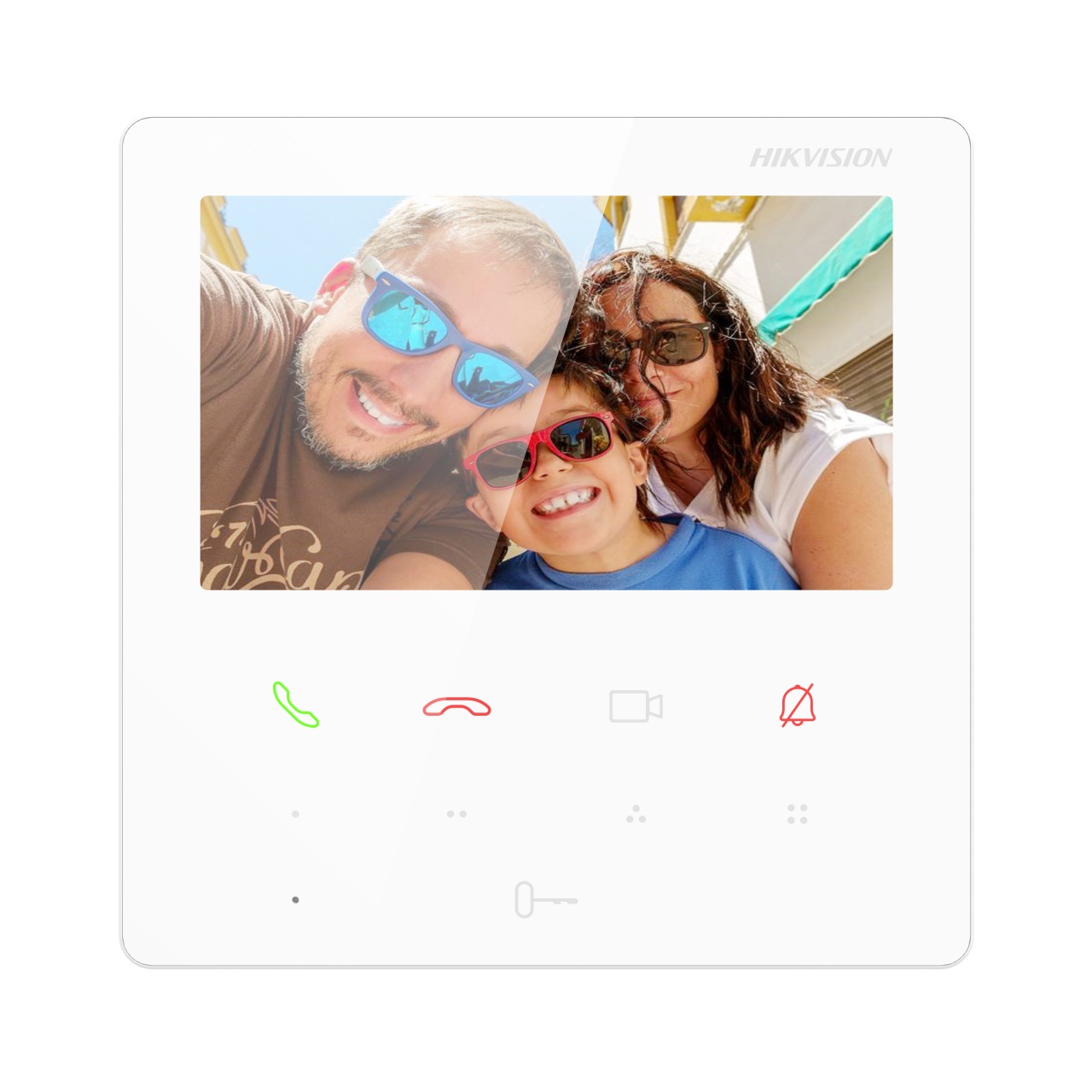

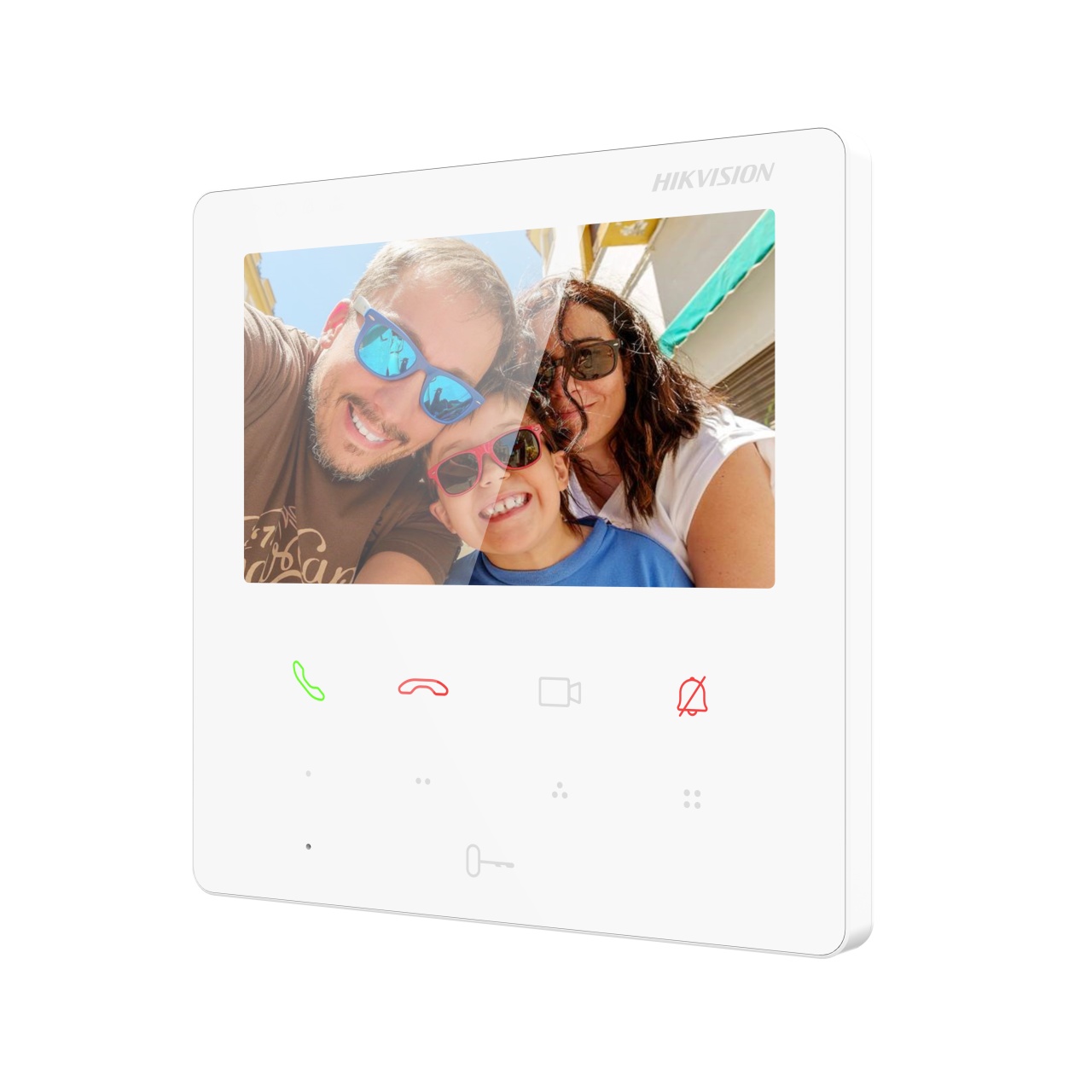

Videointerfon interior IP Hikvision DS-KH6110-WE1/White, ecran touchscreen 4.3 inch 480×272, setup usor, control prin Hik‑Connect, PoE, vizualizare live statii usa si camere, 4 butoane personalizabile, design prietenos

Descriere

Microfonul incorporat permite monitorizarea sonora a locatiei.

IP

O camera IP este o camera video digitala in retea, care transmite datele printr-o legatura fast ethernet link. Camerele IP (deasemenea numite “camere de retea “) sunt cel mai des folosite pentru supravegherea video, o versiune digitala si de retea a televiziunii cu circuit inchis (CCTV).

Beneficiile camerei IP fata de tehnologia analogical :

- Administrare de la distanta din orice locatie;

- Zoom digital;

- Capacitate de a trimite cu usurinta imagini si video oriunde , cu o conexiune la internet;

- Scanare progresiva, care permite imagini de o calitate mai buna extrase din inregistrare, in special pentru tintele mobile;

- Numarul de cadre reglabil pentru a atinge specificatiile cerute;

- Capacitatea de a trimite semnale de alerta in cazul in care este detectata activitate suspecta;

- Cerinte de cablare mai mici.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

• System parameters
• Operating systemLinux
• ROM16 MB
• RAM128 MB
• CPUEmbedded processor

• Display parameters
• Screen size4.3-inch
• Operation methodCapacitive touch screen with 9 touch buttons
• TypeColorful TFT
• Resolution480 × 272

• Video parameters
• Lens/
• Resolution/
• FOV/
• WDR/
• Video compression standard/
• Focal length/

• Audio parameters
• Audio compression standardG.711 U, G.711 A
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• Event capacity200
• Notice capacity200
• Linked indoor extensions capacity16

• Network parameters
• Communication protocolTCP/IP, SIP, RTSP
• Wi-Fi standardWi-Fi 802.11 b/g/n, 2.4 GHz
• Bluetooth version/
• 3G/4G standard/
• Zigbee/

• Device interfaces
• Alarm input4
• Network interface1 RJ-45 100 Mbps
• TAMPER/
• RS-485/
• USB/
• TF card/
• Alarm output/

• General
• Button9 touch buttons
• InstallationWall mounting, table mounting
• Indicator/

• With package: 336.6 g (0.7 lbs)

  Without package: 197.8 g (0.4 lbs)

• Protective level/
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90%
• Dimensions120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
• Application environmentIndoor
• Power consumption≤ 4 W
• LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
• Power supplyIEEE802.3af, Standard PoE,12 VDC
