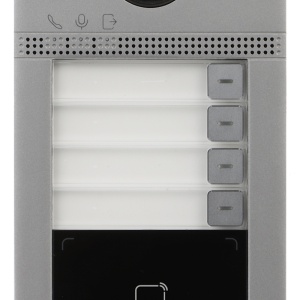

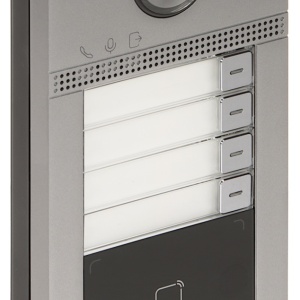

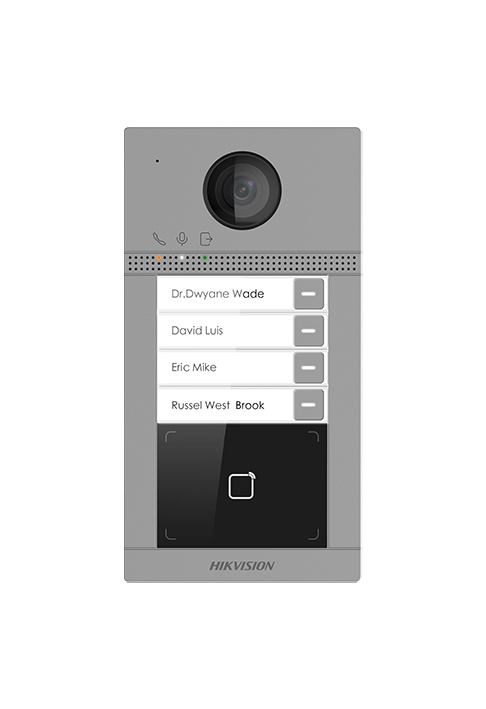

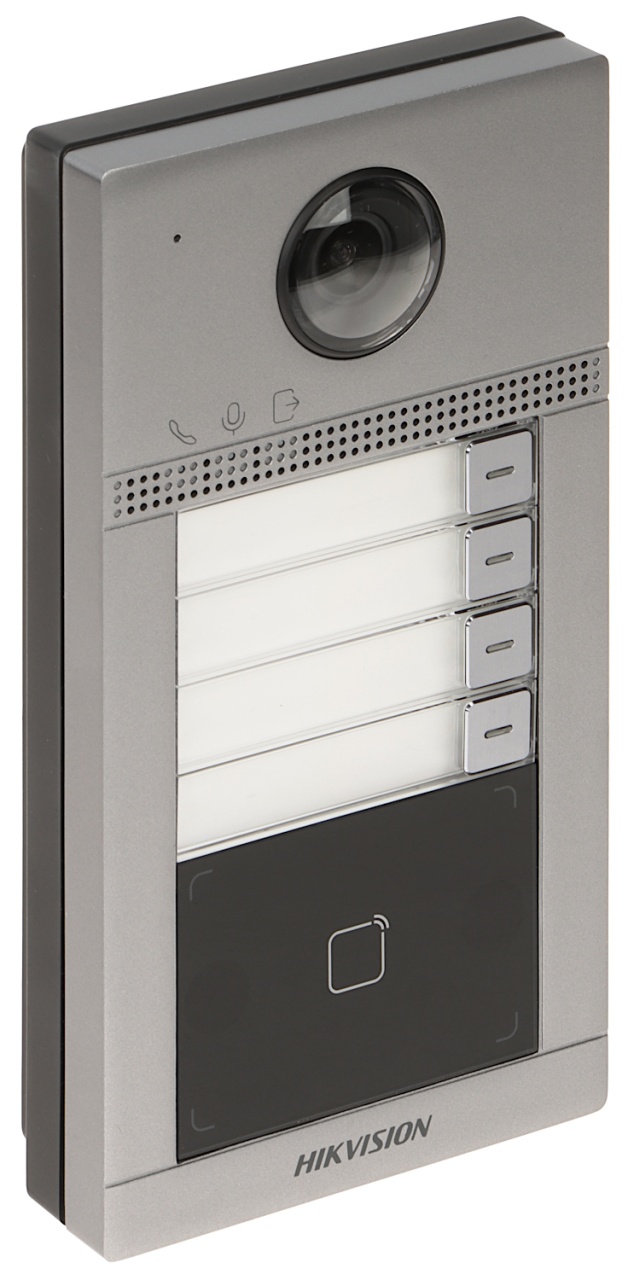

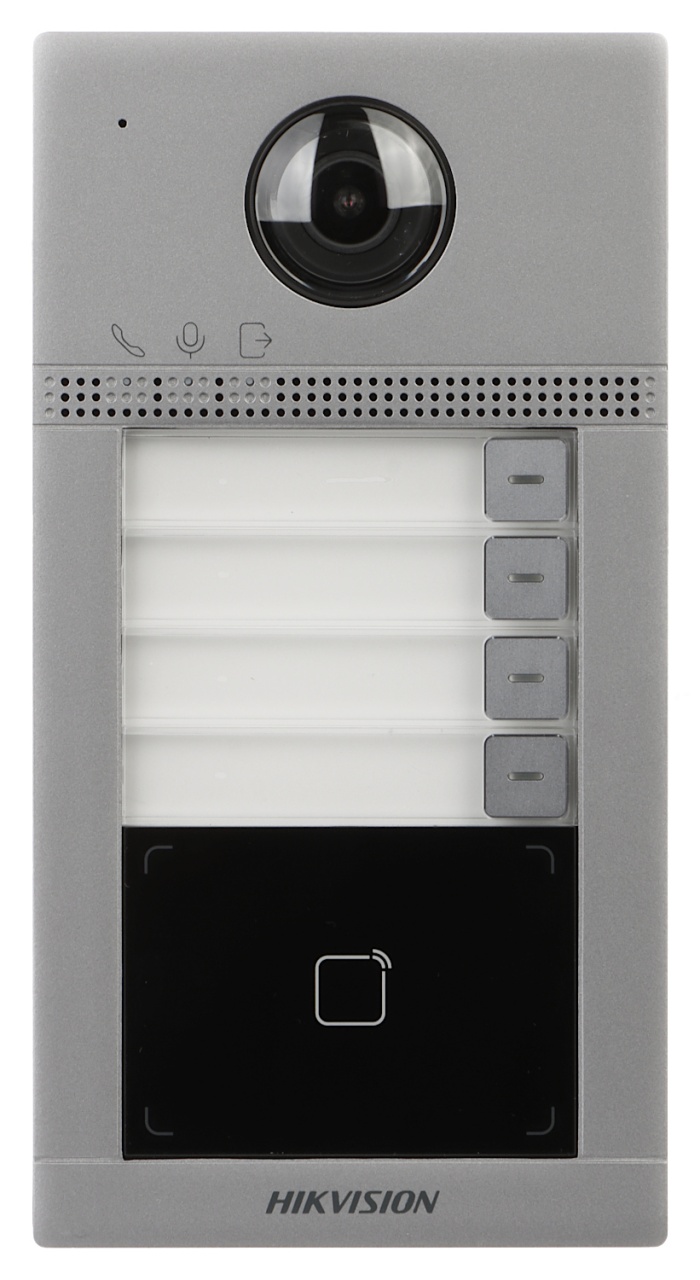

Videointerfon HikVision 2MP DS-KV8413-WME1(C)

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• System Parameters
• Operation SystemLinux
• ROM32 MB
• RAM256 MB
• ProcessorEmbeded high performance processor

• Display Parameters
• Screen Size/
• Operation Method/
• Type/
• Resolution/

• Video Parameters
• Lens1
• Resolution

  Main stream:1920p × 1080 and 1280 × 720p

  Sub stream: 640 × 480p

• FOVHorizontal: 124° Vertical: 75°
• Wide Dynamic Range (WDR)Digital WDR/76.9 dB
• Supplement LightIR light, up to 3 m
• Video Compression StandardH.264

• Audio Parameters
• Audio Input1 built-in omnidirectional microphone
• Audio Compression StandardG.711 U, G.711 A
• Audio Output1 built-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• User Capacity2000
• Card Capacity10000
• Linked Indoor Station Capacity4 (main indoor station)
• Sub Door Station Capacity16

• Network Parameters
• Network ProtocolTCP/IP, RTSP
• Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/
• Received Frequency2.4 to 2.4835 GHz
• Transmitted Frequency2.4 to 2.4835 GHz
• Bandwidth20/40 MHz
• Frequency Power

  802.11b:15 dBm +/- 1.5 dBm

  802.11g:15 dBm +/- 1.5 dBm

  802.11n(ht20):14 dBm +/- 1.5 dBm

  802.11n(ht40):12 dBm +/- 1.5 dBm

• Authentication
• Card Reading Frequency13.56 MHz

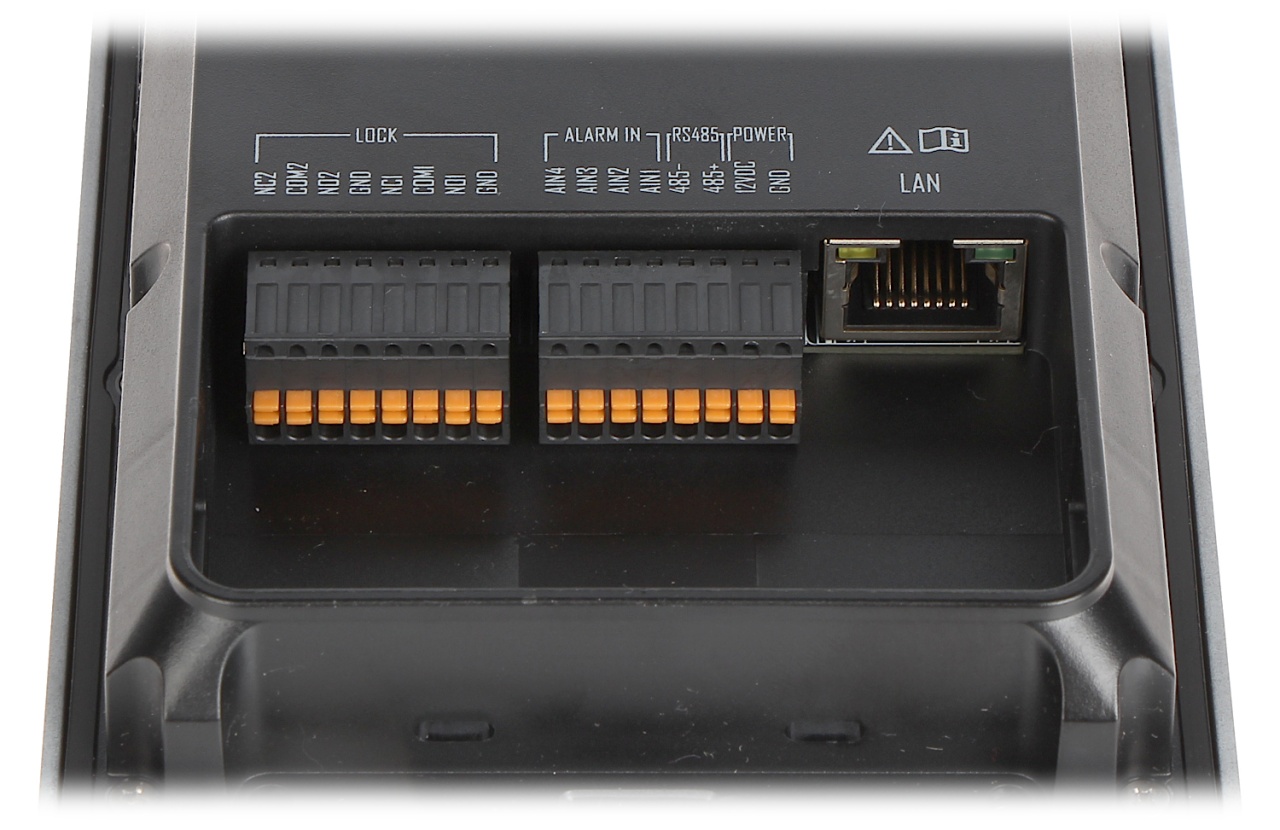

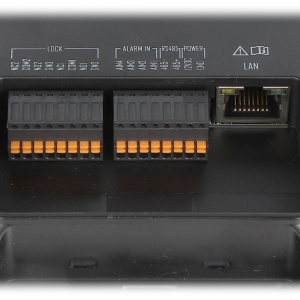

• Device Interfaces
• Alarm Input4
• Network Interface1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER1
• Exit Button2
• RS-4851
• USB/
• Wiegand/

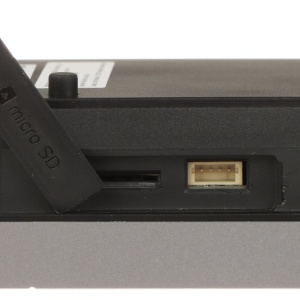

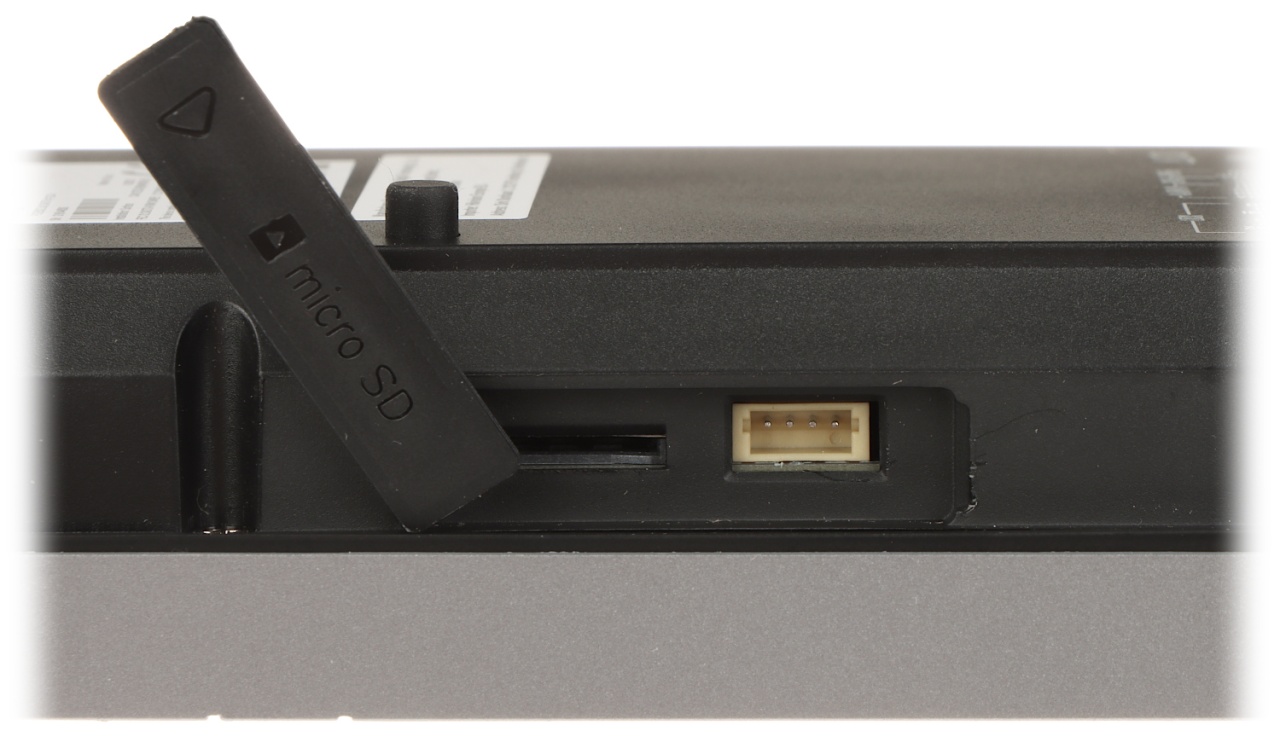

• TF CardReserved
• Alarm Output/

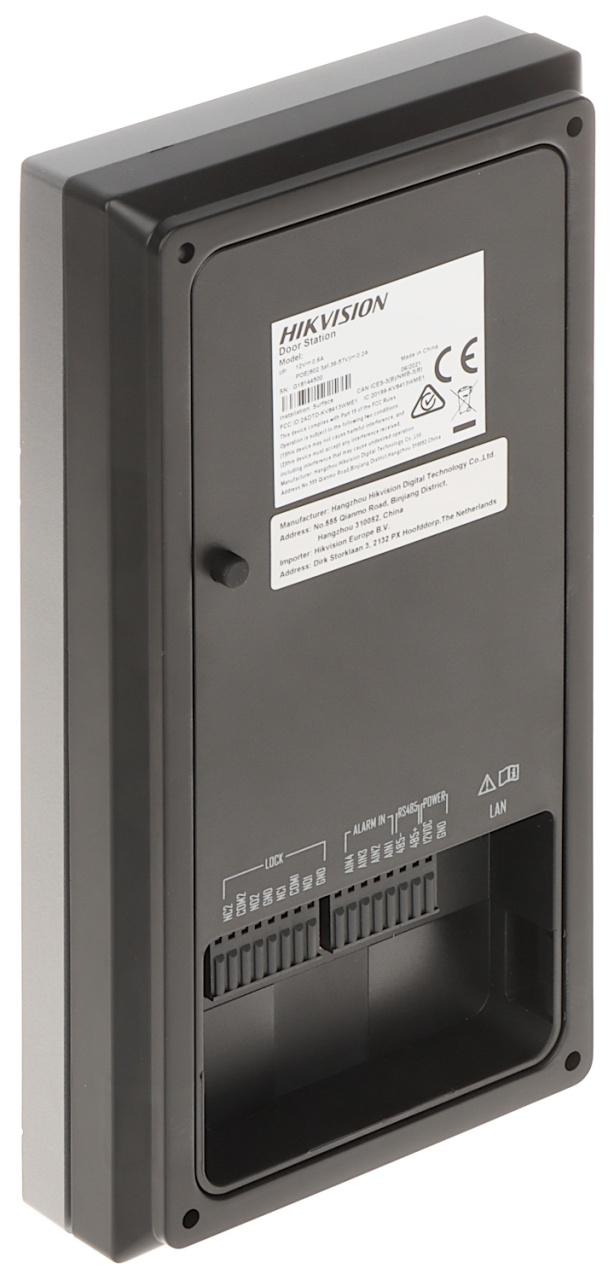

• Lock Control2 relays, Max. 30 VDC 2 A
• Door Contact Input2

• General
• Button4 physical buttons

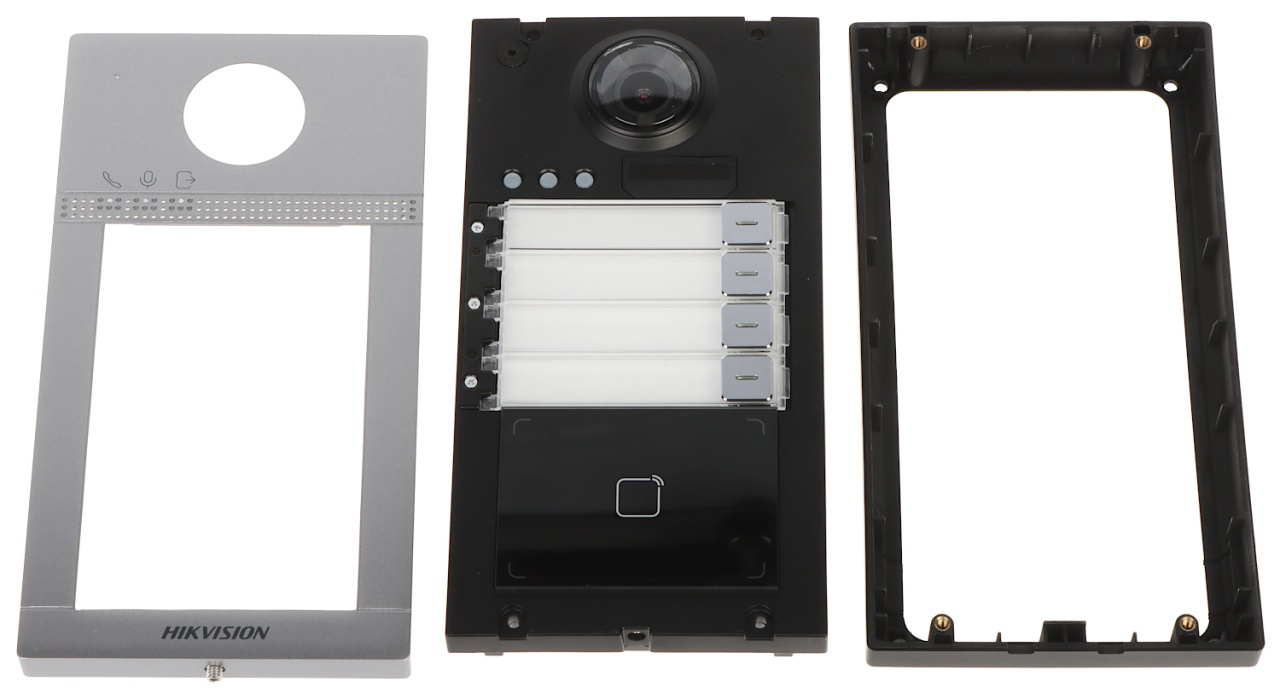

• InstallationSurface mounting
• Indicator3
• Weight

  Net weight: 0.400 kg

  Gross weight: 0.658 kg

• Protective LevelIP65, IK08
• Working Temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
• Working Humidity10% to 95% (no-condensing)
• Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
• Battery/
• Application EnvironmentOutdoor
• Power Consumption＜ 10 W
• LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
