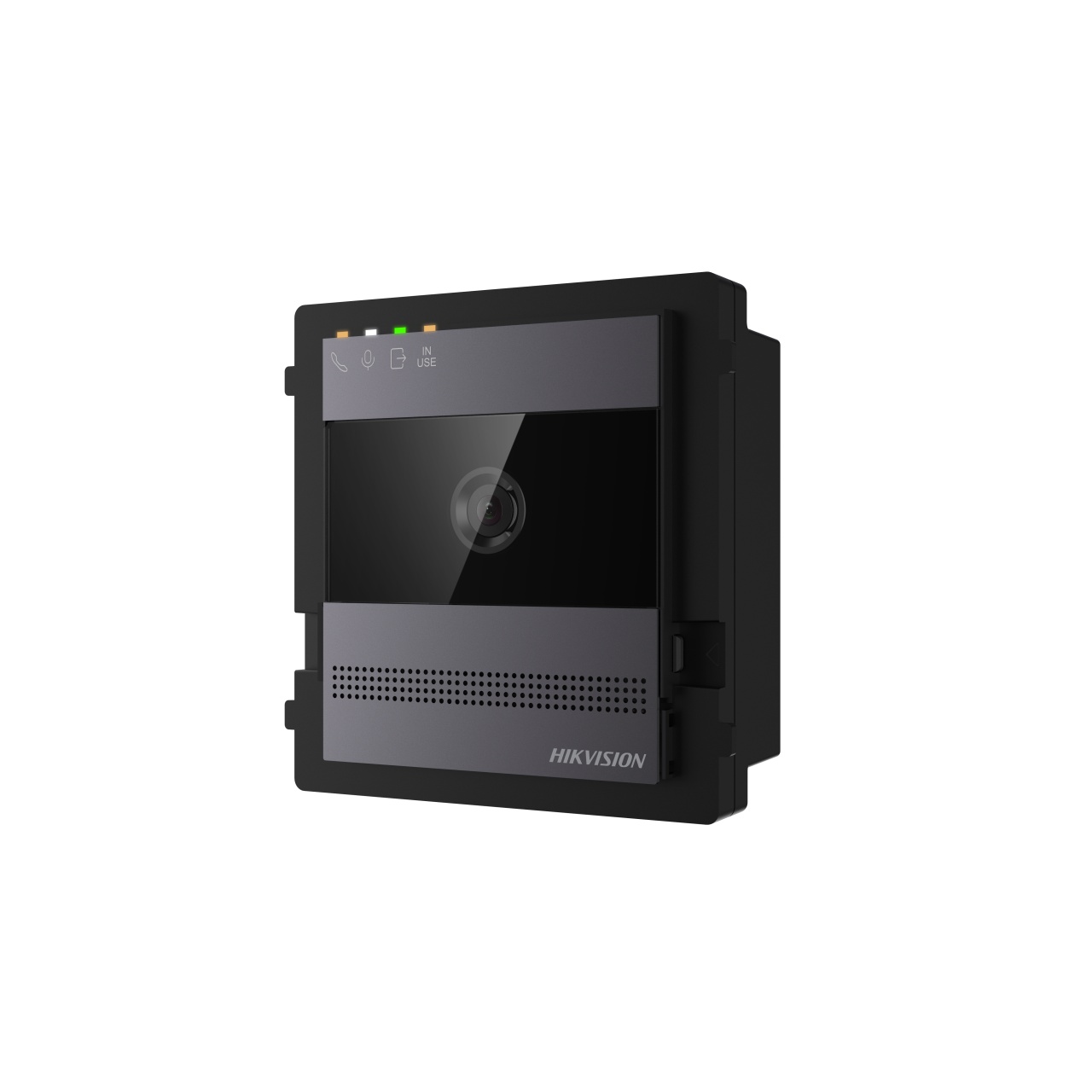

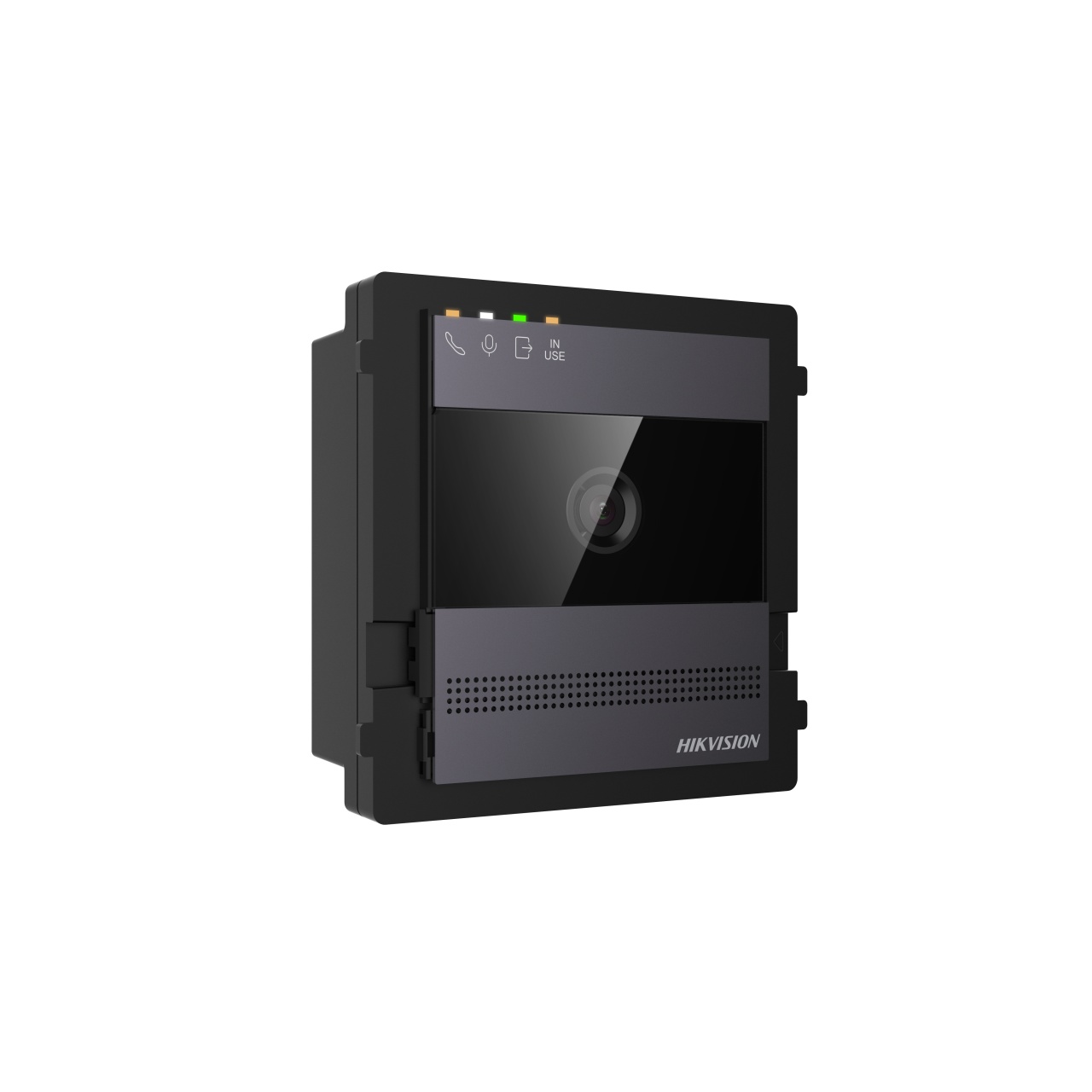

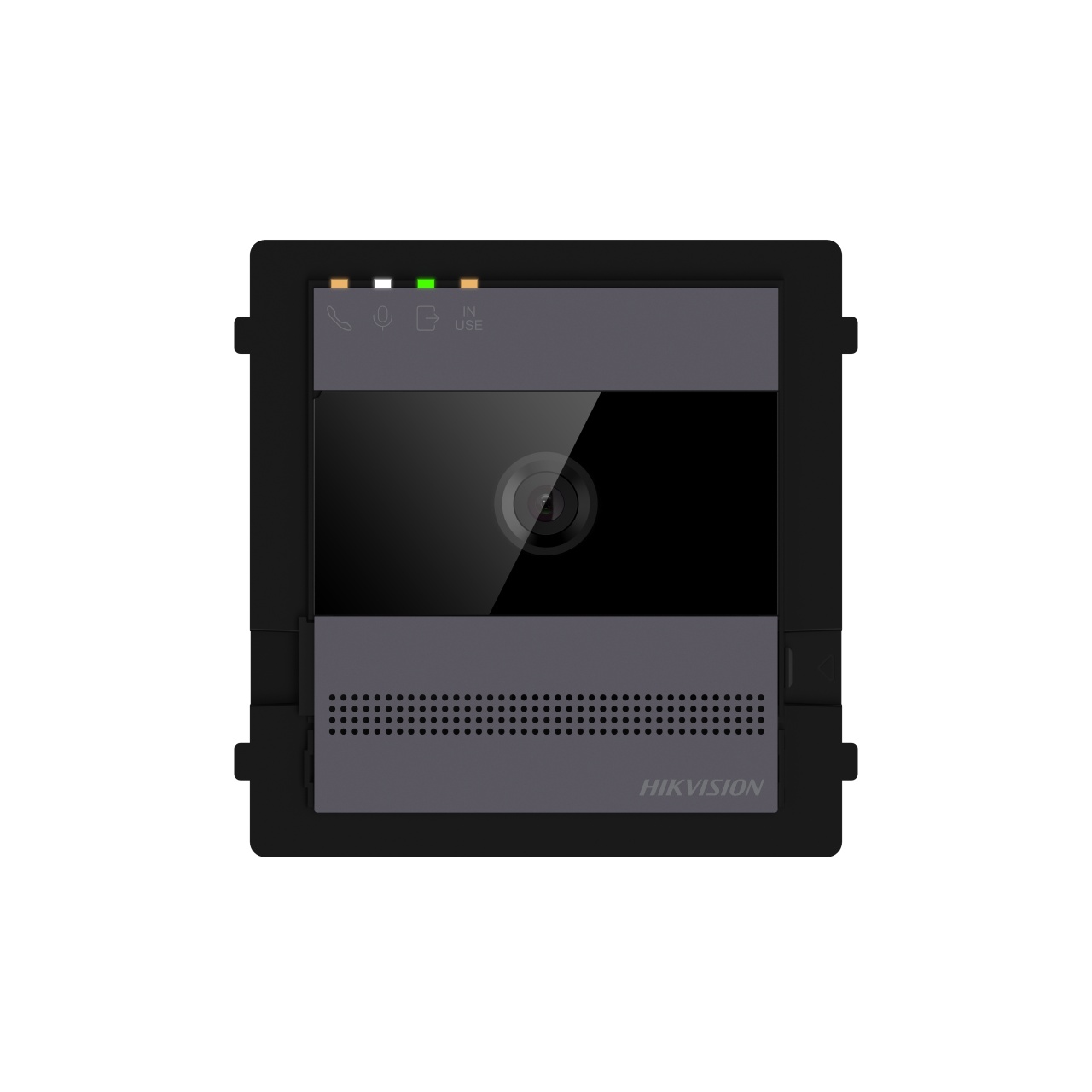

Videointerfon 2-wire Hikvision DS-KD7003EY-IME2/Aluminum, imagini HD cu WDR si unghi larg, configurare usoara AP mode si plug&play, butoane configurabile, indicatori multipli status, control doua yale, carcasa aluminiu

HikVision
497,06 RON (TVA inclus)
410,79 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Stoc 41
Cod produs - SKU DS-KD7003EY-IME2/Aluminum
EAN 8863
Disponibil in stoc
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere

  • System parameters
  • Operating systemEmbedded Linux operation system
  • ROM4 GB
  • RAM256 MB
  • CPUEmbedded Processor
  • Display parameters
  • Screen sizeNA
  • Operation methodNA
  • TipNA
  • ResolutionNA
  • Video parameters
  • Supplement lightLow illumination, IR supplement lights
  • Video standardH.264
  • Lens1
  • FOVHorizontal: 133°, Vertical: 82°
  • WDR

    Support

  • Resolution2 MP
  • Audio parameters
  • Audio compression standardG.711 U, G.711 A
  • Audio input

    Built-in omnidirectional microphone

  • Audio outputBuilt-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • User capacity2000
  • Linked indoor station capacityMax.400
  • Sub door station capacity16
  • Network parameters
  • Wired network10/100 Mbps self-adaptive through 2-wire interface
  • Wi-FiOnly AP mode for configuration
  • BluetoothNA
  • 3G/4GNA
  • Device interfaces
  • Alarm input2（supports Exit button or Door contact input）
  • Network interfaceNA
  • TAMPER1
  • Exit button1
  • Door contact input1
  • RS-4852 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
  • WiegandNA
  • TF cardNA
  • Alarm outputNA
  • DIP switch6 decimal DIP switch
  • Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Power interface48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Two-wire IP interface1
  • General
  • Button0-2（Flexible adjustment）
  • InstallationSurface mounting & flush mounting
  • Indicator4 LED lights(Opening door、Calling、Intercom、In use）
  • With package: 426g ( 0.94lb),Without package: 290g ( 0.64lb)
  • Protective levelIP65 IK08
  • Working temperature

    -40° C to 60° C (-22° F to 140° F)

  • Working humidity

    10% to 90%

  • Dimensions

    99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88\" × 1.37\")

  • Battery/
  • Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Application environmentOutdoor
  • Power consumption≤ 6 W
  • LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Detalii

SKU
DS-KD7003EY-IME2/Aluminum
EAN
8863
Categorii
Posturi exterioare
Greutate
0.37 kg
Brand
HikVision
Producator
HikVision
Rezolutie
2 MP
Audio
Microfon, Difuzor incorporat
Fisa tehnica
DS-KD7003EY-IME2_Aluminum_2-wire-HD-Door-Station_Datasheet_20240305.pdf
