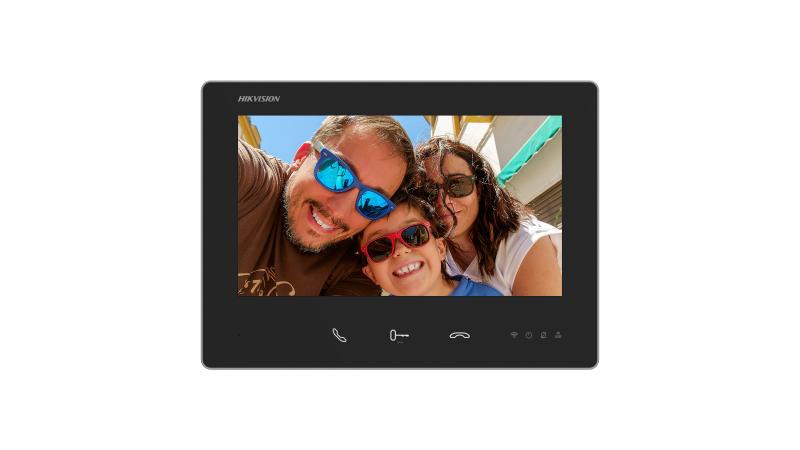

Videointerfon 2 fire Hikvision DS-KH7300EY-WTE2, ecran touch 7 inch HD, Wi-Fi, 3 butoane fizice, configurare usoara prin DEC, suport Hik-Connect, vizualizare live, functie deschidere automata, montaj pe perete

Descriere

• ystem parameters
• Operating systemEmbedded Linux operation system
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

• Display parameters
• Screen size7-inch
• Operation methodCapacitive touch screen
• TipColorful TFT screen
• Resolution1024 × 600

• Video parameters
• Lens/
• FOV/
• WDR/
• Resolution/
• Focal length/

• Audio parameters
• Audio compression standardG.711 U G.711 A
• Audio input1 Built-in omnidirectional microphone
• Audio output1 Buit-in loudspeaker
• Audio compression bitrate64 Kps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• Event capacity200 captured pictures (with TF card)
• Linked indoor extensions capacity3

• Network parameters
• Communication protocolTCP/IP, RTSP
• Wired network10/100 Mbps self-adaptive through 2-wire interface
• Wi-Fi standard/
• 3G/4G standard/
• Zigbee/

• Device interfaces
• Alarm input1
• TAMPER/
• RS-485/
• USB/
• TF cardMax to 128 G, SD 2.0 or lower version
• Alarm output/
• DIP switch5 decimal DIP switch and 4 binary DIP switch
• Power supply input12V DC
• Two-wire IP interface2, 1 for input 1 for output

• General
• Button3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
• InstallationSurface mounting
• Indicator3（Power、Mute、In use）
• WeightWith package: g ( lb),Without package: g ( lb)
• Protective level/
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90% (no-condensing)
• Dimensions190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
• Battery/
• Power supply48V，Powered by DS-KAD7060EY or DS-KAD7061EY
• Application environmentIndoor
• Power consumption≤ 4W（stand by ≤ 1W）
• LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
