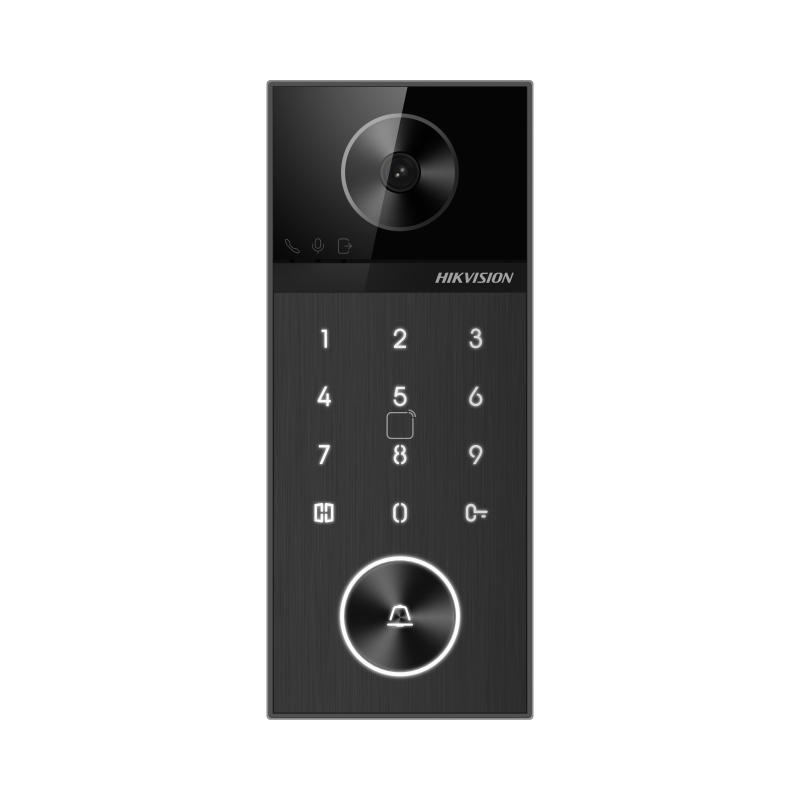

Video interfon IP Hikvision DS-KV6124-WBE1 Pro Series, 4MP cu unghi larg 150°, control 2 incuietori, PoE 802.3at, deblocare Card/PIN/Bluetooth/Hik-Connect, inregistrare si playback Hik-Connect/PC Web

Descriere

• System parameters
• Operation systemLinux
• ROM4 GB
• RAM512 MB
• ProcessorEmbeded high performance processor

• Video parameters
• Lens1
• Resolution

  Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P)

  Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)

• FOVHorizontal: 150°; Vertical: 75°
• Wide dynamic range (WDR)Support 120 dB
• Supplement lightIR light, up to 3 m
• Video compression standardH.264; H.265; MJPEG

• Audio parameters
• Audio input1 built-in omnidirectional microphone
• Audio compression standardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
• Audio output1 built-in loudspeaker
• Audio compression bitrate8~64 Kps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable
• Audio Performance50cm 80dB (Maximum: 50cm 83dB)
• Audio Sample Rate16kHz、8kHz

• Capacity
• User capacity2000
• Face capacity/
• Card capacity10000

• Network parameters
• Network protocolTCP/IP, RTSP, ipv6,onvif
• Wi-Fi2.4G
• BluetoothSupported
• 3G/4G/
• Wi-Fi ProtocolIEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
• Wi-Fi TypeWiFi 6

• Authentication
• Authentication modeCard, PIN code, Bluetooth, Hik-Connect, indoor station
• Card typeM1 Card
• Card reading frequency13.56 MHz
• Card reading distanceM1 card：2 to 2.5 cm

• Application
• Mobile APPHik-Connect
• Motion DetectionSupport
• PlaybackSupport
• Call ElevatorSupport
• Smart FeaturesSound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)

• Device interfaces
• Alarm input4, (include Exit button and Door contact input)
• Network interface1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER1
• Exit button1
• RS-4851
• USB/
• Wiegand/
• TF cardSupport TF card, up to 128 G
• Alarm output/
• Lock control2 relays, Max. 30 VDC 2 A
• Door contact input1
• Supported TF FormatFAT32;exFAT

• General
• Button1 physical button
• InstallationSurface mounting
• Indicator3
• Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
• Protective levelIP65
• Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Working humidity10% to 90% (no-condensing)
• Dimension (W × H × D)164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97")
• Battery/
• Application environmentOutdoor
• Power consumption＜ 10 W
• LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
• Power supply12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
• Material

  Front Shell and Rear Shell Material: Plastic

  Viewing Window Panel Material: Glass

• Power Supply OutputMax. 12 VDC, 1 A
