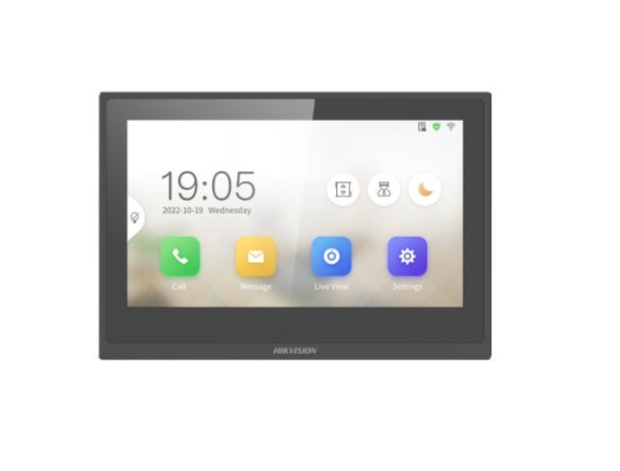

Video interfon IP, Hikvision DS-KH6351-WTE1

Descriere

• System parameters
• Operation systemLinux
• ROM32 MB
• RAM128 MB
• ProcessorEmbeded high performance processor

• Display parameters
• Screen size7-inch
• Operation methodCapacitive touch screen
• TypeColorful TFT
• Resolution1024 × 600

• Video parameters
• Lens/
• Resolution/
• FOV/
• Wide dynamic range (WDR)/
• Video compression standard/
• Focal length/

• Audio parameters
• Audio input1 built-in omnidirectional microphone
• Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio output1 built-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• Message capacity

  200 captured pictures (with TF card); 200 alarm records

  2 MB RAM (without TF card) reserved for events

• Linked network camera capacity16
• Linked indoor extensions capacity16
• Linked doorphone capacity17

• Network parameters
• Network protocolTCP/IP, SIP, RTSP
• Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/
• Zigbee/

• Device interfaces
• Alarm input8
• Network interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851 (reserved)
• USB/
• TF cardSupport TF card, up to 128 G
• Alarm output2 relays (30 VDC, 2A)
• Lock control2 relays, Max. 30 VDC 0.3 A

• General
• Button/
• InstallationSurface mounting
• Indicator/
• Weight

  Net weight: 340 g (0.7 lb)

  Gross weight: 600 g (1.3 lb)

• Protective level/
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90% (no-condensing)
• Dimension (W × H × D)180 mm × 123 mm × 21 mm (7" × 4.8" × 0.83")
• Battery/
• Application environmentIndoor
• Power consumption≤ 5 W
• LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
• MaterialAluminum alloy and ABS plastic
