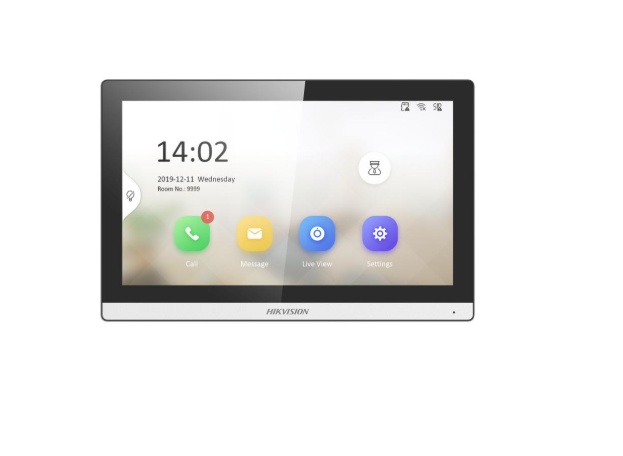

Video interfon IP, Hikvision DS-KH6350-TE1

Descriere

• System parameters
• Operation systemLinux
• ROM32 MB
• RAM128 MB
• ProcessorEmbeded high performance processor

• Display parameters
• Screen size7-inch
• Operation methodCapacitive touch screen
• TypeColorful TFT
• Resolution1024 × 600

• Video parameters
• Lens/
• Resolution/
• FOV/
• Wide dynamic range (WDR)/
• Video compression standard/
• Focal length/

• Audio parameters
• Audio input1 built-in omnidirectional microphone
• Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio output1 built-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• Message capacity200
• Notice capacity16
• Linked indoor extensions capacity16

• Network parameters
• Network protocolTCP/IP, SIP, RTSP
• Wi-Fi/
• Bluetooth/
• 3G/4G/
• Zigbee/

• Device interfaces
• Alarm input8
• Network interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-485/
• USB/
• TF cardSupport TF card, up to 128 G
• Alarm output/
• Lock control2 relays, Max. 30 VDC 0.3 A

• General
• Button/
• InstallationWall mounting, table mounting
• Indicator/
• Weight

  Net weight: 350 g (0.8 lb)

  Gross weight: 675 g (1.5 lb)

• Protective level/
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90% (no-condensing)
• Dimension (W × H × D)175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
• Battery/
• Application environmentIndoor
• Power consumption≤ 5 W
• LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
