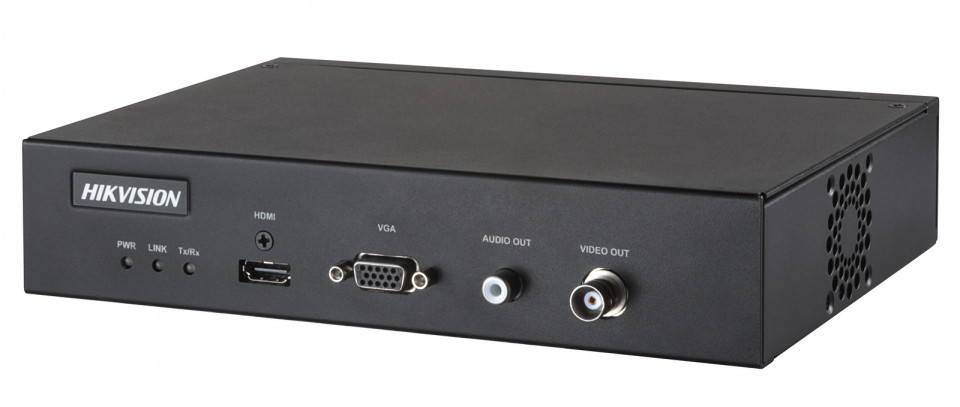

Video Decoder Hikvision 4K DS-6901UDI

Descriere

• Input/Output
• OutputHDMI × 1, VGA × 1, BNC × 1
• Output Resolution

  HDMI:

  4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz

  BNC:

  PAL: 704 × 576, NTSC: 704 × 480

• Decoding
• Decoding ResolutionUp to 24MP (only for 3 encoder tracks mode)
• Decoding Channel16-ch
• Decoding Capability24MP@30fps: 1-ch, 12MP@20fps: 2-ch, 8MP@30fps: 4-ch, 5MP@30fps: 6-ch, 3MP@30fps: 10-ch, 1080p@30fps: 16-ch,
• Split Screen1/4/6/8/9/12/16

• Interface
• Network Interface1 (10/100/1000 Mbps self-adaptive Ethernet interface)
• Two-Way Audio Out1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
• Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
• Two-Way Audio In1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
• Audio Output1
• Alarm In8
• Alarm Out8

• General
• Power Supply12 VDC
• Power Consumption≤ 15 W
• Dimensions(W × D × H)220 mm × 148 mm × 45 mm (8.66 inch × 5.83 inch × 1.77 inch)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• ≤ 1.12 kg (2.47 lb)
