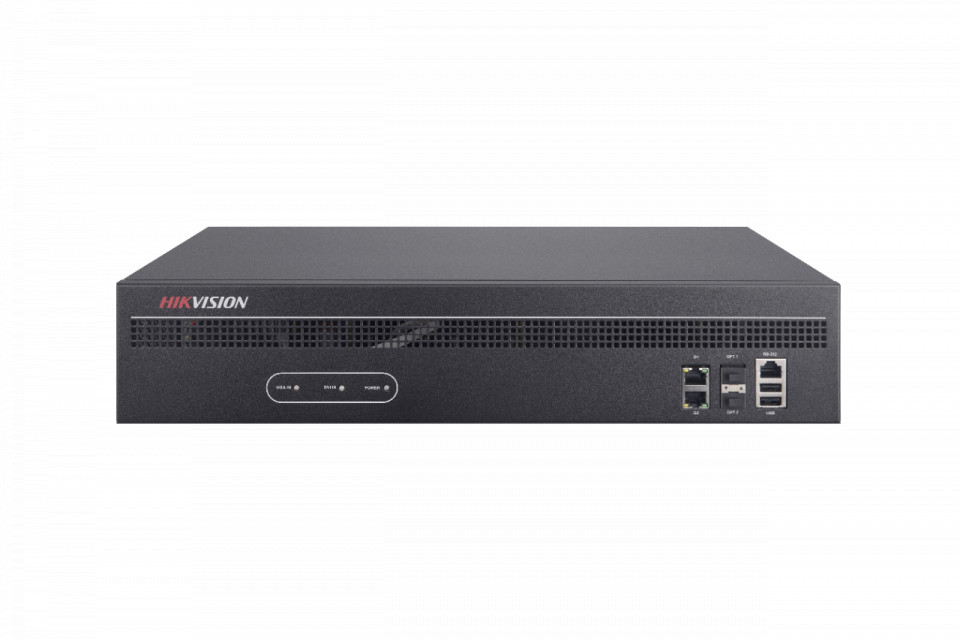

Video Decoder Hikvision 4K 16 HDMI DS-6916UDI(B)

Descriere

• Input/Output
• InputVGA, DVI-I
• Input ResolutionVGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
• OutputHDMI × 16, BNC × 8 (DB15 × 2)
• Output Resolution

  HDMI:

  4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz

  BNC:

  PAL: 704 × 576, NTSC: 704 × 480

• Decoding
• Decoding ResolutionUp to 24MP (only for 3 encoder tracks mode)
• Decoding Channel128-ch
• Decoding Capability

  24MP@30fps: 8-ch,

  12MP@20fps:16-ch,

  8MP@30fps: 32-ch,

  5MP@30fps: 48-ch,

  3MP@30fps: 80-ch,

  1080p@30fps/3 Mbps: 128-ch

• Split Screen1/4/6/8/9/12/16/25/36

• Interface
• Network Interface

  RJ45 interface × 2, 10/100/1000 Mbps adaptive

  Optic interface × 2, 100 base-FX/1000 base-X

  An RJ45 interface and an optic interface form a combo.

• Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
• Audio Output16 (DB15 × 2)
• Two-Way Audio Out1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
• Alarm In8
• Two-Way Audio In1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
• Alarm Out8

• General
• Power Supply100 to 240 VAC
• Power Consumption≤ 108 W
• Dimensions(W × D × H)440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• ≤ 6.4 kg (14.11 lb)
