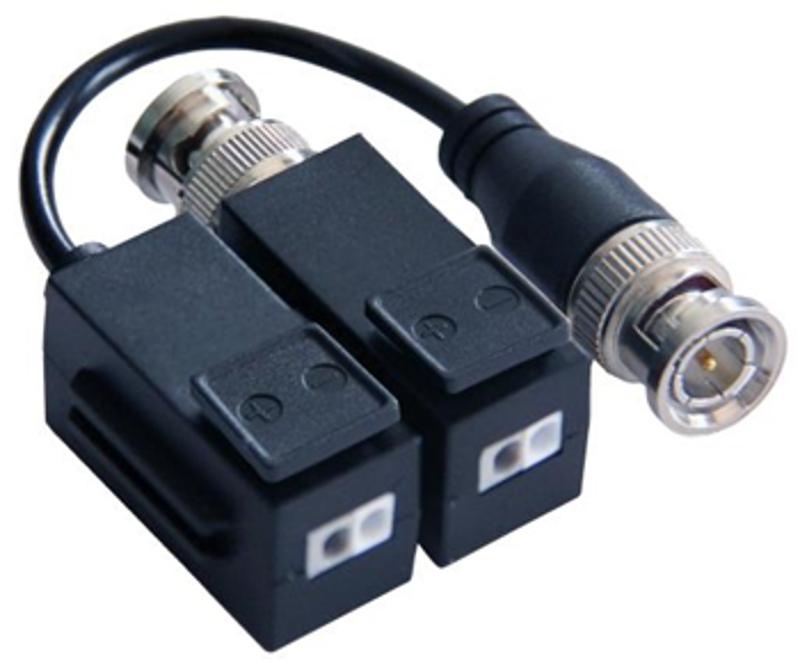

Video balun pasiv Hikvision DS-1H18-A

Descriere

• Properties
• Transmission Signal1 channel
• Transmission DistanceMax 350m
• Category TypeUTP CAT 5E/ 6

• Video Transmission Properties and Port
• Coaxial Video ConnectorBNC-M
• Twisted-pair Video ConnectorTool-less push-pin terminal block
• Compatible FormatHD-TVI/TVI/AHD/CVBS
• Resolution720P/960P/1080P/3MP/4MP/5MP/8MP
• Ant-interference>60dB

• Protection
• ESD

  Contact discharge electricity level3

  air discharge electricity level3

  Per: IEC61000-4-2

• Coaxial Cable Connector2KV(common-code) Per:IEC61000-4-5
• UTP Cable Connector

  2KV(different-code),

  2KV(common-code)

  Per:IEC61000-4-5

• Impedance
• BNC Male75 ohms
• UTP Cable100 ohms

• Physical Properties
• ShellABS engineering plastic
• ColorBlack
• Weight39 g

• Stability
• MTBF>10000 h

• Environmental
• Operating Temperature-20º ~55º C
• Storage Temperature-40º ~ 150º C
• Humidity0~95% (non-condensing)
