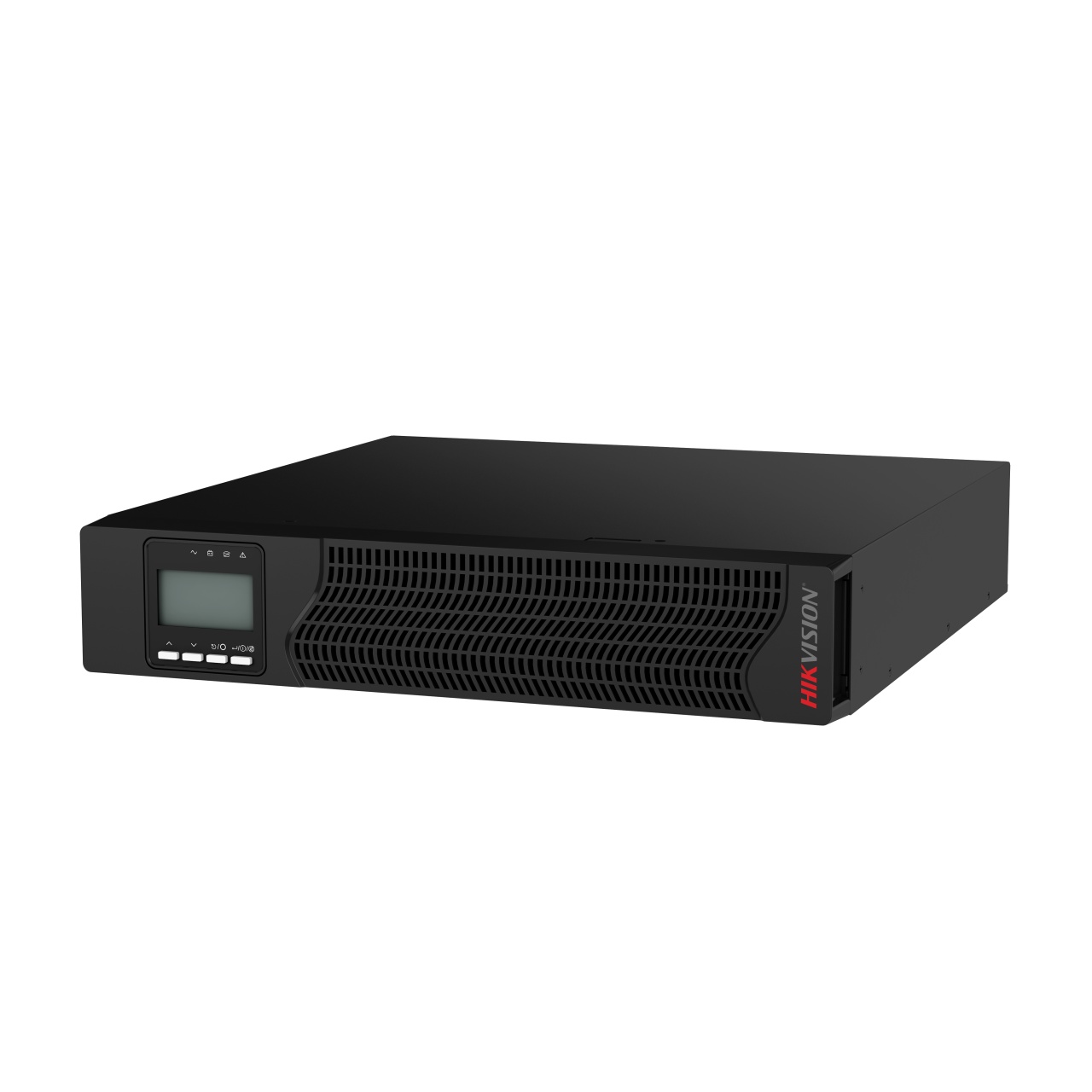

UPS online Hikvision DS-UPS06K-R/TJL 6000VA/6000W, monofazat, dubla conversie, unda sinusoidala pura, PFC ≥0.99, LCD display, mod ECO, rack/tower, baterie VRLA, runtime extensibil, protectii multiple

Descriere

• UPS Capacity6000 VA / 6000 W

• Nominal Voltage208/220/230/240Vac
• PhaseSingle Phase
• Input Voltage Range110~300Vac (110~300Vac@50% load/176~300Vac@100% load)
• Input Frequency40~70Hz (50/60Hz Auto-Sensing)
• Power factor≥0.99

• Output Voltage208/220/230/240Vac
• Crest factor3:1
• Power factor1
• Output Sockets

  IEC version: Connecting terminal +IEC socket

  US version: Connecting terminal+US socket panel

• Output FrequencyOnline mode：±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional) Battery mode: (50/60±0.1%)Hz
• Harmonic distortion (THDv)

  ≤1% Linear load

  ≤3% Non linear load

• Transfer TimeAC mode to Bat.mode: 0ms Inverter to Bypass: 0ms
• Output WaveformPure Sinewave

• Battery TypeValve Regulated Lead Acid (VRLA)
• DC System Voltage (VDC)192/240Vdc (Settable)
• Charging Current (Max.)12A
• Expandable RuntimeYes, External battery pack: DS-UPSB09192A-R/TJ, or DS-UPSB09240A-R/TJ
• Typical Backup TimeView Runtime Graph

• AlarmBattery mode/Battery low voltage/Overload/Fault
• LCD displayInput voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time

• AC ModeUp to 95%
• Battery ModeUp to 93%

• Operating Temperature0℃~40℃
• Storage Temperature-25℃~55℃
• Humidity Range0~95% (Non - condensing)
• Altitude0~3000m (1000~3000m derating required)
• Noise Level≤50dB

• Dimension W x D x H (mm)440×621.5×86.5
• Net weight (kg)15.5

• SafetyCE-LVD IEC/EN 62040-1, IEC/EN 62477-1
• EMCCE-EMC IEC/EN 62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11, IEC61000-2-2)
