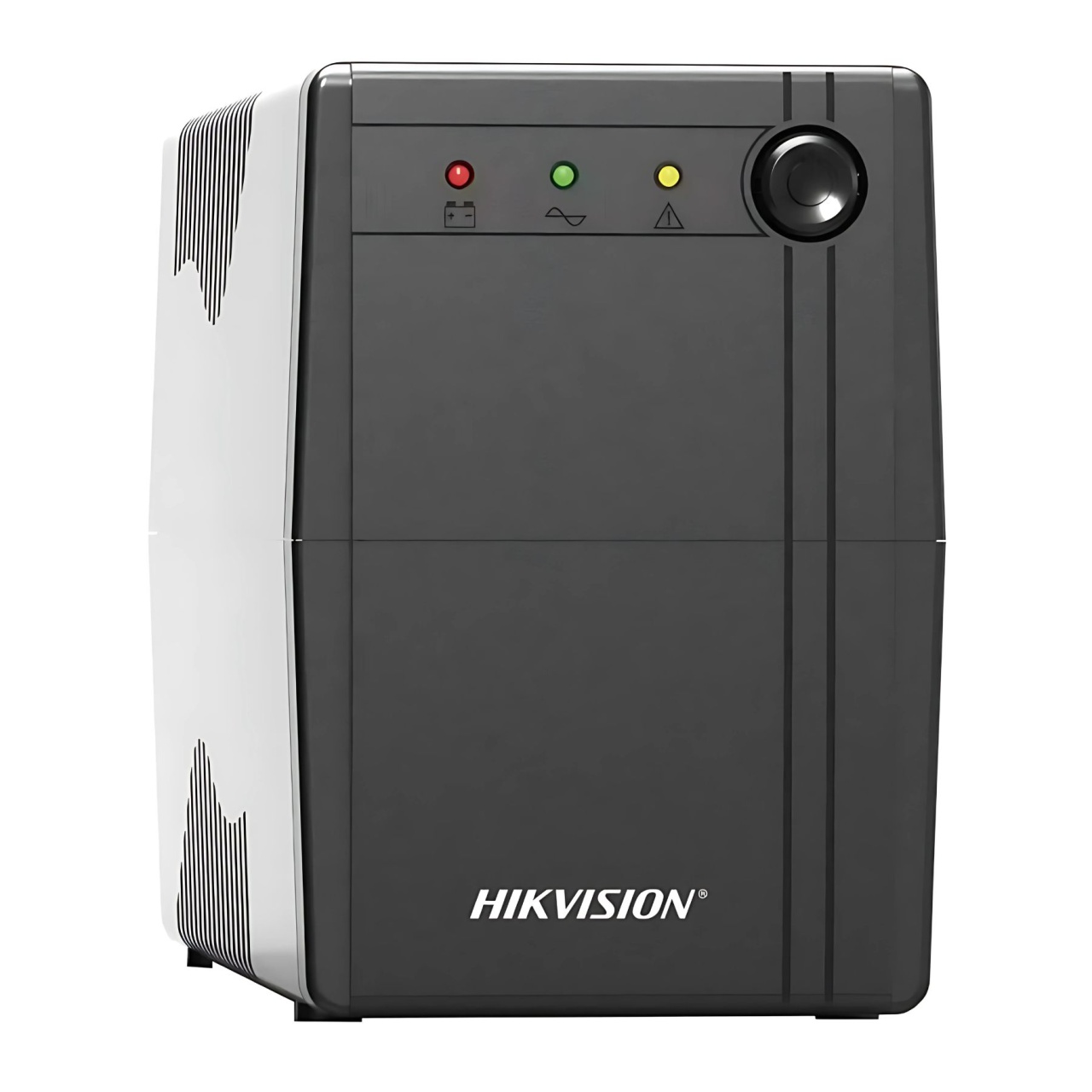

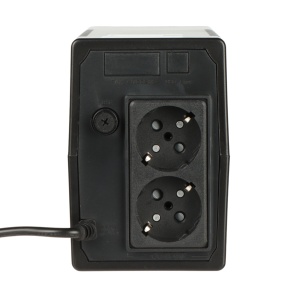

UPS de back‑up HikVision DS‑UPS1000, AVR integrat pentru stabilizare tensiune, incarcare super rapida, gama larga de tensiune intrare, protectie la suprasarcina, scurt‑circuit si supratensiuni, design robust pentru alimentare continua in sisteme critice

Descriere

• Power
• UPS Capacity1000 VA / 600 W

• Input
• Input Voltage Range140 VAC to 290 VAC; 85 VAC to 150 VAC
• Input Frequency50/60 Hz self-adaptive

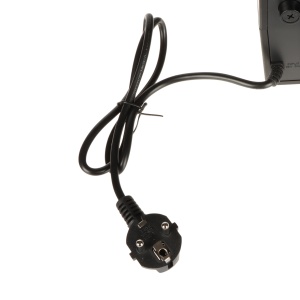

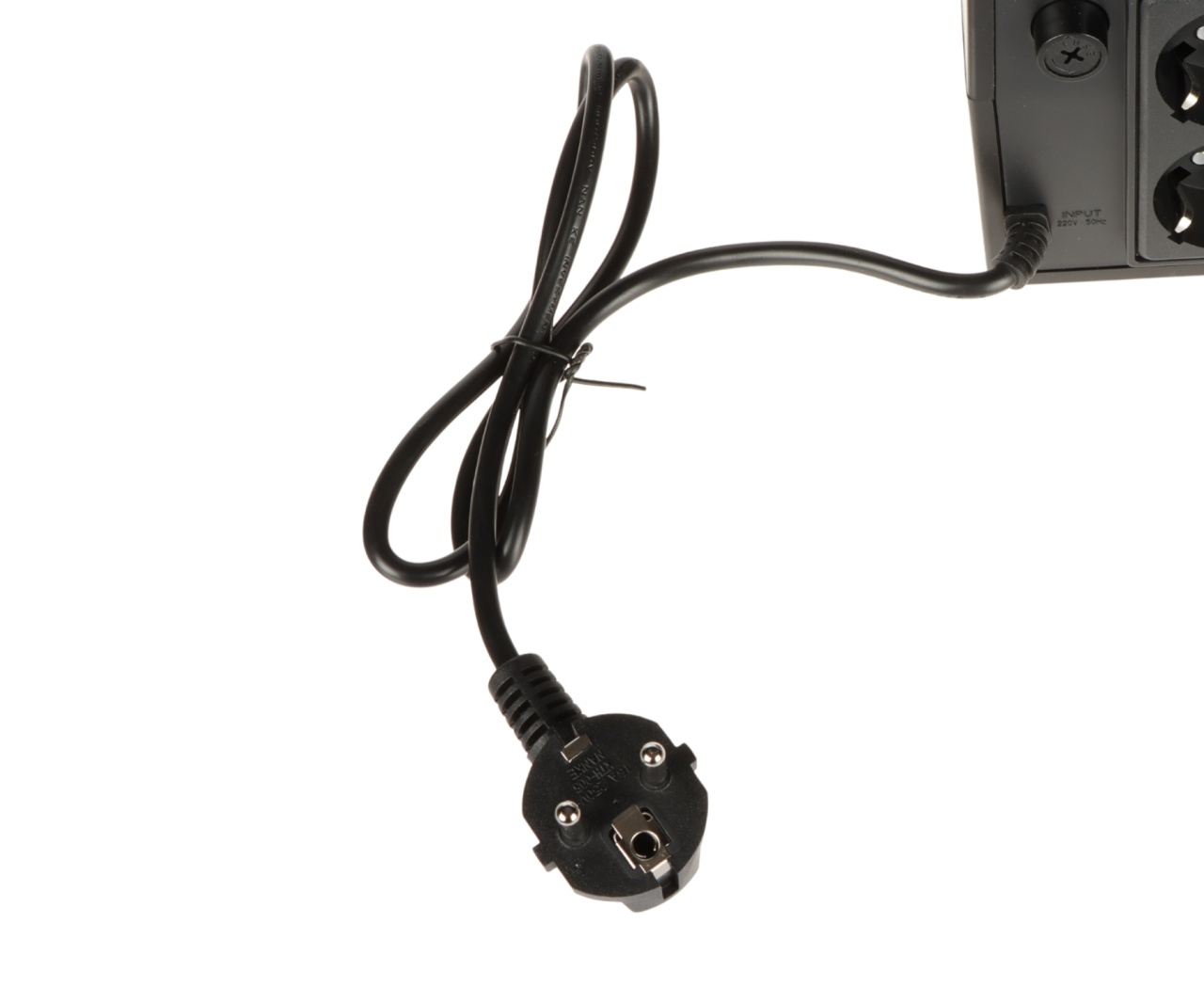

• Plug TypeUK TYPE G;Type B (NEMA 5-15);Schuko

• Output
• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Output Voltage Range210 VAC to 235 VAC;110 VAC to 125 VAC
• Transfer Time≤ 10 ms
• WaveformPWM

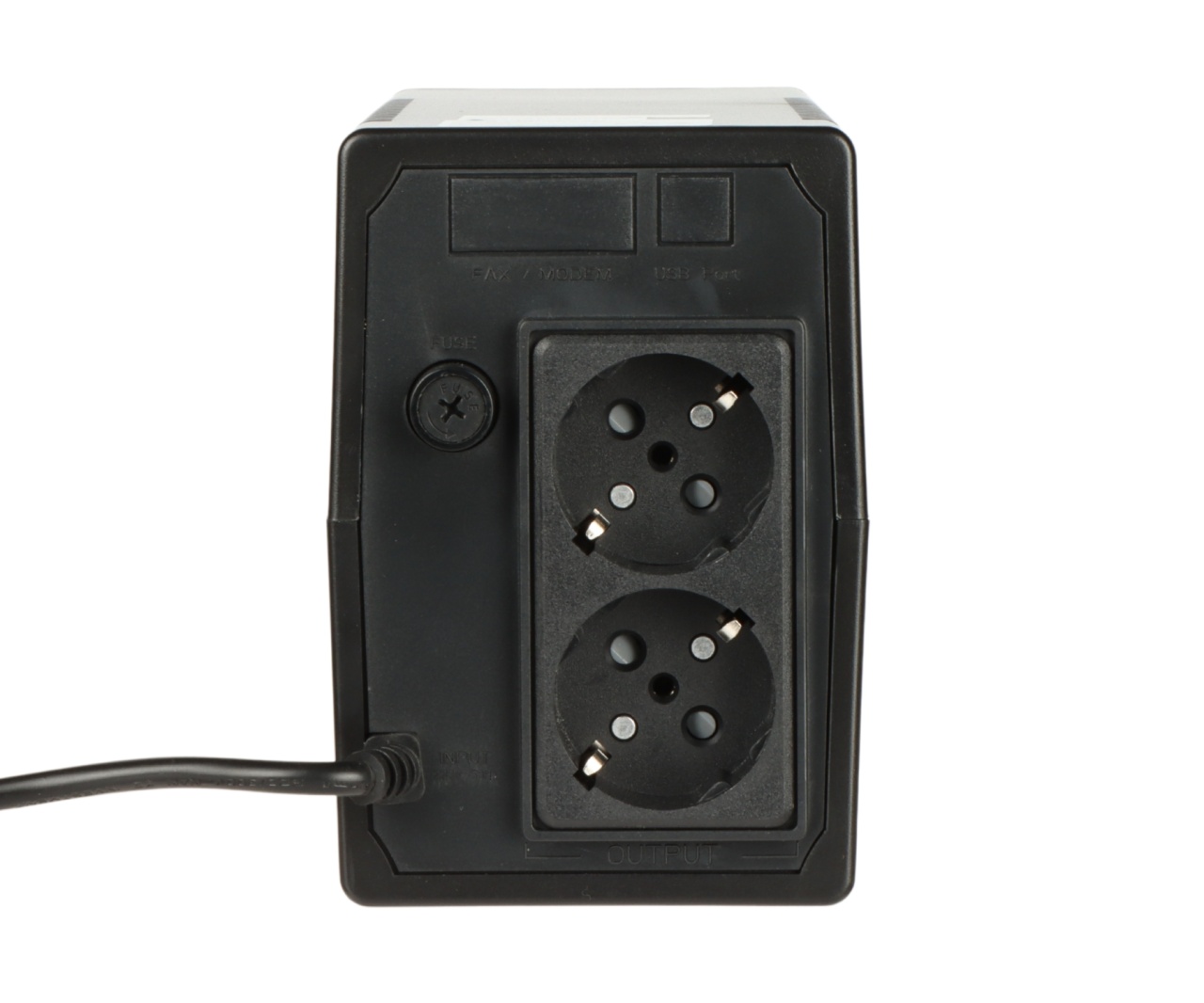

• Outlet TypeUniversal
• Outlet Number2

• Battery
• Battery Type12 V/9 Ah, lead-acid battery
• Recharge Time4-6 hours recover to 90% capacity
• Typical Backup Time

  Run time at 60w: 60 min

  Run time at 150w: 15 min

  Run time at 300w: 2 min

• Interface
• Communicate PortsNo

• Protection
• Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

• Indicator
• Display

  LED indicator

  Working Mode (AC Mode): Solid green

  Charging Mode (DC Mode): Solid red

  Overloading Mode: Flashing yellow

• Alarm

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

• General
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
• WeightApprox. 5.4 kg (11.9 lb)
