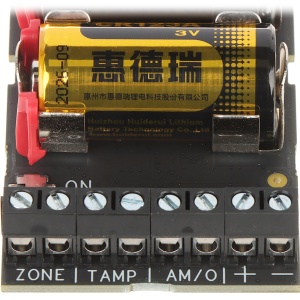

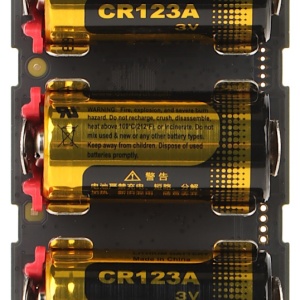

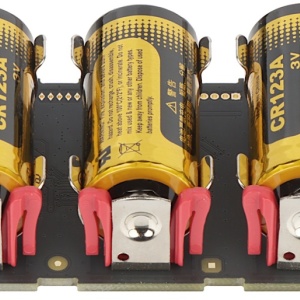

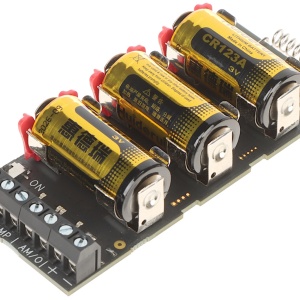

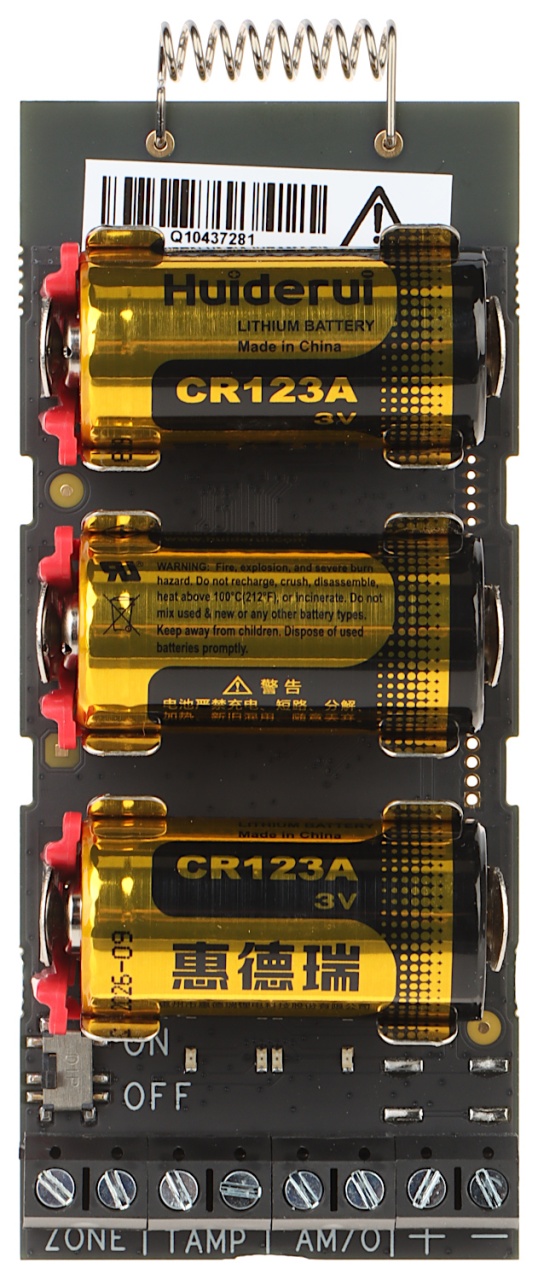

Transmitator wireless Hikvision DS-PM1-I1-WE, AX PRO, 868 MHz, 1 intrare zona/tamper, 1 iesire PGM, iesire alimentare 3.3V, detectie miscare prin accelerometru, comunicare bidirectionala, criptare AES-128

Descriere

• Hardware Features
• Serial Port1

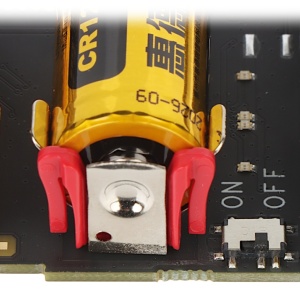

• Power Switch1
• Alarm Input1 Alarm, 1 Tamper
• Alarm Output1 PGM, AM/Output
• 3.3v Output1, up to 10mA

• Electrical Characteristics
• Power Supply3 CR123
• Operation Humidity10%~90%
• Operation Temperature–10℃ ~ 55℃
• Power Consumption

  Quiescent current: 40.29 uA

  Max current: 47.85mA

  Voltage: 3 VDC

• Battery Life SpanMore than 5 years (report alarm 50 times per day)

• Wireless Transmission
• RF Frequency868MHz
• RF MethodTwo-way communication
• RF Modulation2GFSK
• RF Distance1700m

• Display
• Indicator3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red）

• General
• Installation MethodPut inside Wireless Ready Detector
• Dimension(WxHxD)102*41*20mm
• 35g(Without Battery), 90g(With Battery)
