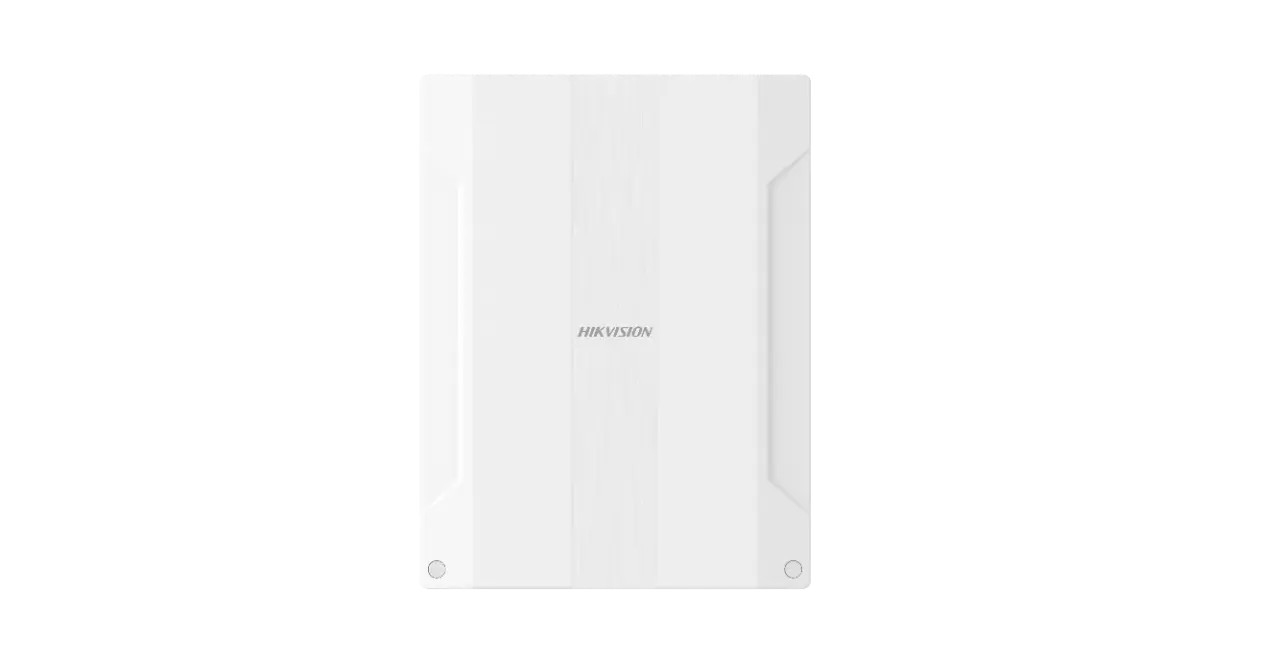

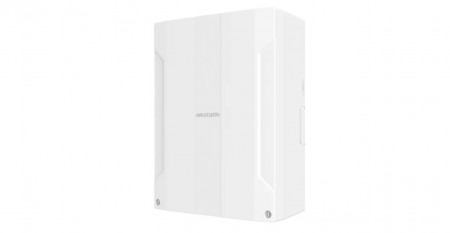

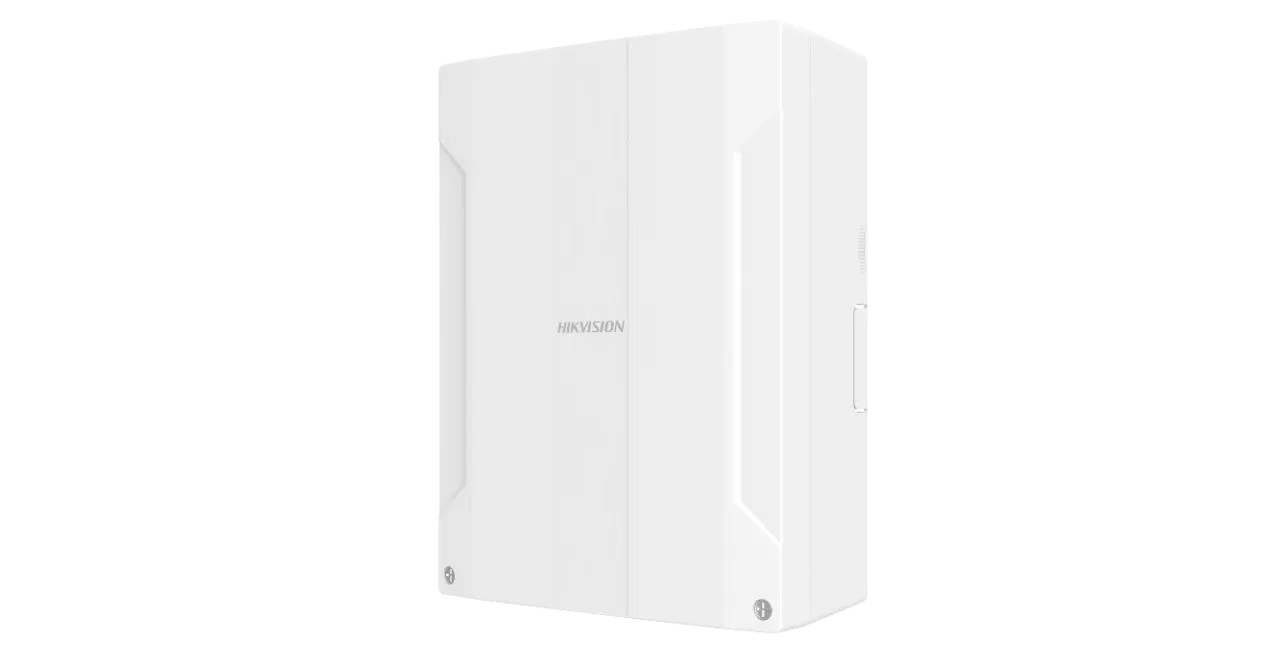

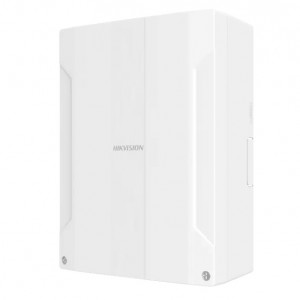

Transmitator HikVision IO 868MHz LED pentru centrala AX PRO DS-PM1-I16O2-WE

Descriere

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -10°C si +40°C si cu umiditate de pana la 90%.

• Software features
• End of Line Resistance

  1k 2.2k 4.7k 8.2k

  NO/NC

• Hardware features
• Serial port1
• Battery port1, 12 VDC input
• Tamper-ProofFront and rear
• Power switch1
• Alarm input16
• Alarm output2
• Power Output2 (12v, total1A)

• Electrical characteristics
• Battery type

  Compatible with 12v 7 Ah

  150 × 64 × 94 mm

• Power supply100-240VAC，30w
• Operation humidity10%~90%
• Operation temperature–10 ~ 40°C
• Power consumption

  Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)

  220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)

• Battery life spanUp to 36 hours

• Wireless transmission
• RF frequency868MHz
• RF methodTwo-way communication
• RF modulation2GFSK
• RF distance1100m

• Display
• Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）

• General
• Installation methodWall Mounting
• Dimension(WxHxD)261*199*86.4mm
• Shell materialPlastic
• ColorWhite
• Weight

  975 g (without battery)

  3024g (with battery)
