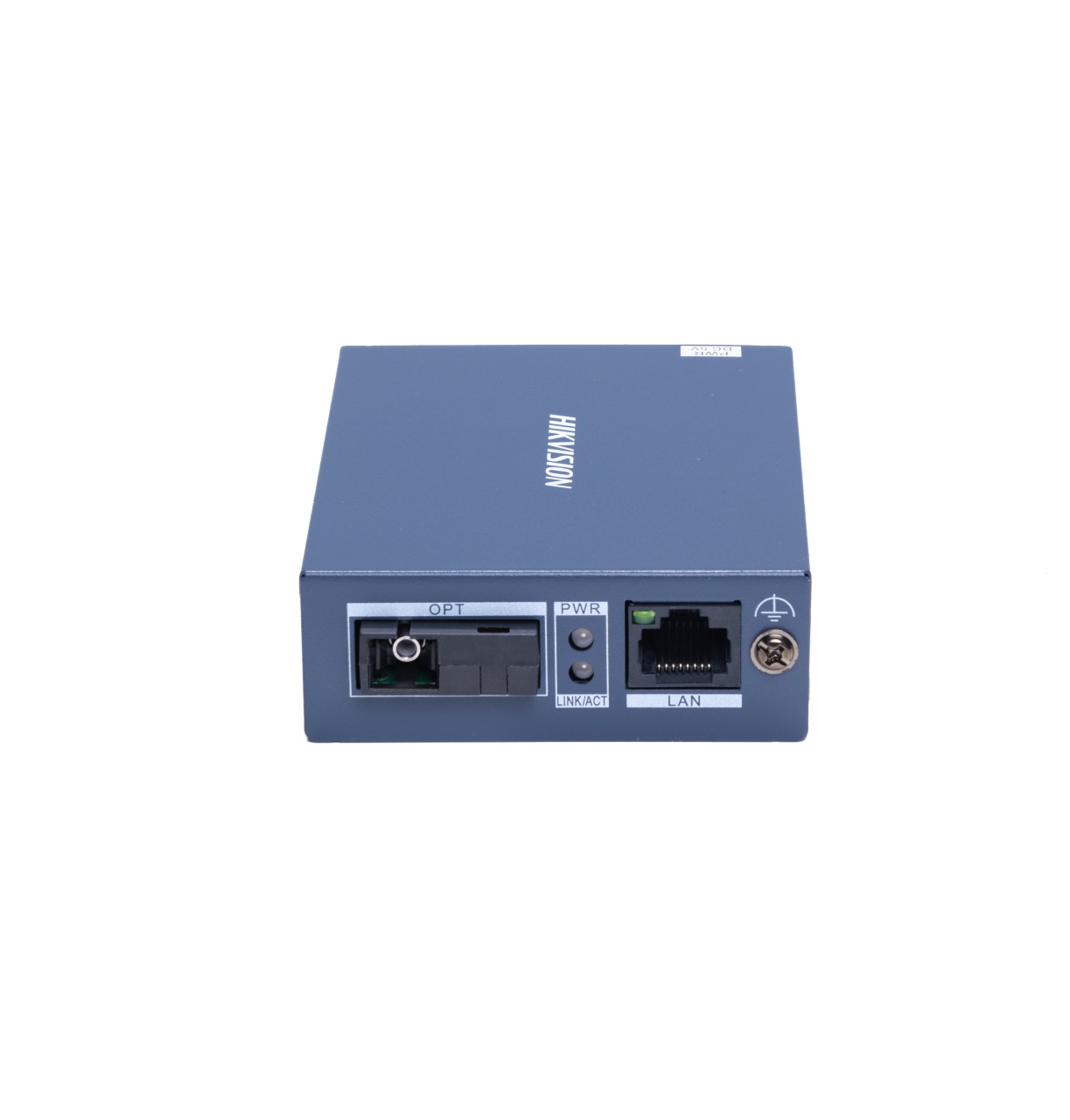

Transceiver HikVision DS‑3D501T‑3, 1×RJ45 Gigabit + 1×SC Gigabit single‑mode, WDM bidirecțional, plug‑and‑play, transmisie până la 3km, protecție 4 kV, metal
105,94 RON
(TVA inclus)
87,55 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
General
- ShellMetal
- Net Weight0.13 kg (0.28 lb)
- Gross Weight0.23 kg (0.51 lb)
- Dimensions (W × H × D)71.6 mm × 26.1 mm × 94.1 mm (2.81'' × 1.03'' × 3.70'')
- Operating Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply5VDC, 0.6A
- Max. Power Consumption3 W
- Power Consumption in Idle2 W
- Installation ModeDesk-Mounted
- Surge Protection4 kV
Network Parameters
- Ports1 x 10/100/1000 Mbps RJ45 port and 1 x 1000 Mbps SC fiber optical port
- Switching Capacity4 Gbps
- Packet Forwarding Rate2.98 Mpps
Optical Module Parameters
- Optical InterfaceSC
- Fiber TypeSingle-mode bidirectional fiber
- Transmission Distance3 km
- WavelengthTx1310 nm/Rx1550 nm
- Transmit Power-12 ~ -4 dBm
- Receiver Sensitivity≤ -22 dB
Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition))
- ChemistryReach (Regulation (EC) No.1907/2006)
Detalii
SKU
DS-3D501T-3
EAN
8678
Categorii
Brand
Producator
HikVision
Numar porturi
2
