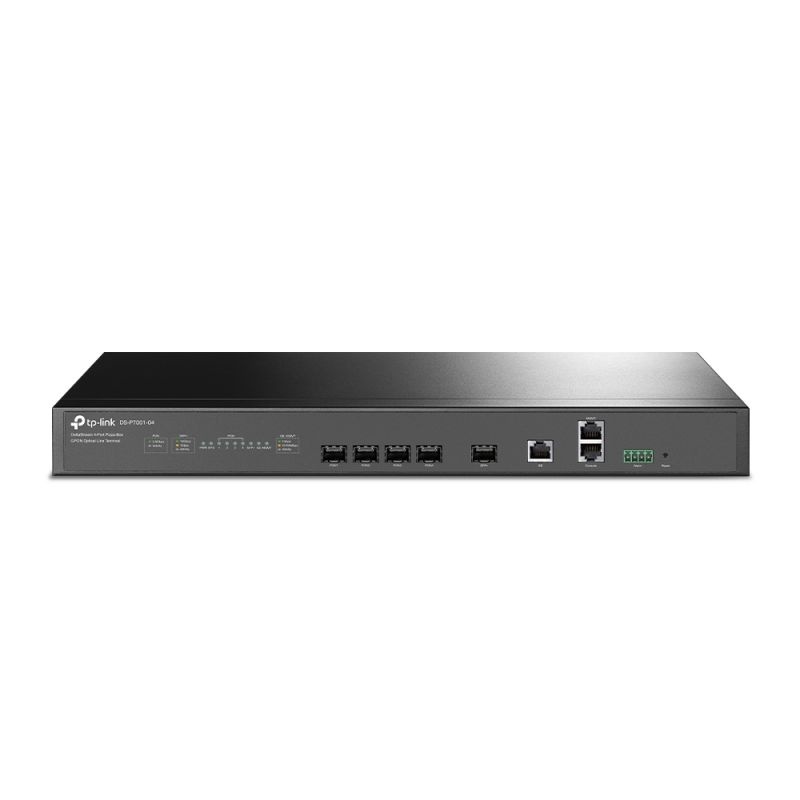

Terminal optic OLT GPON TP-Link DeltaStream DS-P7001-04, 4 porturi GPON split 1:128, capacitate 512 ONT, 1 port 10G SFP+, 1 port Gigabit Uplink, surse redundante AC+DC, L2/L2+, Static Routing, management DPMS
5.639,52 RON
(TVA inclus)
4.660,76 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
|
HARDWARE FEATURES |
|
|---|---|
| Interface | • 4× 2.5G PON Ports • 1× 10 Gbps SFP+ Uplink Port • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved) |
| Button | Reset Button |
| Power Supply | Dual Power Supplies • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V |
| Max. Power Consumption | Max. 58W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180× 44 mm) |
|
SOFTWARE FEATURES |
|
|---|---|
| Security | • ACL • 802.1x Authentication • ARP Inspection • IP Source Guard |
| DHCP | • DHCP Server • DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | • Rouge ONU Detection and Isolation • Uplink and Downlink Data Encryption |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | • IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP |
| Routing | Static Routing |
| Mulitcast | • IGMP Snooping • MLD Snooping |
| Centralized Management | • Large-Scale Devices Management • OLT Batch Configure, Upgrade, Reboot • Multi-Site Management • Intelligent Network Monitoring • Real-time Network Overview |
|
GPON port attribute |
|
|---|---|
| Max. Splitting Ratio | 1:128 |
| Transmission distance | 20km |
| Data rate | • Downstream: 2.5 Gbps • Upstream: 1.25 Gbps |
| Wave Length | • Tx: 1490 nm • Rx: 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Tx power | Class C+ |
|
OTHERS |
|
|---|---|
| Certification | CE,FCC |
| Package Content | • OLT Device • Power Cord and Console Cable • Installation Guide • Mouting Brackets, Screws and Rubber Feet |
| Environment | • Operating Temperature: 0°C~50°C (32°F~122°F) • Storage Temperature: -40℃~70℃(-40°F ~158°F) |
