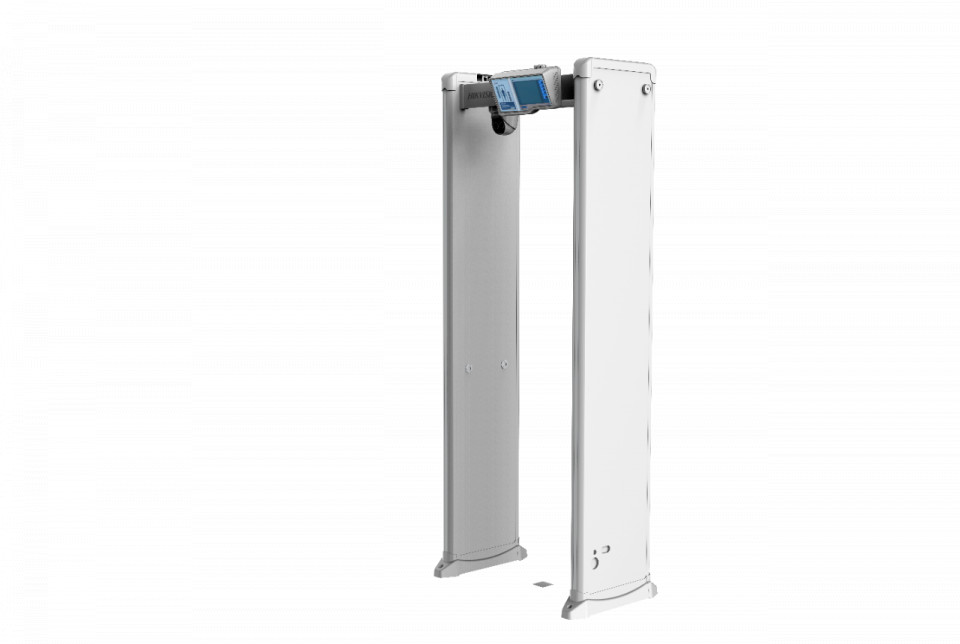

Terminal control acces HikVision cu detectie a temperaturii corporale si a metalelor ISD-SMG318LT-F

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Bi-spectrum

Este functia care permite vizualizarea in acelasi timp a imaginii normale cat si a celei din spectrul termic pentru o usoara identificare a persoanelor vizate .

Alegerea produselor MIFARE inseamna alegerea unei solutii care este deja disponibila in toate ramurile infrastructurii ,oferite de operatorii de servicii datorita costurilor reduse , flexibilitatii si controlul sporit asupra sistemului .Produsele MIFARE pot fi gestionate si implementate prin intermediul dispozitivelor mobile compatibile NFC.

Face detection

Prin aplicarea tehnologiei de detectare a fetei, camerele IP, pot detecta precis trasaturile faciale umane, le pot analiza si declansa alarma in cazul in care este setata una.

• Dimension Parameters
• Appearance And Dimension

  Detector dimension(without dome camera):2200 x 850 x 480mm (H x W xD)

  Dome camera dimension :138.3 mm × 138.3 mm × 123.1 mm(H x W x D)

  Package dimension 2270 x 700 x230mm(H x W x D)

• Performance Parameters
• Power Supply110~240VAC，50-60Hz

• Communication Protocol
• Network Communication

  IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NT

  P,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour

• General Standard
• Working Temperature

  Speed dome: 5℃ to 40℃, ＜95% RH

  Walk-through detector: -20℃ to 85℃, 99%, RH

• Power Consumption<25W
• Protection Level

  Dome camera: IP66

  Walk-through detector: IP53

• 50Kg

• Thermal Imaging
• SensorVanadium oxide uncooled sensor
• Max. Resolution160× 120
• Pixel Interval17μm
• Response Waveband8 to 14μm
• Lens (Focal Length)3mm
• Field Of View50°×37.2°
• Min. Focusing Distance0.3m
• Pseudo Color15, white heat, black heat,fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, and dark blue

• Visible Light
• Sensor4 MP 1/2.7" Progressive Scan CMOS
• Resolution2688×1520@25fps
• Min. Illuminance0.0018Lux @(F1.6,AGC ON) ,0 Lux with IR
• Focal Length4mm
• Field Angle84.0°×44.8°
• WDR Range120dB
• IR DistanceMax. 15 m

• Temperature Measurement
• Temperature Exception DetectionExpert mode: 10 points, 10 frame, 21 rules on each line
• Body Temperature MeasurementAI face detection, multi-target detection
• Measurement Range30 to 45℃
• Temperature AlarmAlarm triggered when the temperature is over the threshold
• Measurement Accuracy

  No black body:±0.5℃

  With black body: ±0.3℃

• Compression
• Video CompressionH.265/H.264/MJPEG
• H265Main Profile
• H264Baseline Profile / Main Profile / High Profile
• Video Bit Rate:32 Kbps to 8Mbps
• Video StandardG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate::64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
