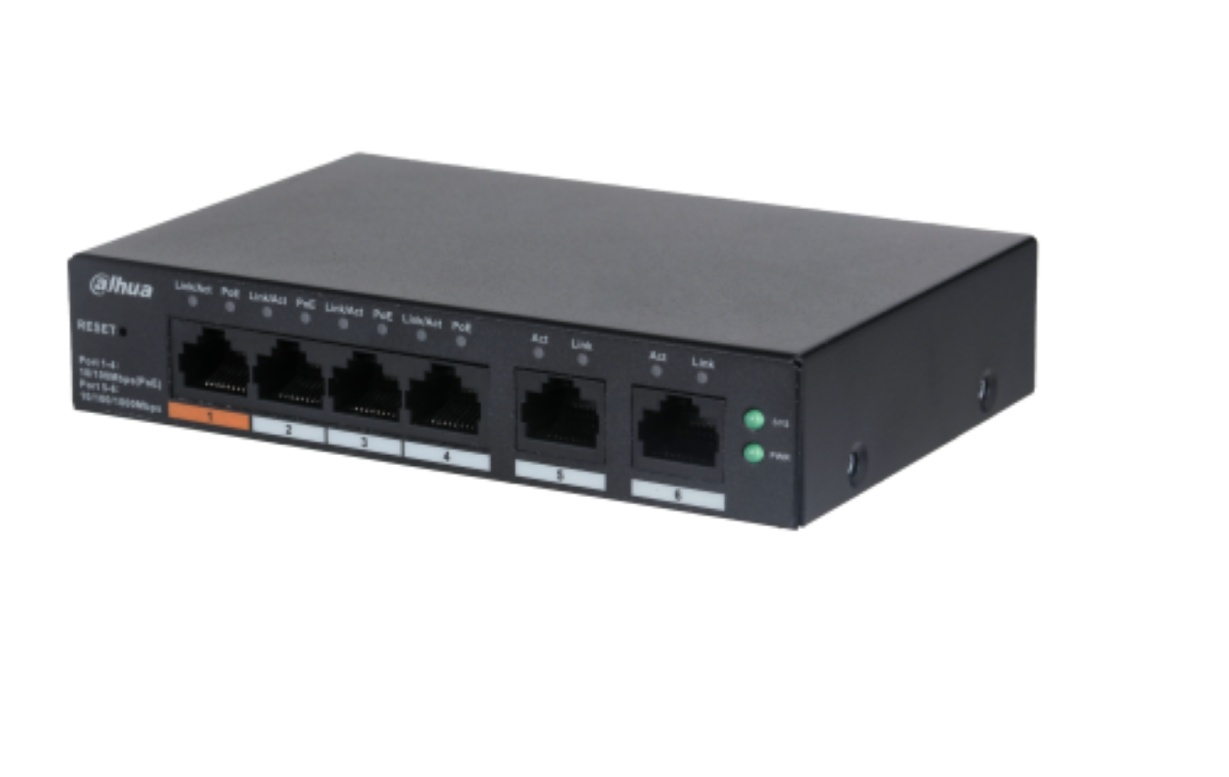

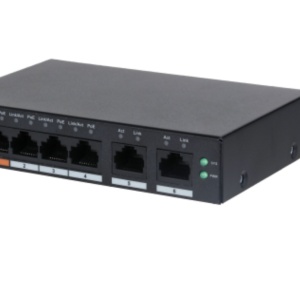

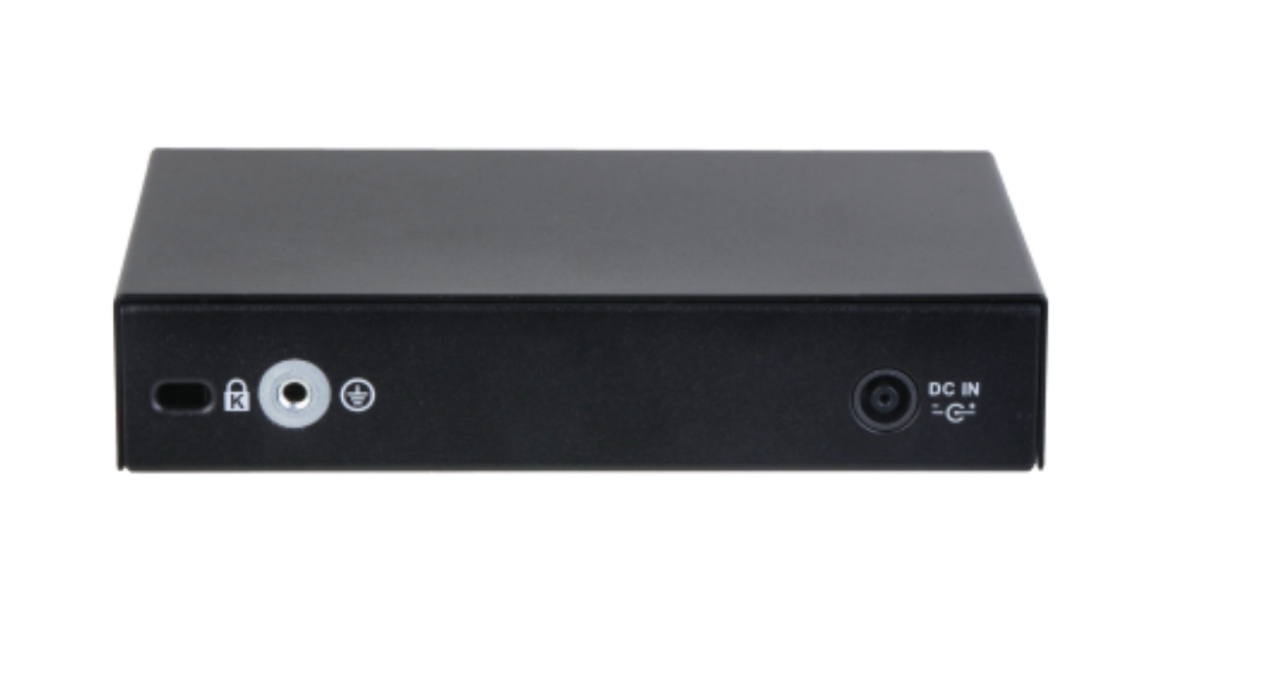

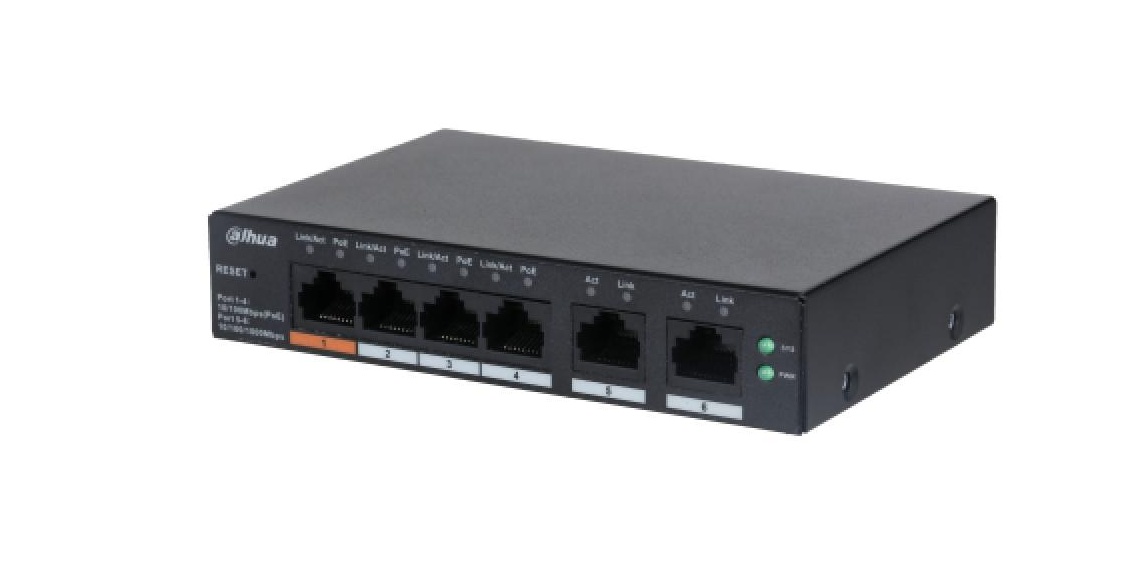

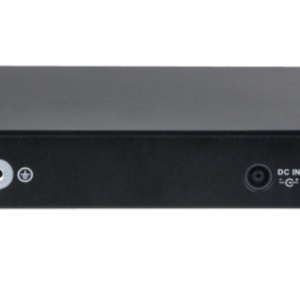

Switch RJ-45 10/100 Mbps (PoE), DAHUA 6 port, CS4006-4ET-60
Descriere
Specificatii
Data transmission
Jumbo frames support
Yes
MAC address table
8000 entries
Jumbo frames
9216
Packet buffer memory
4 MB
Switching capacity
4.8 Gbit/s
Forwarding rate
3.57 Mpps
Features
VLAN support
Yes
Product colour
Black
Mean time between failures (MTBF)
2039105 h
Networking standards
IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
LED indicators
Uplink
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
VLAN support
Yes
Power over Ethernet (PoE)
Yes
Number of VLANs
32
10G support
No
Networking standards
IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Other features
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Performance
Mean time between failures (MTBF)
2039105 h
Power
Power source
AC
Power consumption (max)
65 W
Power over Ethernet (PoE)
Yes
Power supply included
Yes
Security
MAC address table
8000 entries
DHCP features
DHCP client
Weight & dimensions
Weight
280 g
Width
130 mm
Depth
90 mm
Height
26 mm
Design
LED indicators
Uplink
Housing material
Metal
Wall mountable
Yes
Product colour
Black
Rack mounting
No
Management features
Web-based management
Yes
Switch type
Managed
Switch layer
L2
Operational conditions
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-10 - 55 °C
Packaging data
Package weight
920 g
Package depth
265 mm
Package width
238 mm
Package height
76 mm
Ports & interfaces
Power over Ethernet (PoE) ports quantity
4
Gigabit Ethernet (copper) ports quantity
2
Basic switching RJ-45 Ethernet ports quantity
6
Fast Ethernet (copper) ports quantity
4
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
60 W
Ungrouped
Installed SFP+ modules quantity
0
