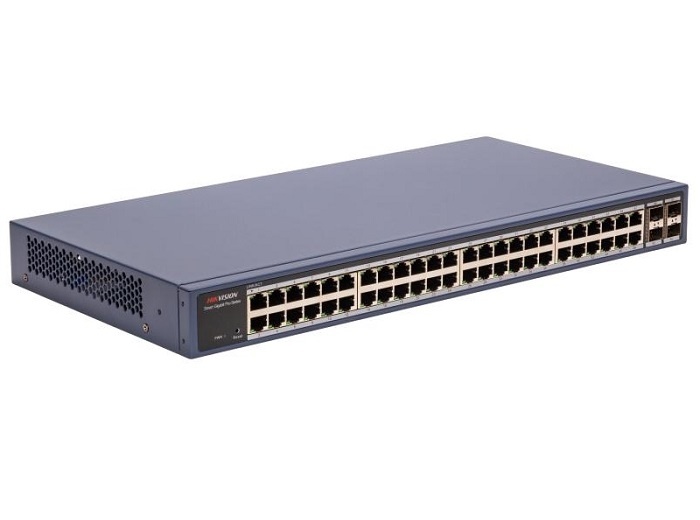

Switch rețea smart managed 52 porturi HikVision DS-3E1552-SI-48T4F, 48x RJ45 Gigabit și 4x SFP, VLAN, STP/RSTP/ERPS, detectare cablu, SNMP, QoS, DHCP snooping, protecție supratensiune 6kV
Descriere
- General
- ShellMetal material
- Net Weight2.665 kg (5.873 lb)
- Gross Weight3.564 kg (7.857 lb)
- Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
- Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply
100 to 240 V AC, 50/60 Hz, Max. 2 A
- Installation ModeRack (equipped with mounting ears)
- Max. Power Consumption40 W
- Power Consumption in Idle20 W
- Surge Protection6 kV
- Network Parameters
- Ports48 × Gigabit RJ45 port,4 × Gigabit fiber optical port
- MAC Address Table16 K
- Switching Capacity104 Gbps
- Packet Forwarding Rate77.38 Mpps
- Internal Cache12 Mbits
- Software Function
- Port Isolation
Ports 1 to 52: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation groups.
- QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP, WRR priority schedule mode.
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
Support G.8032 ERPS.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
- Port Rate-LimitingPort rate-limiting is used for port bandwidth adjustment to prevent network congestion.
- Storm Control
Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.
Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
- DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
- ACL
Support ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type.
Support ACL application on ports.
Support IPv4 ACL and MAC ACL configurations.
Support inbound ACLs.
- IPSG
IPSG can control the security of port access device.
Support port, MAC, IP binding.
Support 256 security entries.
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
