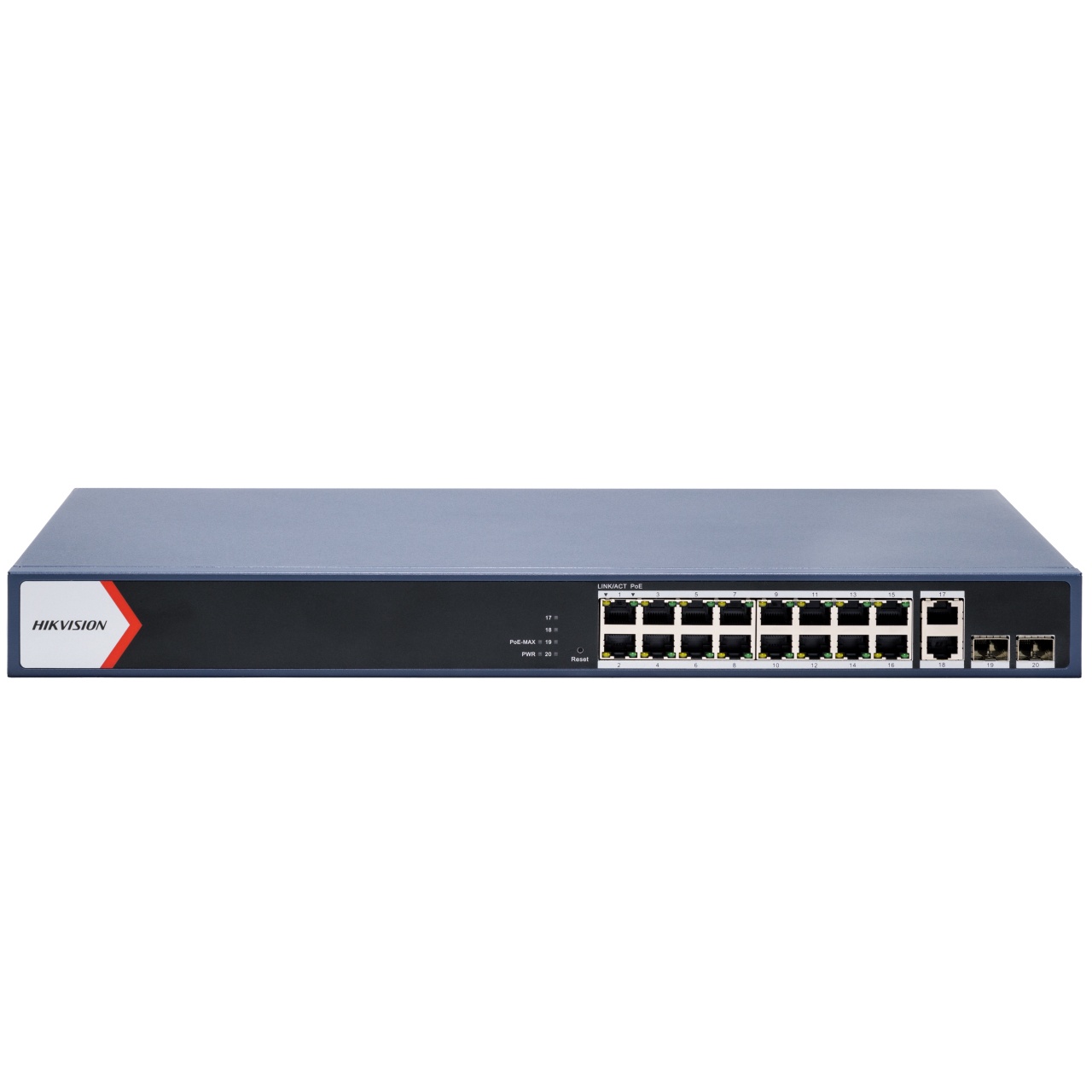

Switch retea PoE Smart Managed Gigabit HikVision DS-3E1520P-EI/M 16 porturi PoE, 2 porturi RJ45 uplink, 2 porturi SFP, buget 125W, transmisie 300m, management cloud Hik-Partner Pro, protectie supratensiune 6kV
Descriere
- General
- ShellMetal material
- Net Weight3.1 kg (6.8 lb)
- Gross Weight2.4 kg (5.3 lb)
- Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
- Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100-240 VAC, 50/60 Hz, Max. 2.5 A
- Max. Power Consumption150 W
- Power Consumption in Idle20 W
- Surge Protection6 kV
- Installation ModeDesk-Mounted,Rack (equipped with mounting ears)
- Network Parameters
- Ports16 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
- MAC Address Table16 K
- Switching Capacity68 Gbps
- Packet Forwarding Rate50.59 Mpps
- Internal Cache8.4 Mbits
- Software Function
- Long Range
Ports 1 to 16: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Port Isolation
Ports 1 to 20: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 16: Auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation group(s).
- QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP and WRR priority scheduling modes.
Support DSCP-based QoS policy.
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 1024 VLAN.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
- DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
- DDM (Digital Diagnostic Monitoring)Support real-time monitoring of key parameters in optical modules, such as operating temperature, operating voltage, operating current, and Rx and Tx optical power.
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 16
- Max. Port Power30 W
- PoE Power Budget125 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
