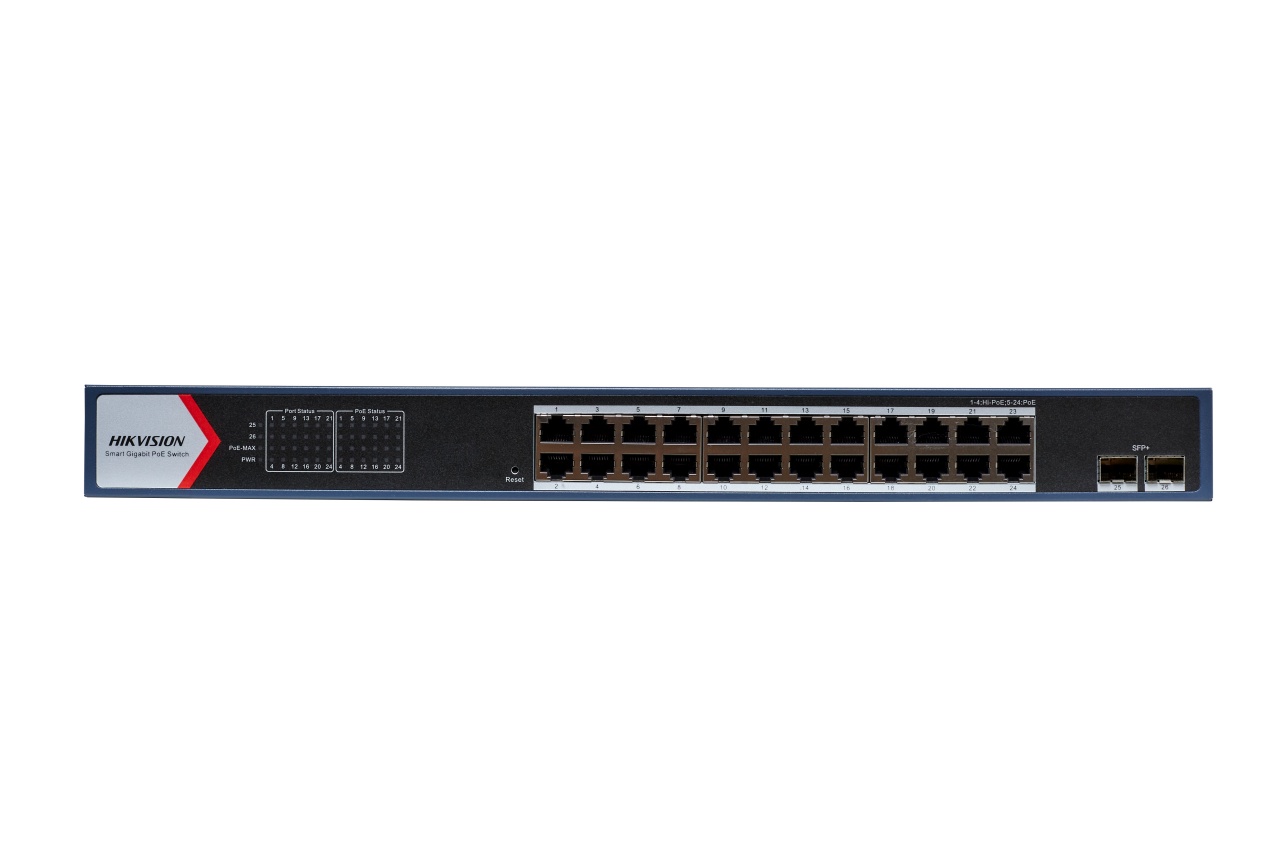

Switch rețea PoE smart managed 26 porturi HikVision DS-3E1726HP-SI-24P2X, 24x Gigabit PoE 370W și 2x 10G SFP+, economisire energie EEE, VLAN, STP/RSTP/ERPS, SNMP, QoS, protecție supratensiune 6kV
Descriere
- General
- ShellMetal material
- Net Weight3.12 kg (6.89 lb)
- Gross Weight3.45 kg (7.61 lb)
- Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
- Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100~240 VAC, 50/60 Hz, Max. 6.3 A
- Max. Power Consumption400 W
- Power Consumption in Idle10 W
- Surge Protection6 kV
- Installation ModeRack (equipped with mounting ears)
- Network Parameters
- Ports24 × Gigabit PoE port,2 × 10G fiber optical port
- MAC Address Table16 K
- Switching Capacity88 Gbps
- Packet Forwarding Rate65.47 Mpps
- Internal Cache8.4 Mbits
- Software Function
- Long Range
Ports 1 to 24: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Port Isolation
Ports 1 to 26: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 24: Auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation group(s).
- QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP and WRR priority scheduling modes.
Support DSCP-based QoS policy.
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
Support G.8032 ERPS.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 1024 VLAN.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
- Port Rate-LimitingPort rate-limiting is used for port bandwidth adjustment to prevent network congestion.
- Storm Control
Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.
Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
- DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
- ACL
Support ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type.
Support ACL application on ports.
Support IPv4 ACL and MAC ACL configurations.
Support inbound ACLs.
- IPSG
IPSG can control the security of port access device.
Support port, MAC, IP binding.
Support 64 security entries.
- DDM (Digital Diagnostic Monitoring)Support real-time monitoring of key parameters in optical modules, such as operating temperature, operating voltage, operating current, and Rx and Tx optical power.
- PoE Power Supply
- PoE Standard
Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 5 to 24: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin
Ports 1 to 4: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Ports 5 to 24: End-span: 1/2(-), 3/6(+)
- PoE Port
Hi-PoE: Ports 1 to 4
PoE: Ports 5 to 24
- Max. Port Power
Ports 1 to 4: 90 W
Ports 5 to 24: 30 W
- PoE Power Budget370 W
- PoE Power SavingPower conservation is achieved by scheduling PoE to be enabled or disabled so that the PoE port(s) will cut off power to IPCs during idle periods.
- Perpetual PoE
Supported
PoE remains active during system reboot, except in cases of power outage or PSE firmware upgrade.
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition))
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
