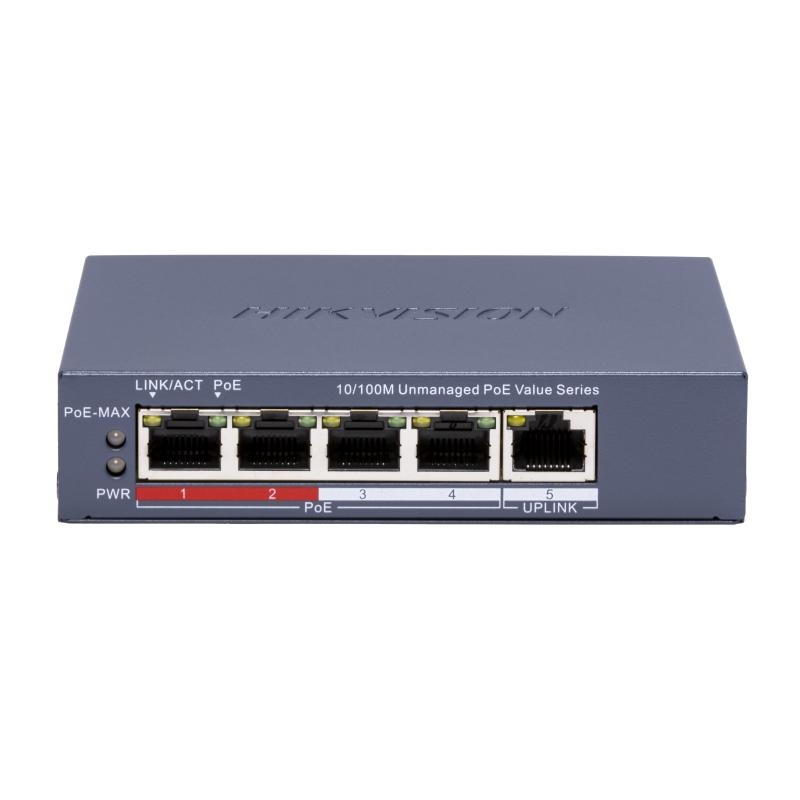

Switch PoE unmanaged Hikvision DS-3E0105P-E/M(C), 4×PoE + uplink 10/100 Mbps, intelligent PoE management, long‑range PoE 300 m, IEEE802.3af/at, protectie 6 kV pentru camere IP

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• General
• ShellMetal material, fan-free design
• Net Weight0.2 kg (0.44 lb)
• Gross Weight0.5 kg (1.1 lb)
• Dimensions (W × H × D)121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.08'' × 3.27'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply54 V DC, 0.92 A
• Max. Power Consumption50 W
• Power Consumption in Idle5 W
• Installation ModeDesk-Mounted,Wall-Mounted
• Surge Protection6 kV

• Network Parameters
• Ports4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
• MAC Address Table2 K
• Switching Capacity1 Gbps
• Packet Forwarding Rate0.744 Mpps
• Internal Cache768 Kbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(-), 3/6(+)
• PoE PortPoE: Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget45 W

• Dialing Function
• Long Range

  Ports 1 to 4: up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7:2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
