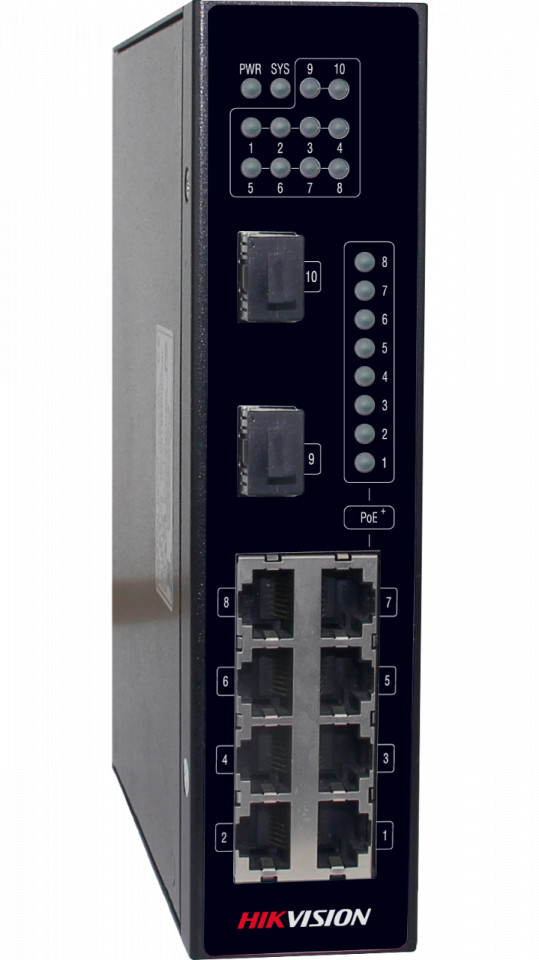

Switch PoE HikVision industrial 8 porturi PoE si doua porturi SFP DS-3T0310P

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• Network Parameters
• Port Number8 × 10/100 Mbps RJ45 ports, and 2 × gigabit fiber optical ports
• MAC Address Table4 K
• Switching Capacity8.8 Gbps
• Packet Forwarding Rate4.2Mpps

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power Pin1/2 (+), 3/6 (-)
• Max. Port PowerMax. 30 W for one port

• General
• Dimension (W × H × D)170 × 156 × 42
• Storage Temperature-40℃-85℃
• Storage Humidity5%-95% non-condensing
• Installation ModeDIN rail
• Operating Temperature-40℃-75℃
• Operating Humidity5%-95% non-condensing
• Power SupplyDC：44～57VDC ( Power supply unit is not included )
• Power Consumption< 9W
• Protection GradeIP40

• Approval
• EMI

  FCC 47 CFR Part 15 Class A

  EN55022 Class A

• EMS

  IEC (EN )61000‐4‐2, Class 4

  IEC (EN )61000‐4‐4, Class 2

  IEC (EN )61000‐4‐5, Class 2

  IEC (EN )61000‐4‐11, Class 4

  IEC (EN )61000‐4‐12, Class 4
