NOU

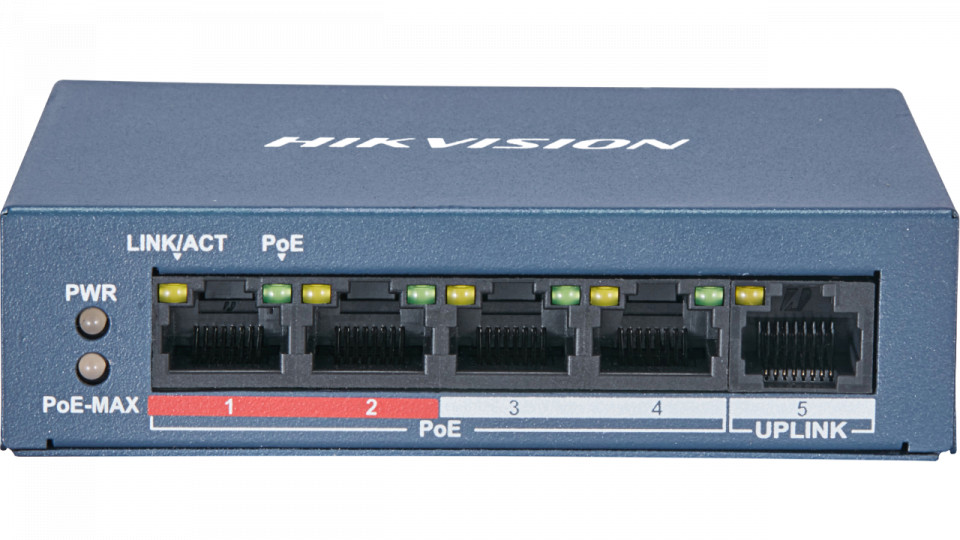

Switch PoE HikVision DS-3E0105P-E/M(B) unmanaged, 4 porturi Fast Ethernet PoE + 1 port Uplink, transmisie Long Range pana la 300m, protectie supratensiune 6KV, management inteligent consum, port VIP pentru date video

HikVision
208,81 RON (TVA inclus)
172,57 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Stoc 45
Cod produs - SKU DS-3E0105P-E/M(B)
EAN 6941264013952
Disponibil in stoc
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere

Switch 4 porturi PoE Hikvision DS-3E0105P-E/M(B)



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

    • PoE Power Supply
    • PoE StandardIEEE 802.3af, IEEE 802.3at
    • PoE Power PinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
    • PoE PortPorts 1 to 4
    • Max. Port Power30 W
    • PoE Power Pudget35 W
    • Max. Power Consumption38 W
    • Network Parameters
    • Port Number4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
    • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
    • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
    • Forwarding ModeStore-and-forward switching
    • Working ModeStandard mode (default); Extend mode
    • High Priority PortsPorts 1 to 2
    • Ports For Long-Distance TransmissionPorts 1 to 4
    • MAC Address Table1 K
    • Switching Capacity1 Gbps
    • Packet Forwarding Rate0.744 Mpps
    • Internal Cache448 Kbits
    • General
    • ShellMetal material, fan-free design
    • Gross Weight0.48 kg (1.06 lb)
    • Net Weight0.2 kg (0.4 lb)
    • Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
    • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Operating Humidity5% to 95% (no condensation)
    • Storage Humidity5% to 95% (no condensation)
    • Power Supply48 VDC, 0.8 A
    • Power Consumption In Idle3 W
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
    • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

    Detalii

    SKU
    DS-3E0105P-E/M(B)
    EAN
    6941264013952
    Categorii
    Switch PoE
    Greutate
    1 kg
    Brand
    HikVision
    Producator
    HikVision
    Numar porturi
    4
    Fisa tehnica
    Fisa tehnica DS-3E0105P-EMB.pdf
