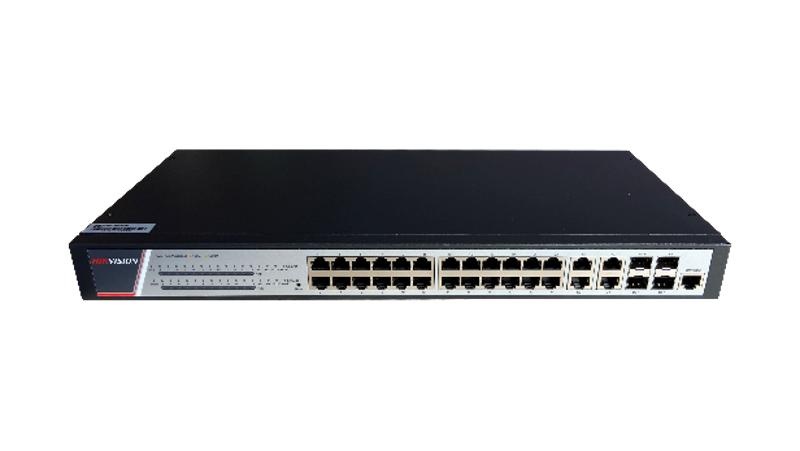

Switch PoE Hikvision 24 porturi DS-3E2528P(B), 4 porturi Combo, Layer 3 Static Routing, OSPF, IEEE 802.3af/at max 30W/port, management Web/Console, SNMP, protectie EAPs si ERPs
Descriere
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
- General
- Net Weight3.1 kg (6.83 lb)
- Dimensions (W × H × D)440.00 mm × 44.00 mm × 210.00 mm (17.32'' × 1.73'' × 8.27'')
- Operating Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Operating Humidity10% to 90% (no condensation)
- Power Supply100-240 VAC, 50/60 Hz
- Power Consumption17 W
- Network Parameters
- MAC Address Table8 K
- Ports24 × 1 Gigabit PoE port,4 × 1 Gigabit combo
- Switching Capacity
Whole-Device Performance: 56 Gbps
Port Performance: 56 Gbps
- Packet Forwarding Rate
Whole-Device Performance: 41.66 Mpps
Port Performance: 41.66 Mpps
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power Pin1/2 (+), 3/6 (-)
- PoE Power Budget370 W
- Software Function
- VLAN
Support IEEE 802.1Q (VLAN), 4096 VLAN IDs
Support GVRP
Support QinQ
Support VLAN based on MAC/protocol/IP subnet/policy/port
Support Private VLAN
Support 1:1 and N:1 VLAN mapping functions
- QoS
Support Diff-Serv QoS
Support 802.1p/DSCP priority mapping
Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ
Support priority marking and remarking
Support traffic shaping
Support congestion avoidance, Tail-Drop and WRED
Support 802.1p, TOS, DSCP, and EXP priority mapping
Support port/flow-based rate limiting
- Management Method
Support Console, Telnet, SSH
Support web, http, https
Support FTP, TFTP, Xmodem, SFTP
Support SNMP V1/V2c/V3
Support RMON
Support NTP
- Multicast
Support IGMP v1/v2/v3 Snooping
Support IGMP V1/V2/V3
Support MLD Snooping v1/v2
Support MLD v1/v2
- Security
Support AAA,TACACS+ Radius authentication
Support 802.1X authentication, MAC authentication, MAC bypass authentication
Support to prevent DOS, ARP attack function, ICMP anti attack
Support binding of IP, MAC, port and VLAN
Support MAC authentication
Support MAC address filtering
Support broadcast/multicast/unknown-unicast storm control
- Approval
- EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 24)
- SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2034)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2023)
