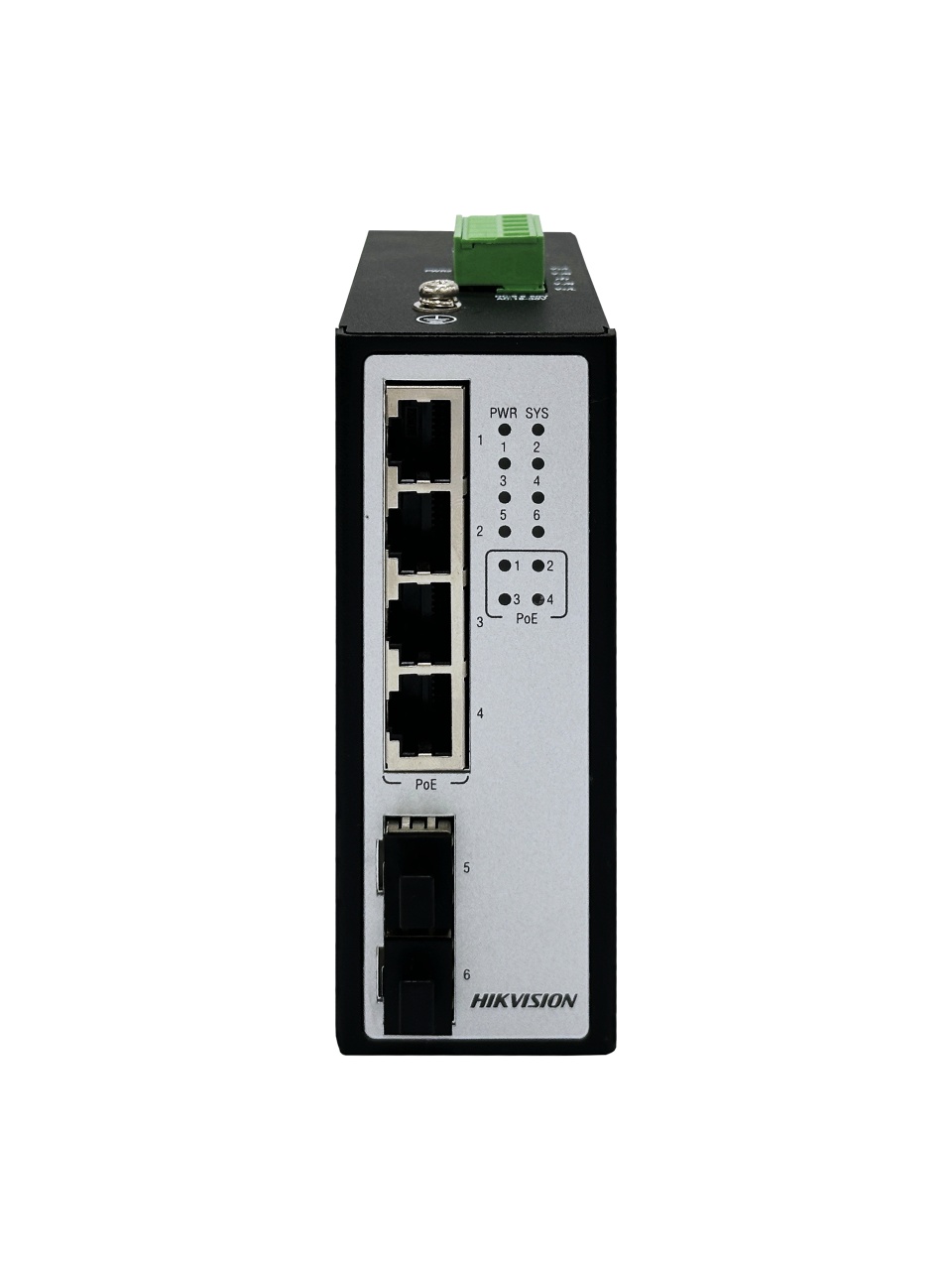

Switch industrial Hikvision DS‑3T2506P, 4 porturi PoE/PoE+ 10/100/1000BaseT, 2 porturi SFP 1000BaseX, management web/CLI/Telnet, VLAN 802.1Q, QoS, SNMP, PoE management, alimentare redundanta, fanless, temperatura ‑40°C~75°C
Descriere
Switch 8 porturi PoE Hikvision DS-3T1310P-SI/HS
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
Viteza transfer
Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +65°C si cu umiditate de pana la 95%.
- General
- Net Weight0.36 kg (0.79 lb)
- Gross Weight0.50 kg (1.1 lb)
- Dimension (W × H × D)110 mm × 42 mm × 105 mm (4.33" × 1.65" × 4.13")
- Working Temperature-40°C to 75°C (-40°F to 167°F)
- Storage Temperature-40°C to 85°C (-40°F to 185°F)
- Working Humidity5% to 95% (no condensation)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48-54VDC, Redundant dual inputs ( Power supply unit is not included)
- Max. Power Consumption120 W
- ShellMetal material, IP40
- Network Parameters
- MAC Address Table8 K
- Ports4 × Gigabit PoE port,2 × Gigabit fiber optical port
- Switching Capacity
Whole-Device Performance: 20 Gbps
Port Performance: 20 Gbps
- Packet Forwarding Rate
Whole-Device Performance: 14.88 Mpps
Port Performance: 14.88 Mpps
- PoE Power Supply
- PoE Power Pin4-pin power: 1/2(+), 3/6(-)
- Software Function
- QoS
Support Diff-Serv QoS
Support 802.1p/DSCP priority mapping
Support Queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ
Support Priority marking and remarking
Support Traffic shaping
Support Port/Flow- based Rate Limiting
- VLAN
Support IEEE 802.1Q (VLAN), Up to 256 VLAN groups, 4096 VLAN IDs
Support GVRP
Support QinQ
Support VLAN based on MAC/ protocol /IP subnet / policy / port
Support Private VLAN
Support 1:1 and N:1 VLAN Mapping functions
- Management Method
Support CLI, Telnet, Console, RJ45 console, SSH
Support web, http,https
Support FTP, TFTP, SFTP
Support SNMP V1/V2c/V3
Support RMON
Support NTP
- Reliability
Support STP/RSTP/MSTP
Support EAPS/MEAPS
Support ERPS
- Security
Support AAA,TACACS+ Radius Authentication
Support 802.1X authentication, MAC authentication, MAC bypass authentication
Support to prevent DOS, ARP attack function, ICMP anti attack
Support binding of IP, MAC,
Support MAC authentication
Support MAC address filtering
Support Broadcast/Multicast/Unknown-unicast Storm Control
- Multicast
Support IGMP v1/v2 Snooping
Support IGMP V1/V2/V3
Support MLD Snooping v1
Support MLD v1/v2
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2027)
