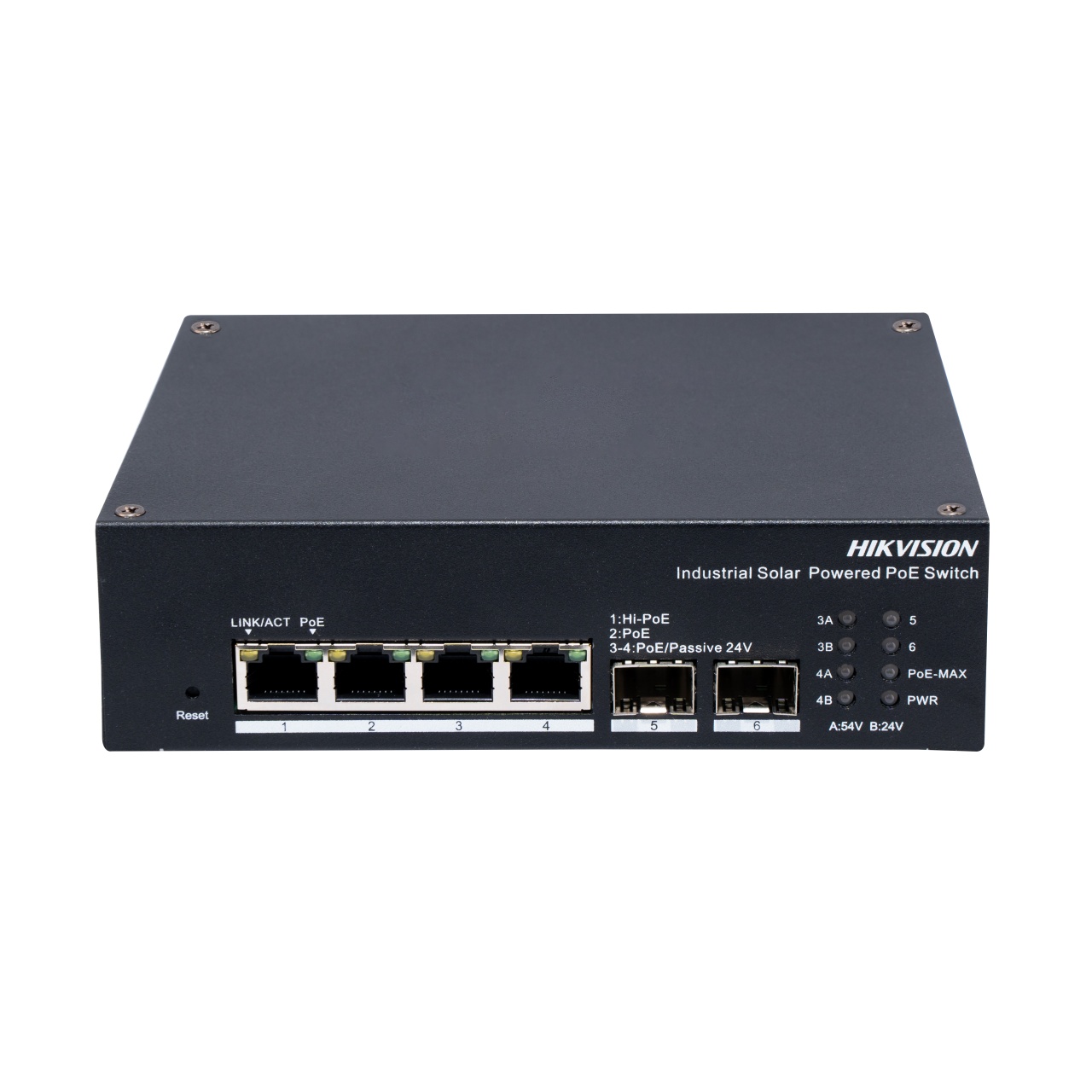

Switch industrial Hikvision DS‑3T1506HP‑EI-UPS, 4 porturi PoE Gigabit, 2 porturi SFP Gigabit, Hi-PoE 802.3bt 90W/port, suport PoE pasiv 24V, alimentare solara 12-24V/DC54V, monitorizare baterie, protectie 6kV, temperatura ‑40°C~75°C
Descriere
Switch 8 porturi PoE Hikvision DS-3T1310P-SI/HS
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
Viteza transfer
Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +65°C si cu umiditate de pana la 95%.
- General
- Net Weight0.7 kg (1.54 lb)
- Gross Weight1.16 kg (2.56 lb)
- Dimensions (W × H × D)158.00 mm × 44.00 mm × 130.00 mm (6.22'' × 1.73'' × 5.12'')
- Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply12V DC, 10A or 24V DC, 5A; 54V 2.22A
- Installation ModeDesk-Mounted,Rail,Wall-Mounted
- Max. Power Consumption120 W
- Power Consumption in Idle2 W
- Surge Protection6 kV
- ShellMetal material, IP30
- Network Parameters
- Ports4 × Gigabit PoE port,2 × Gigabit fiber optical port,1 x RS485 port
- MAC Address Table2 K
- Switching Capacity
Whole-Device Performance: 14 Gbps
Port Performance: 12 Gbps
- Packet Forwarding Rate
Whole-Device Performance: 10.42 Mpps
Port Performance: 8.93 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE Standard
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
Ports 3 to 4: support passive PoE, 24 V or 54 V output depending on DIP switch settings
- PoE Power Pin
Port 1: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Port 2: End-span: 1/2(-), 3/6(+)
Ports 3 to 4: 8-pin power: 1/2(-), 3/6(+), 54 V output ; 4/5(+), 7/8(-), 24 V output
- PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 4
- Max. Port Power
Port 1: 90 W
Ports 2 to 4: 30 W
- PoE Power Budget
DC 54 V input: 110 W
DC 12 V~24 V input: 60 W
- Software Function
- Long Range
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Port Isolation
Ports 1 to 6: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 2 aggregation group(s).
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
Support G.8032 ERPS.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
- DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
- DDM (Digital Diagnostic Monitoring)Support real-time monitoring of key parameters in optical modules, such as operating temperature, operating voltage, operating current, and Rx and Tx optical power.
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
