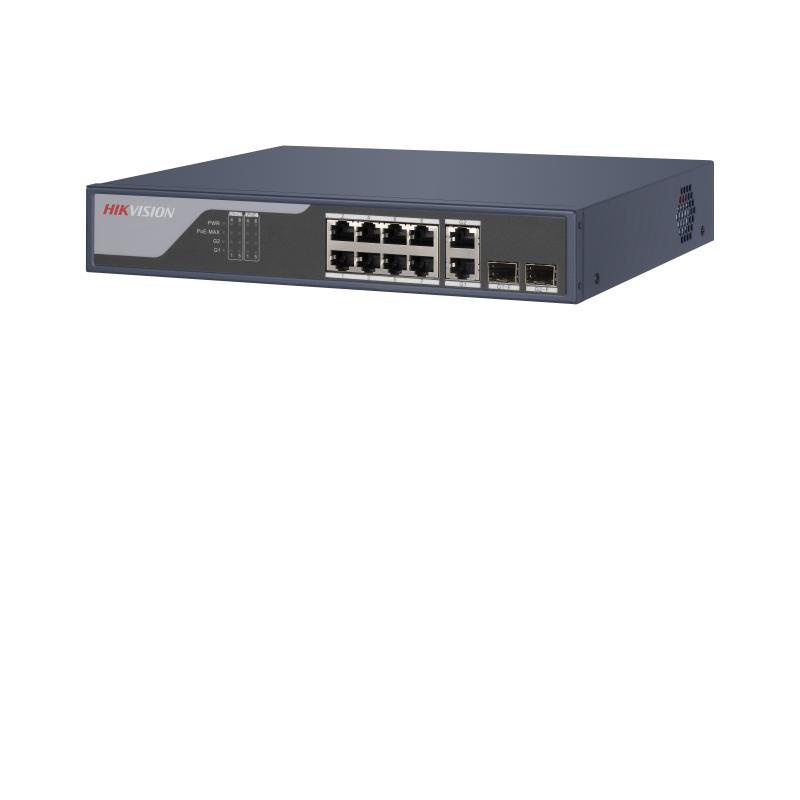

Switch Hikvision PoE 8 canale DS-3E1310P-SI 125W

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

• • General
  • ShellMetal material
  • Net Weight1.72 kg (3.79 lb)
  • Gross Weight2.20 kg (4.85 lb)
  • Dimensions (W × H × D)266.00 mm × 44.50 mm × 220.80 mm (10.47'' × 1.75'' × 8.69'')
  • Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100-240 VAC, 50/60 Hz, Max. 1.5 A
  • Installation ModeRack (equipped with mounting ears)
  • Max. Power Consumption150 W
  • Power Consumption in Idle5 W
  • Surge Protection6 KV
  • Network Parameters
  • Ports8 × 10/100 Mbps PoE port,2 × Gigabit combo
  • MAC Address Table16 K
  • Switching Capacity9.2 Gbps
  • Packet Forwarding Rate6.84 Mpps
  • Internal Cache4 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af,IEEE 802.3at
  • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE PortPoE: Ports 1 to 8
  • Max. Port Power30 W
  • PoE Power Budget125 W
  • Software Function
  • Long Range

    Ports 1 to 8: up to 300 m.

    Long range performance may vary depend on camera model or cable condition.

  • Port Isolation

    Ports 1 to 8: port isolation mode to improve network security.

    Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

  • PoE WatchdogPorts 1  to 8: auto detect and restart the cameras that do not respond.
  • QoS

    QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.

    Support port-based priority configuration.

    Support SP, WRR priority schedule mode.

  • Loop Prevention

    Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

    Support 802.1D STP.

    Suppport 802.1w RSTP.

  • VLAN

    VLAN is used for network scale planning and network health improvement.

    Support 802.1Q.

    Configurable VLAN ID from 1-4094.

    Support Trunk, Access port mode.

    Support Max. 4094 VLAN.

  • HPP

    Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

    1. Display the port rate.

    2. Display the port bandwidth utilization rate.

    3. Display the PoE power usage.

    4. Display topology information.

    5. Display the alarm status.

    6. Restart ports and devices.

    7. Enable port long-rage mode.

    8. Remotely upgrade the device.

  • System Maintenance

    Support device management via web.

    Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

    Support remote management via Hik-Partner Pro.

    Support 802.1ab LLDP for peer device discovery.

    Support SNMP v1/v2c for third-party management platform access.

    Support port mirroring for fault locating.

  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);

    IC (ICES-003: Issue 6);

    RCM (ASNZS CISPR 32: 2015)

  • Safety

    UL (UL 60950-1);

    CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);

    CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

  • Chemistry

    CE-RoHS (201165EU);

    WEEE (201219EU);

    Reach (Regulation (EC) No.19072006)
