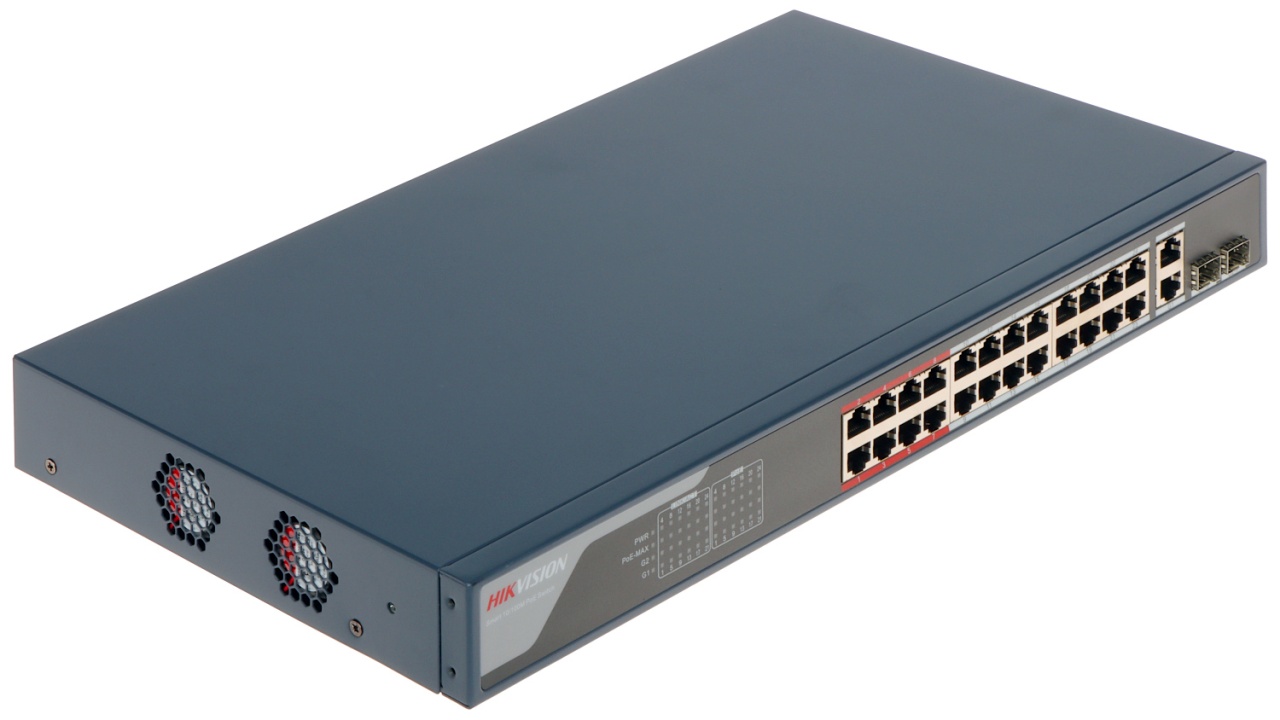

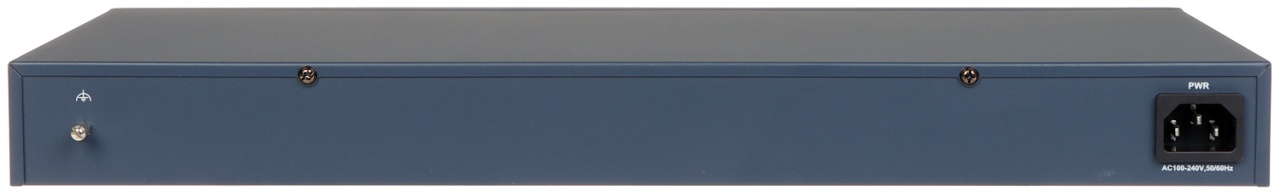

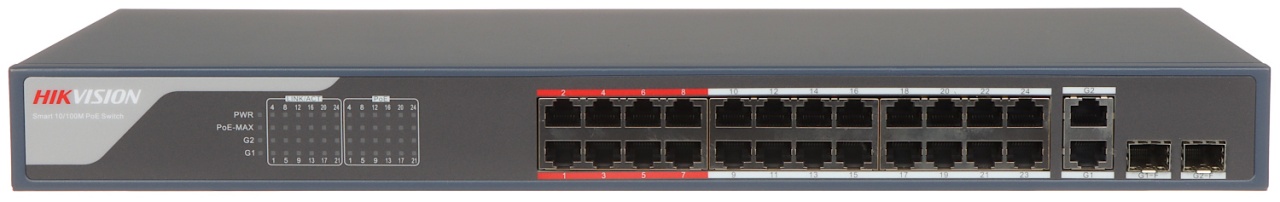

Switch Hikvision DS-3E0326P-E(C) 24 Port

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

• General
• ShellMetal material
• Net Weight2.785 kg (6.14 lb)
• Gross Weight3.54 kg (7.80 lb)
• Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
• Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100~240 VAC, 50/60 Hz, Max. 6.5 A
• Max. Power Consumption400 W
• Power Consumption in Idle30 W
• Installation ModeRack (equipped with mounting ears)
• Surge Protection6 KV

• Network Parameters
• Ports24 × 10/100 Mbps PoE port,2 × Gigabit combo
• MAC Address Table16 K
• Switching Capacity8.80 Gbps
• Packet Forwarding Rate6.55 Mpps
• Internal Cache4 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af;IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 24
• Max. Port Power30 W
• PoE Power Budget370 W

• Dialing Function
• Long Range

  Ports 17 to 24: up to 300 m

  Long range performance may vary depend on camera model or cable condition.

• Port Isolation

  Ports 1 to 24: port isolation mode to improve network security.

  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE WatchdogPorts 1  to 24: auto detect and restart the cameras that do not respond.

• Software Function
• VIP PortPorts 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU)
