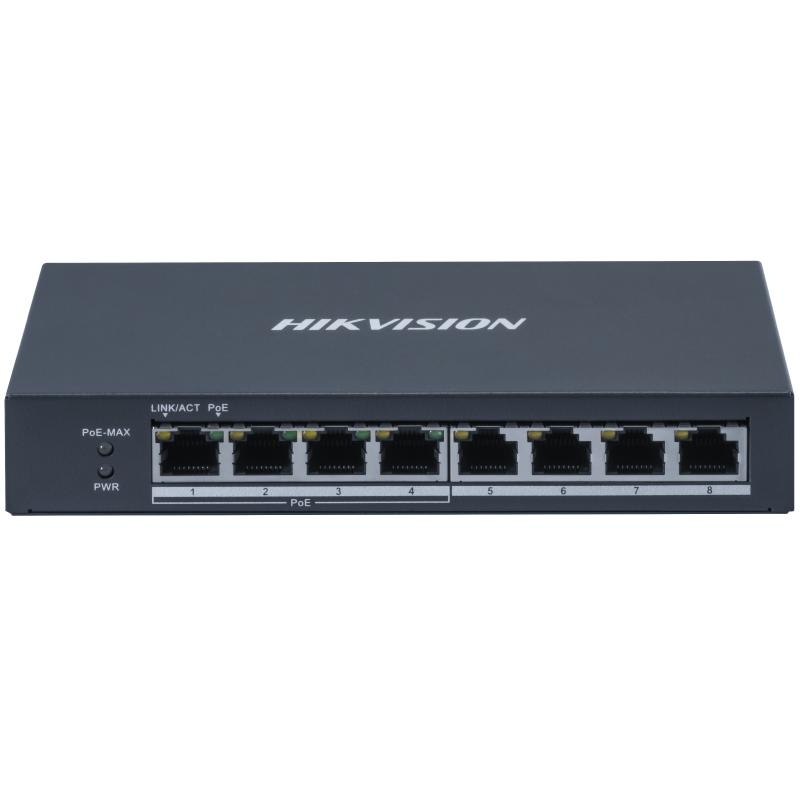

Switch HIKVISION 8 porturi with 4 POE+ DS-3E0508P-O

Descriere

• General
• ShellMetal material, fan-free design
• Net Weight0.365 kg (0.805 lb)
• Gross Weight0.921 kg (2.030 lb)
• Dimensions (W × H × D)170.0 mm × 27.6 mm × 93.1 mm (6.69'' × 1.08'' × 3.66'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 1.35 A
• Installation ModeRack (equipped with mounting ears)
• Surge Protection6 KV

• Network Parameters
• Ports4 × Gigabit PoE port,4 × Gigabit RJ45 port
• MAC Address Table4 K
• Switching Capacity16 Gbps
• Packet Forwarding Rate11.90 Mpps
• Internal Cache1.50 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget60 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
