Descriere
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
- Network Parameters

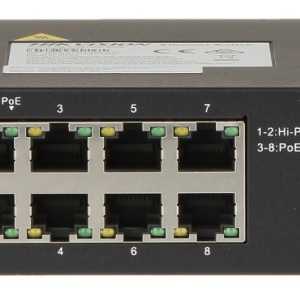

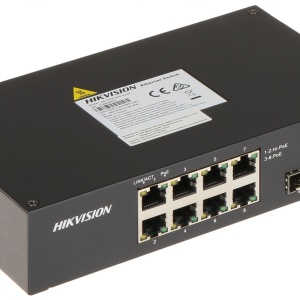

- Port Number6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
- Ports For Long-Distance TransmissionPorts 7 and 8
- Working ModeStandard mode (default), Extend mode, Isolation mode, PoE watchdog mode
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Internal Cache1.5 Mbits
- Forwarding ModeStore-and-forward switching
- Packet Forwarding Rate14.88 Mpps
- PoE Power Supply
- PoE StandardPorts 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 3 to 8: IEEE 802.3af, IEEE 802.3at
- PoE PortPorts 3 to 8
- Max. Port PowerPorts 1 and 2: 90 W Ports 3 to 8: 30 W
- PoE Power Pudget110 W
- Hi-PoE PortPorts 1 and 2
- PoE Power PinPorts 1, 2, 7 and 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. Ports 3 to 6: Ethernet cables 1/2/3/6 provide power supply.
- General
- ShellMetal material, fan-free design
- Gross Weight1.11 kg (2.45 lb)
- Net Weight0.585 kg (1.29 lb)
- Dimension (L × H × D)197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
- Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Humidity5% to 95% (no condensation)

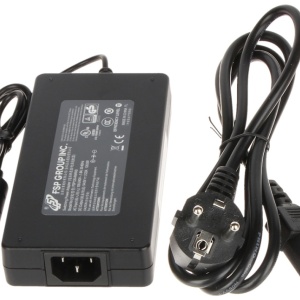

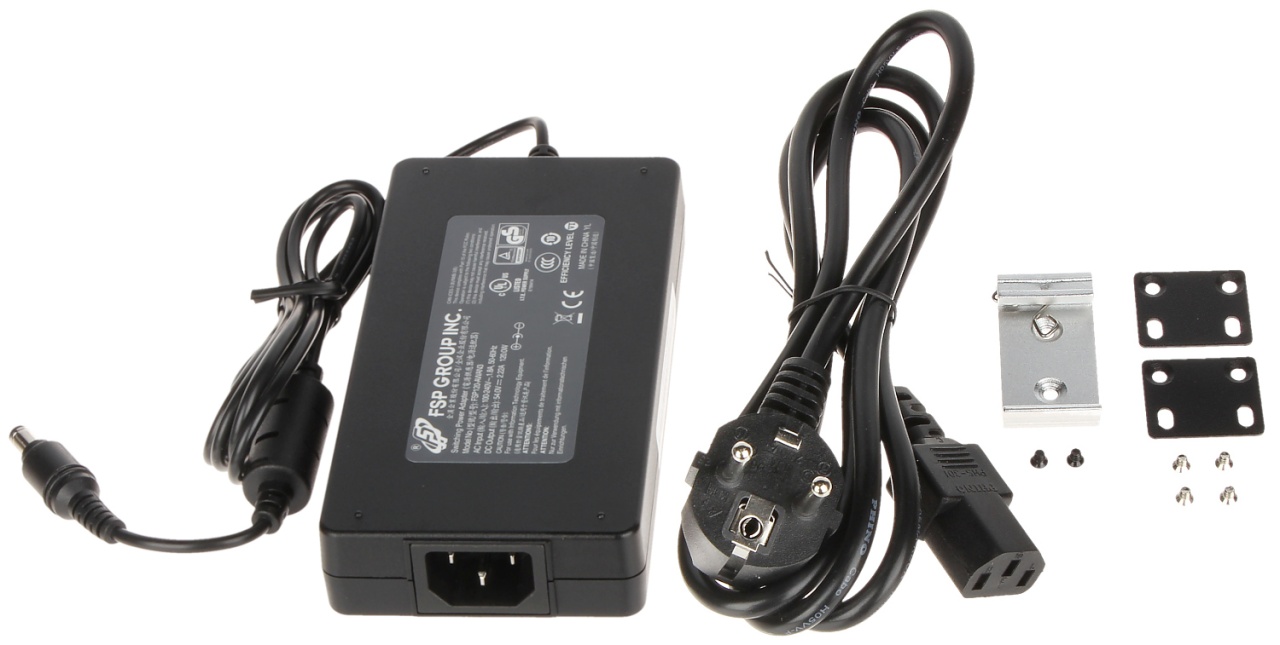

- Power Supply48 to 57 VDC, 2.5 A Max.
- Power Consumption In Idle< 10 W
- Power Souce120 W
- Max. Power Consumption120 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

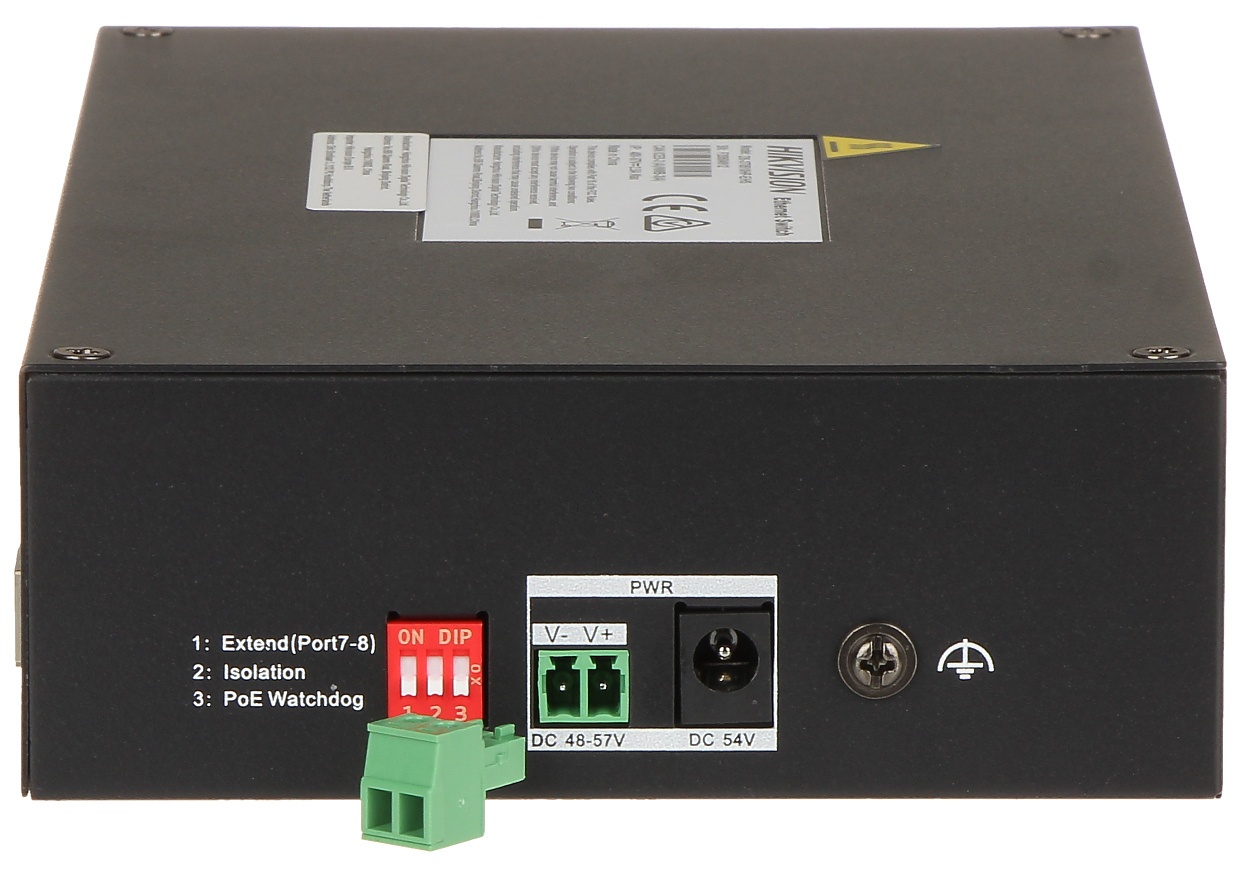

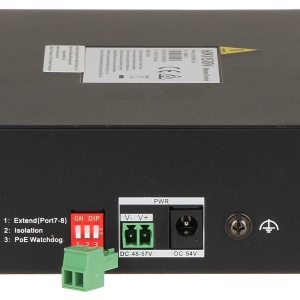

- Dialing Function
- Long RangePorts 7 and 8: up to 300 m.
- Port IsolationPorts 1 to 8: port isolation mode to improve network security.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
Detalii produs
Cod produs - SKU
DS-3T0510HP-E-HS
Categorie
Greutate produs
0.75 kg.
