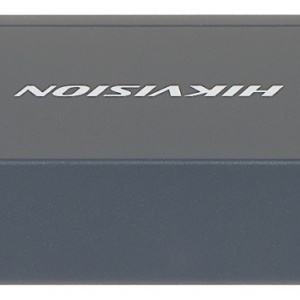

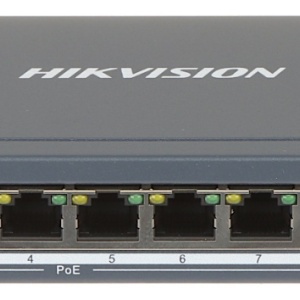

  • Switch HikVision 8 porturi PoE Gigabit cu web interface si doua porturi pentru fibra optica Gigabit DS-3E1510P-SI - Img 1

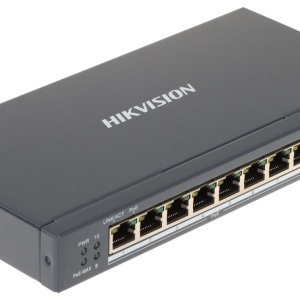

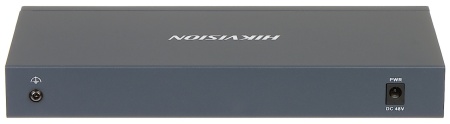

  • Switch HikVision 8 porturi PoE Gigabit cu web interface si doua porturi pentru fibra optica Gigabit DS-3E1510P-SI - Img 2

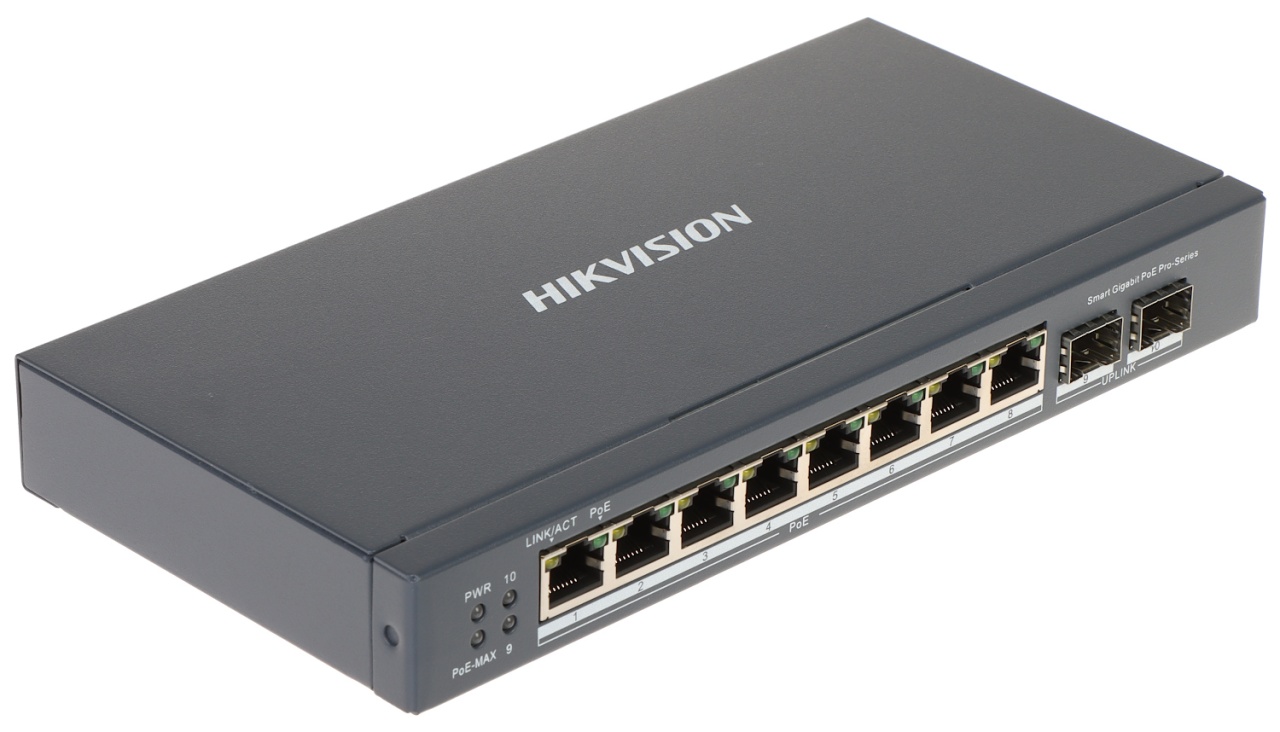

  • Switch HikVision 8 porturi PoE Gigabit cu web interface si doua porturi pentru fibra optica Gigabit DS-3E1510P-SI - Img 3
  • Switch HikVision 8 porturi PoE Gigabit cu web interface si doua porturi pentru fibra optica Gigabit DS-3E1510P-SI - Img 4
  • Switch HikVision 8 porturi PoE Gigabit cu web interface si doua porturi pentru fibra optica Gigabit DS-3E1510P-SI - Img 5

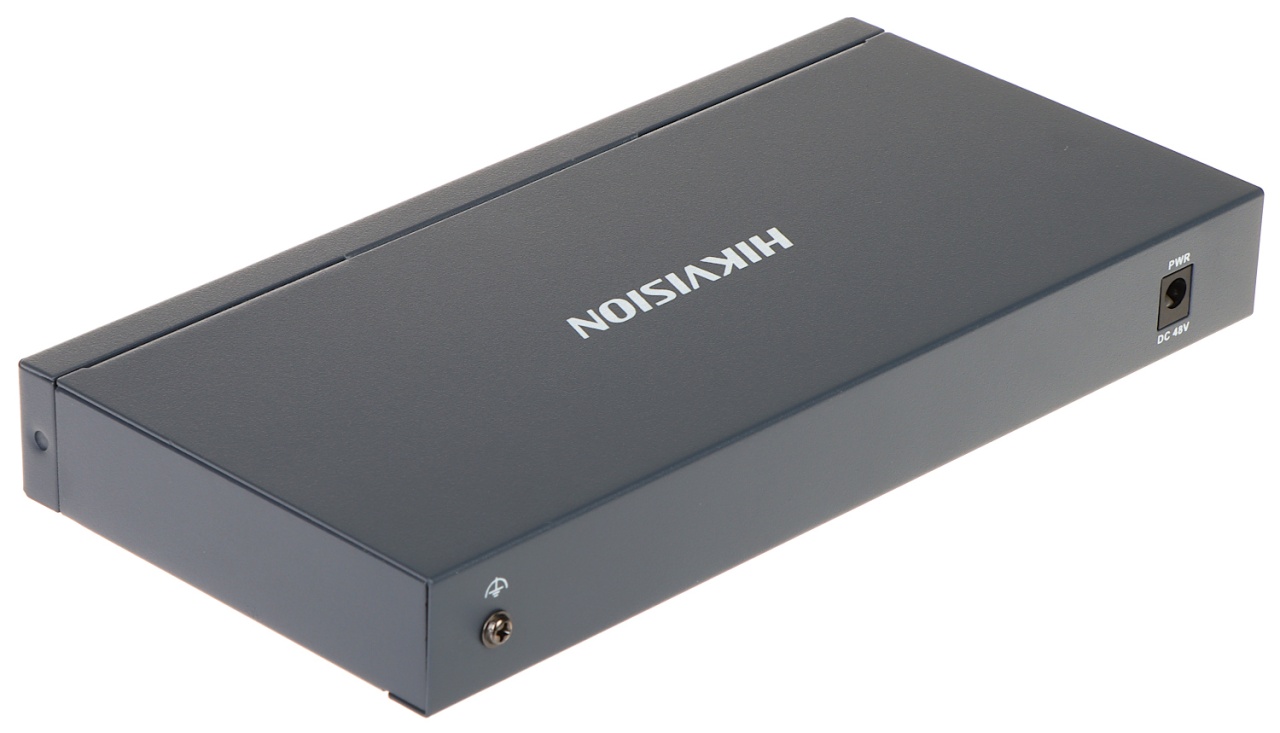

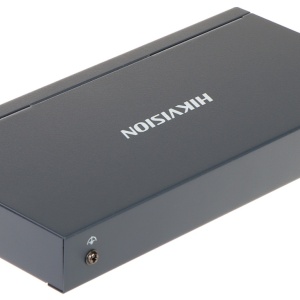

  • Switch HikVision 8 porturi PoE Gigabit cu web interface si doua porturi pentru fibra optica Gigabit DS-3E1510P-SI - Img 6

Switch HikVision 8 porturi PoE Gigabit cu web interface si doua porturi pentru fibra optica Gigabit DS-3E1510P-SI

HikVision
848,99 RON (TVA inclus)
701,64 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Stoc 82
Cod produs - SKU DS-3E1510P-SI
EAN 6941264087427
Disponibil in stoc
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere


Switch 8 porturi PoE Hikvision DS-3E1510P-SI



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.





  • Key Feature
  • DHCPDHCP supported
  • Network Parameters

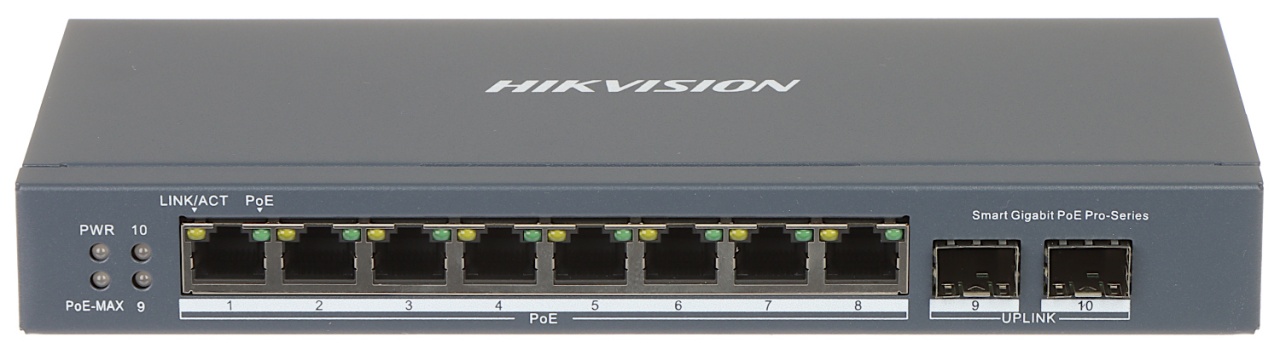

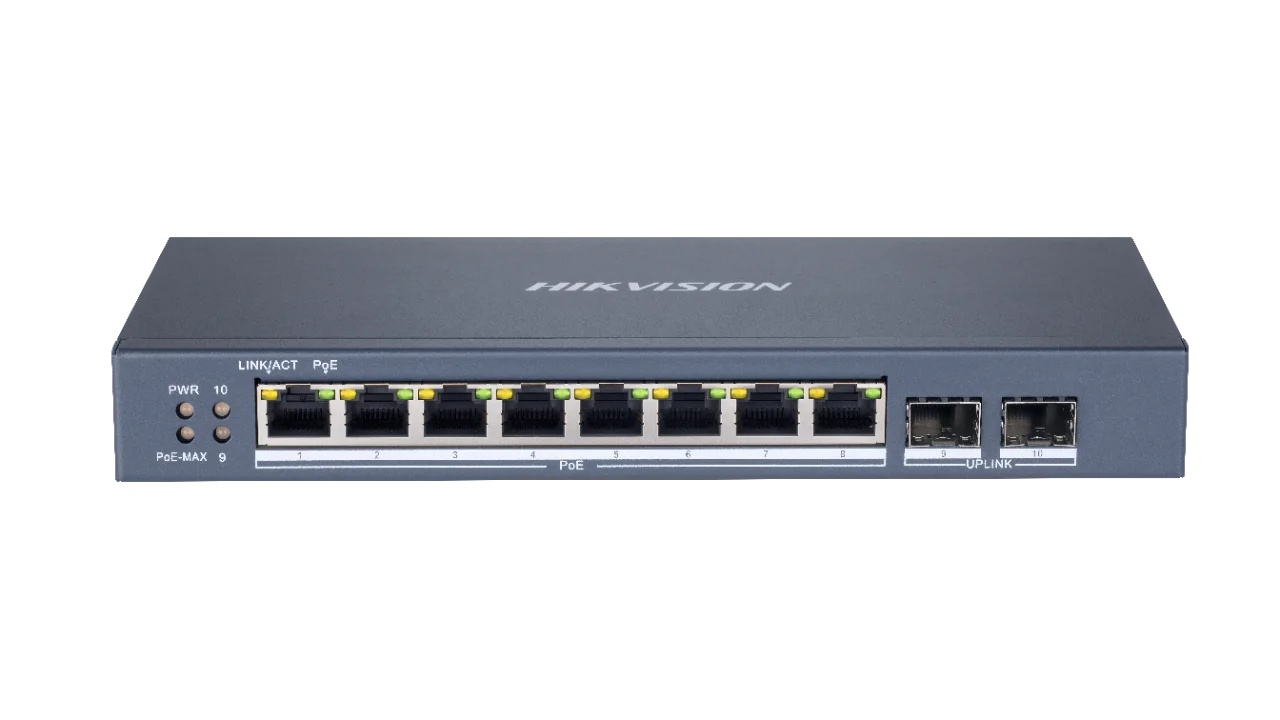

  • Port Number8 × gigabit PoE port, and 2 × gigabit fiber optical port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding ModeStore-and-forward switching
  • Working Mode

    Standard mode (default)

    Extend mode

  • MAC Address Table8 K
  • Switching Capacity20 Gbps
  • Packet Forwarding Rate14.88 Mpps
  • Internal Cache4.1 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  • PoE PortPoE: Ports 1 to 8
  • Max. Port PowerPort 1 to 8: 30 W
  • PoE Power Budget110 W
  • Software Function
  • Device MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
  • Port ConfigurationPort rate configuration, flow control, and ports enabling
  • Long RangeUp to 300 m transmission
  • PoE Configuration

    PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

    PoE enabling: Support

  • Port Rate-LimitingRate-limiting for ingress and egress ports
  • Storm ControlStorm control of unknown unicast, multicast and broadcast
  • Port MirroringSupport
  • Link AggregationStatic link aggregation supported
  • Port IsolationPorts in isolation group cannot communicate with each other.
  • QoSWRR and SP scheduling and port priority
  • VLAN4094 VLANs
  • STPSTP and RSTP protocols
  • SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
  • LLDPLLDP protocol supported for port configuration, global configuration and neighbor discovery
  • General
  • ShellMetal material
  • Net Weight1.21 kg (2.67 lb)
  • Gross Weight1.3 kg (2.87 lb)
  • Dimension (W × H × D)217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)
  • Operating Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-40°C to 85°C (-40°F to 185°F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)

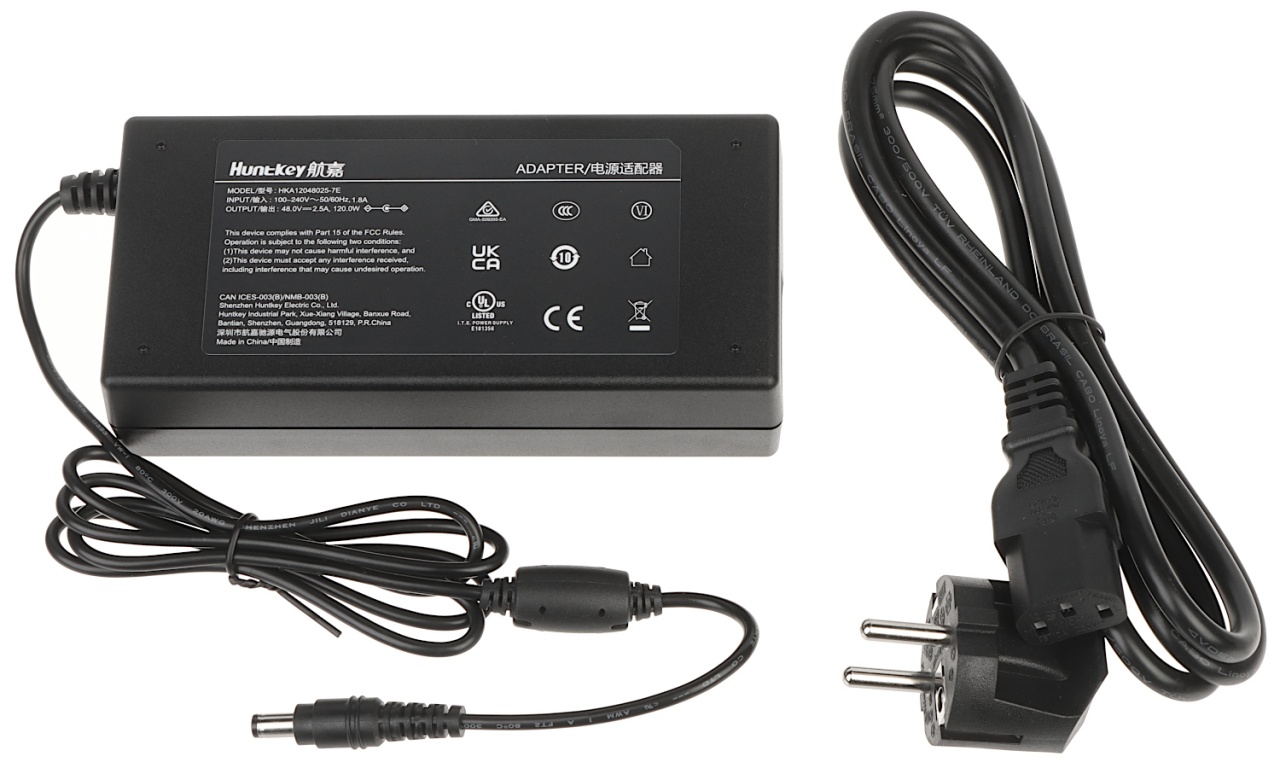

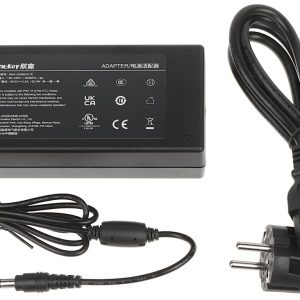

  • Power Supply48 VDC, 2.5 A
  • Max. Power Consumption120 W
  • Power Consumption In Idle7 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Detalii

SKU
DS-3E1510P-SI
EAN
6941264087427
Categorii
Switch PoE
Greutate
0.75 kg
Brand
HikVision
Producator
HikVision
Numar porturi
8
Fisa tehnica
Fisa tehnica DS-3E1510P-SI.pdf
