Switch HikVision 8 porturi PoE DS-3E2510P(B)

Descriere

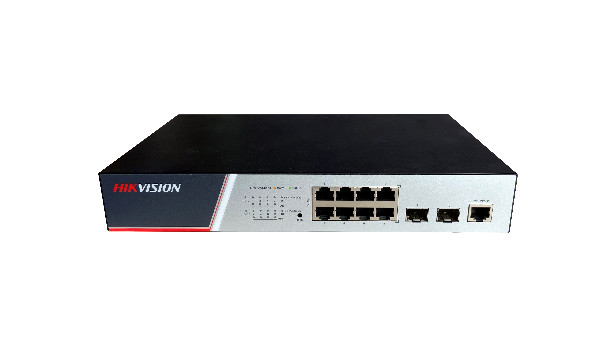

Switch 8 porturi PoE Hikvision DS-3E2510P(B)

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +65°C si cu umiditate de pana la 95%.

• Network Parameters
• Port8 × 1 Gbps PoE port,2 × 1 Gbps fiber optical port
• MAC Address Table8 K
• Switching Capacity20 Gbps
• Packet Forwarding Rate15 Mpps

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin1/2 (+), 3/6 (-)
• PoE Power Budget125 W

• Software Function
• VLAN4K VLAN, GVRP, QinQ, Private VLAN
• QoS

  Flow classification based on L2 to L4 protocols

  CAR flow limit

  802.1P/DSCP priority re-labeling

  SP, WRR, and SP+WRR\"

  Congestion avoidance mechanisms like Tail-Drop and WRED

  Flow monitoring and flow shaping

• Multicast

  IGMP v1/v2/v3

  IGMP snooping

  IGMP Fast Leave

  Multicast group strategy and quantity limitation

• Management Method

  Console, Telnet, SSH2.0, Web

  SNMP v1/v2/v3

  TFTP

  RMON

• Security

  L2/L3/L4 ACL flow identification and filtration

  DDoS attack prevention, TCP's SYN Flood attack prevention, UDP Flood attack prevention, etc.

  Broadcast/multicast/unknown unicast storm-control

  Port isolation

  Port security, and IP+MAC+port\" binding"

• General
• Net Weight1.52 kg (3.35 lb)
• Gross Weight1.74 kg (3.84 lb)
• Dimensions (W × H × D)280.00 mm × 45.00 mm × 179.00 mm (11.02'' × 1.77'' × 7.05'')
• Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
• Operating Humidity5% to 95% (no condensation)
• Power Supply100-240 VAC, 50 Hz ± 10%
• Power Consumption< 15 W

• Approval
• EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 23)
• SafetyUL (UL 62368-1); CB(IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2033)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2022)
