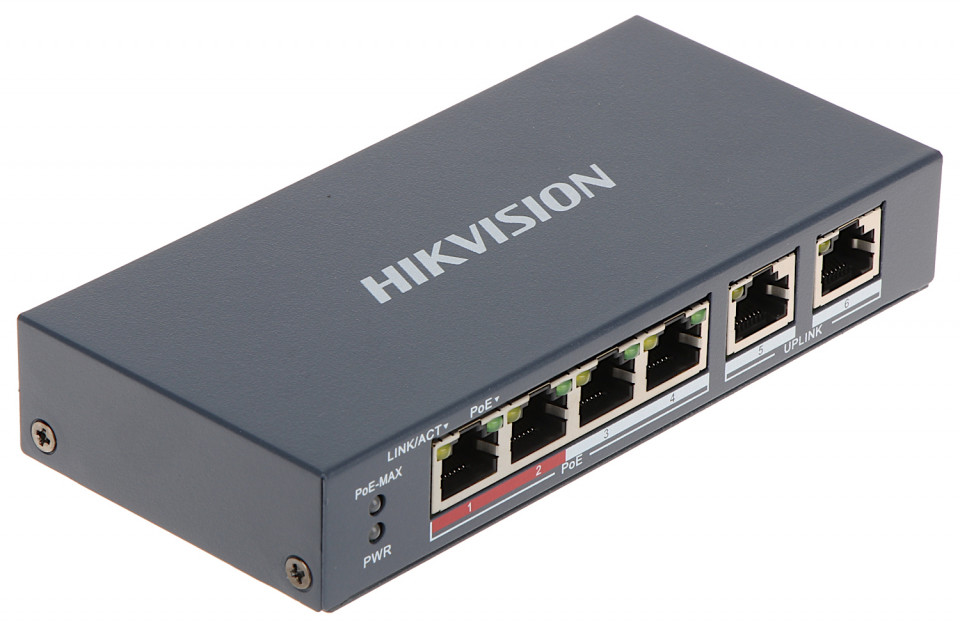

Switch HikVision 4 porturi PoE si doua uplink DS-3E0106P-E/M

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• PoE Power Supply
• PoE StandardIEEE 802.3af/at PoE standard
• PoE Port4
• Max. Port PowerMax. 30 W for one port
• PoE Power Pudget35W
• Max. Power Consumption38W

• Network Parameters
• Port Number4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• High Priority PortsPorts 1 and 2
• Ports For Long-Distance TransmissionPorts 1 to 4
• MAC Address Table4K MAC Address Entries
• Switching Capacity1.6 Gbps Switching Capacity
• Internal Cache768 Kbits RAM Data Buffer

• General
• ShellMetal material, fan-free design
• Gross Weight0.52
• Net Weight0.265
• Dimension (L × H × D)145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
• Operating Temperature-10°C to 40°C (14°F to 104°F)
• Storage Temperature-40°C to 85°C (-40°F to 185°F)
• Operating Humidity5% - 95%
• Storage Humidity5% - 95%
• Power Supply48V 0.8A

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
