Descriere
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
- Network Parameters

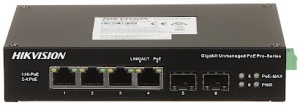

- Port Number3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
- Forwarding ModeStore-and-forward switching
- Working ModeStandard mode (default), Extend mode, Isolation mode, PoE watchdog mode
- Ports For Long-Distance TransmissionPorts 3 and 4
- MAC Address Table4 K
- Switching Capacity12 Gbps
- Packet Forwarding Rate8.928 Mpps
- Internal Cache1.5 Mbits
- PoE Power Supply
- PoE StandardPort 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
- PoE Power PinPorts 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE PortPorts 2 to 4
- Max. Port PowerPort 1: 60 W Ports 2 to 4: 30 W
- PoE Power Pudget60 W
- Hi-PoE PortPort 1

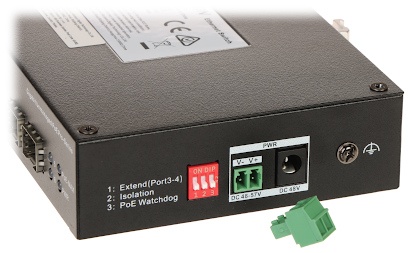

- Dialing Function
- Long RangePorts 3 and 4: up to 300 m.
- Port IsolationPorts 1 to 4: port isolation mode to improve network security.
- PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
- General
- ShellMetal material, fan-free design
- Gross Weight0.94 kg (2.07 lb)
- Net Weight0.38 kg (0.84 lb)
- Dimension (L × H × D)158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)
- Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48 to 57 VDC, 1.35 A Max.
- Power Consumption In Idle< 5 W
- Power Souce65 W
- Max. Power Consumption65 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Detalii produs
Cod produs - SKU
DS-3T0506HP-E-HS
Categorie
Greutate produs
0.75 kg.
Producator
Fisa tehnica
