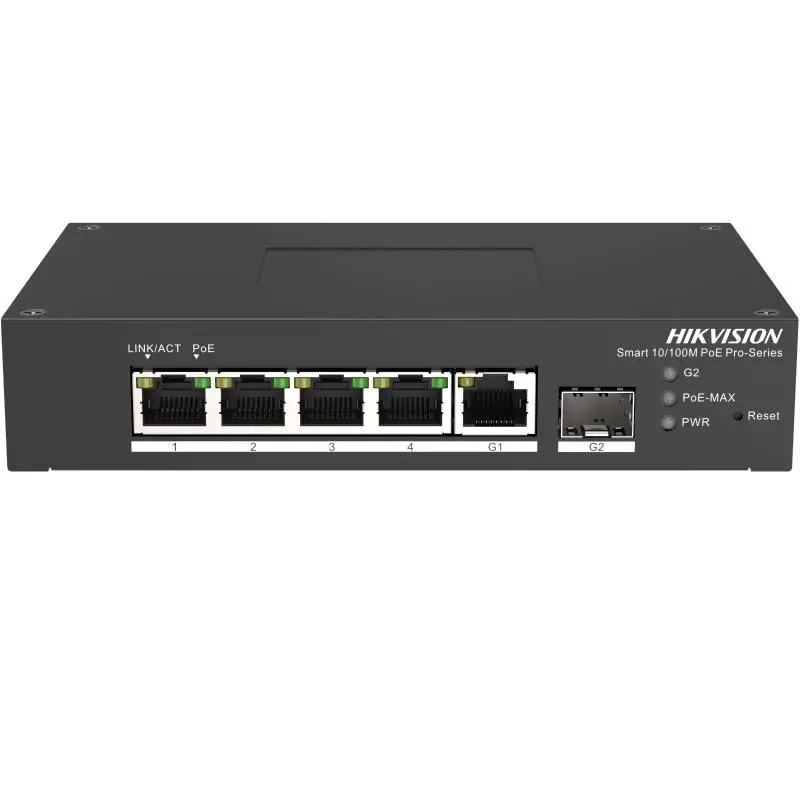

Switch HikVision 4 porturi PoE DS-3T1306P-SI/HS

Descriere

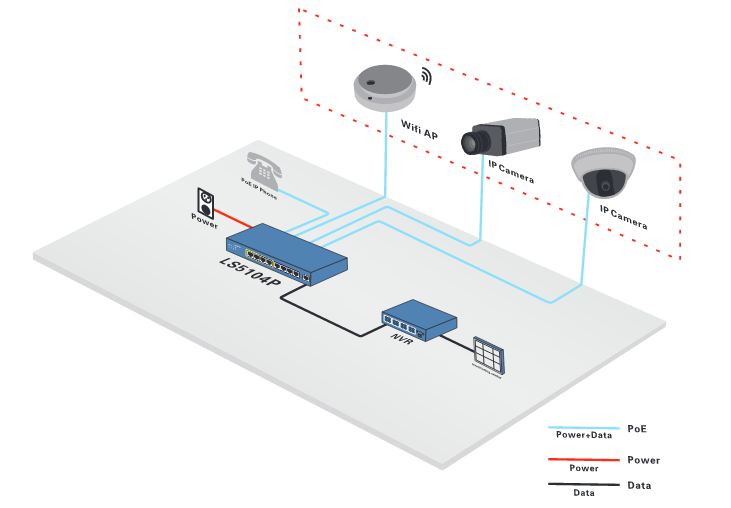

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

• Network Parameters
• Port4 × 10/100 Mbps PoE port,1 × 1 Gigabit RJ45 port,1 × 1 Gigabit fiber optical port
• Port TypeRJ45 port,full duplex,MDIMDI-X adaptive
• StandardIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default)
• MAC Address Table2 K
• Switching Capacity4.8 Gbps
• Packet Forwarding Rate3.57 Mpps
• Internal Cache1 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPoE: Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget60 W

• Software Function
• Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
• Port ConfigurationSupport port rate configuration, flow control, and ports enabling.
• Long RangePorts 1 to 4: up to 300 m
• PoE Configuration

  PoE watchdog: Ports 1 to 4 auto detect and restart the cameras that do not respond.

  PoE enabling: supported

• Port Rate-LimitingRate-limiting for ingress and egress ports
• Storm ControlStorm control of unknown unicast, multicast, and broadcast
• Port MirroringSupported
• Port IsolationPorts in an isolation group cannot communicate with each other.
• QoSWRR and SP scheduling and port priority
• VLAN4094 VLANs
• STPSTP and RSTP
• SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
• LLDPLLDP supported for port configuration, global configuration, and neighbour discovery
• DHCPSupported
• ERPSSupported

• General
• ShellMetal material
• Net Weight0.4 kg (0.8 lb)
• Gross Weight1.0 kg (2.2 lb)
• Dimensions (W × H × D)158.00 mm × 101.20 mm × 31.60 mm (6.20'' × 3.90'' × 1.20'')
• Operating Temperature-30 °C to 65 °C (-22 °F to 149 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power SupplyPower adapter: 48 VDC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 VDC (working temperature: -30°C to 65°C)
• Max. Power Consumption65 W
• Power Consumption In Idle< 5 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
