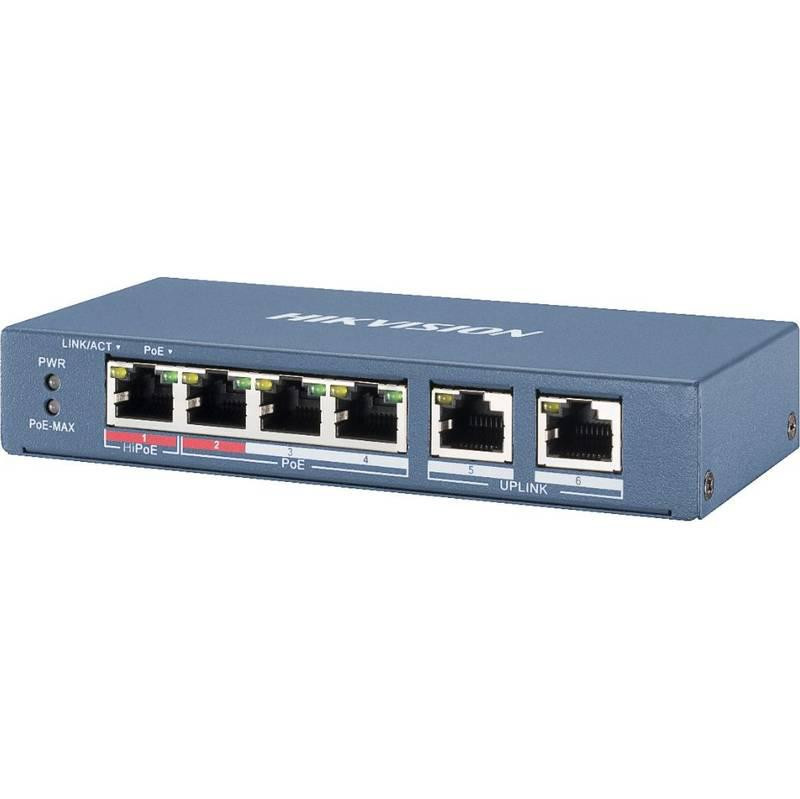

Switch HikVision 4 porturi PoE DS-3E1106HP-EI

Descriere

Switch 4 porturi PoE Hikvision DS-3E1106HP-EI

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +65°C si cu umiditate de pana la 95%.

• Network Parameters
• Port4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
• StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x
• High Priority PortsPorts 1 to 2
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default),Extend mode
• MAC Address Table2 K
• Switching Capacity1.2 Gbps
• Packet Forwarding Rate0.8928 Mpps
• Internal Cache768 Kbits

• PoE Power Supply
• PoE StandardPort 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt; Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortHi-PoE: Port 1,PoE: Ports 2 to 4
• Max. Port PowerPort 1: 60 W,Ports 2 to 4: 30 W
• PoE Power Budget60 W

• Software Function
• Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
• Port ConfigurationSupport port rate configuration, flow control, and ports enabling.

• General
• ShellMetal material, IP40
• Net Weight0.245 kg (0.54 lb)
• Gross Weight0.645 kg (1.42 lb)
• Dimensions (W × H × D)145.00 mm × 25.60 mm × 68.45 mm (5.71'' × 1.00'' × 2.69'')
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 1.35 A
• Max. Power Consumption65 W
• Power Consumption In Idle2 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
