Switch HikVision 30 porturi PoE DS-3E3730

Descriere

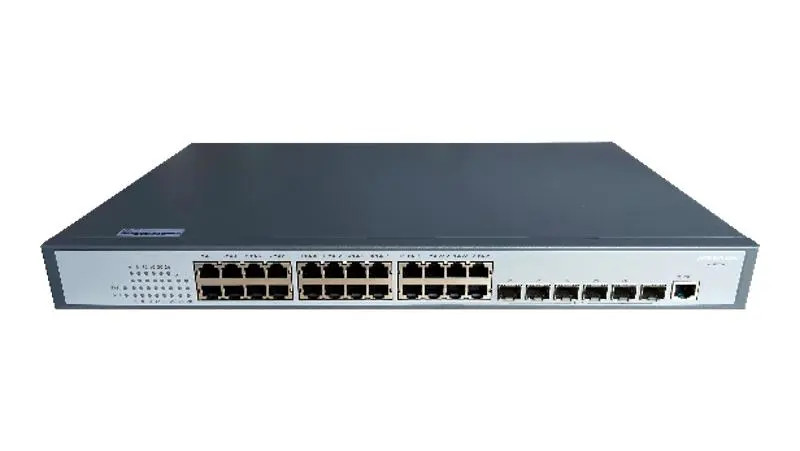

Switch 30 porturi PoE Hikvision DS-3E3730

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -20°C si +70°C si cu umiditate de pana la 95%.

• Network Parameters
• Ports24 × 1 Gigabit RJ45 port,6 × 10 Gigabit fiber optical port
• Forwarding ModeStore-and-forward switching
• MAC Address Table32 K
• Switching Capacity598 Gbps
• Packet Forwarding Rate222 Mpps

• Software Function
• Device Maintenance

  Support Console, Telnet, SSH

  Support web, http, https

  Support FTP, TFTP, Xmodem, SFTP

  Support SNMP V1/V2c/V3

  Support RMON

  Support NTP

• Reliability

  Support STP/RSTP/MSTP

  Support EAPS/MEAPS

  Support MRD-Ring

  Support ERPS

  Support VRRP

  Support BFD for OSPF

  Support BFD for BGP

• VLAN

  Support IEEE 802.1Q (VLAN), 4096 VLAN IDs

  Support GVRP

  Support QinQ

  Support VLAN based on MAC/protocol/IP subnet/policy/port

  Support Private VLAN

  Support 1:1 and N:1 VLAN mapping functions

• Port Mirroring

  Support local and remote port mirroring

  Support N:4 port mirroring

  Support flow mirroring

  Support MAC mirroring

• Routing Feature

  Support static routing, RIP, OSPF, BGP, MPLS

  Support IPv4/IPv6 ECMP

  Support VRRP, VRRP v3

  Support IPv4/IPv6 policy-based routing

  Support IPv4/IPv6 routing policy

  Support IPv4/IPv6 dual stack

  Support IPv6 static routing, RIPng, OSPFv3

• QoS

  Support Diff-Serv QoS

  Support 802.1p/DSCP priority mapping

  Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ

  Support priority marking and remarking

  Support traffic shaping

  Support congestion avoidance, Tail-Drop and WRED

  Support 802.1p, TOS, DSCP, and EXP priority mapping

  Support port/flow-based rate limiting

• Multicast

  Support IGMP v1/v2/v3 Snooping

  Support IGMP V1/V2/V3

  Support MLD Snooping v1/v2

  Support MLD v1/v2

• ACL

  Support IP-based ACL/MAC-based ACL

  Support based on MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority

  Support up to 256 ACLs

• Link AggregationSupport IEEE 802.3ad LACP/static link aggregation
• Security

  Support AAA,TACACS+ Radius authentication

  Support 802.1X authentication, MAC authentication, MAC bypass authentication

  Support to prevent DOS, ARP attack function, ICMP anti attack

  Support binding of IP, MAC, port and VLAN

  Support MAC authentication

  Support MAC address filtering

  Support broadcast/multicast/unknown-unicast storm control

• General
• ShellIron shell, fan cooling design
• Net Weight3.4 kg (7.50 lb)
• Dimensions (W × H × D)440.00 mm × 44.00 mm × 280.00 mm (17.32'' × 1.73'' × 11.02'')
• Operating Temperature0 °C to 50 °C (32 °F to 122 °F)
• Storage Temperature-20 °C to 70 °C (-4 °F to 158 °F)
• Operating Humidity10% to 90% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Consumption In Idle75 W
