NOU

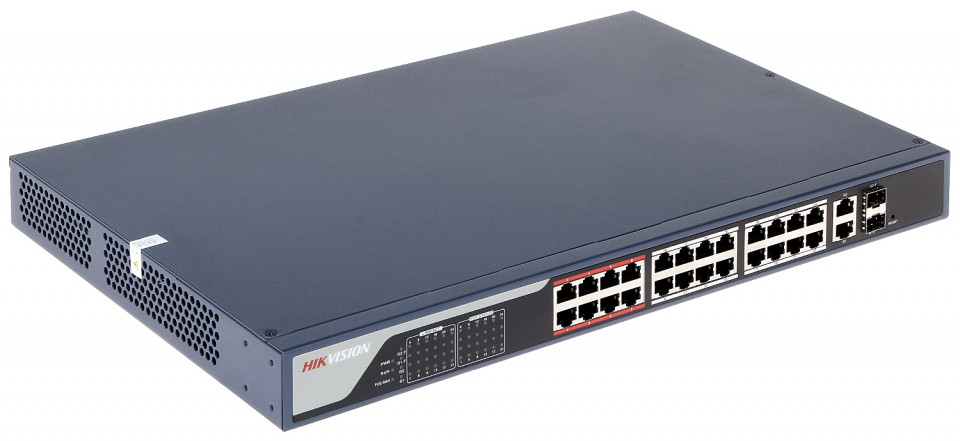

Switch HikVision 24 porturi Smart PoE cu web interface DS-3E1326P-SI

HikVision
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Cod produs - SKU DS-3E1326P-SI
EAN 4215
Produs disponibil in stoc extern .
Disponibil cu precomanda
Cere oferta de pret
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere


Switch 24 porturi PoE Hikvision DS-3E1326P-SI



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.





  • etwork Parameters
  • Ports24 × 10/100 Mbps PoE port,2 × 1 Gbps combo
  • Port TypeRJ45 port,full duplex,MDIMDI-X adaptive
  • StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
  • High Priority PortsPorts 1 to 8
  • Forwarding ModeStore-and-forward switching
  • Working ModeStandard mode (default),Extend mode
  • MAC Address Table16 K
  • Switching Capacity8.8 Gbps
  • Internal Cache4 Mbits
  • Packet Forwarding Rate6.5472 Mpps
  • PoE Power Supply
  • PoE StandardIEEE 802.3af,IEEE 802.3at
  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  • PoE PortPoE: Ports 1 to 24
  • Max. Port Power30 W
  • PoE Power Budget370 W
  • Software Function
  • Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
  • Port ConfigurationSupport port rate configuration, flow control, and ports enabling.
  • Long RangeUp to 300 m transmission
  • PoE Configuration

    PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond.

    PoE enabling: supported

  • Port MirroringSupported
  • Link AggregationStatic link aggregation supported for G1 and G2 ports
  • Port IsolationPorts in an isolation group cannot communicate with each other.
  • QoSWRR and SP scheduling and port priority
  • VLAN4094 VLANs
  • STPSTP and RSTP
  • SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
  • General
  • ShellMetal material
  • Net Weight2.83 kg (6.24 lb)
  • Gross Weight3.33 kg (7.34 lb)
  • Dimensions (W × H × D)440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100-240 VAC, 50/60 Hz, Max. 6.5 A
  • Max. Power Consumption400 W
  • Power Consumption In Idle5 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Detalii

SKU
DS-3E1326P-SI
EAN
4215
Categorii
Switch PoE
Greutate
0.75 kg
Brand
HikVision
Producator
HikVision
Numar porturi
24
Fisa tehnica
Fisa tehnica DS-3E1326P-SI.pdf
