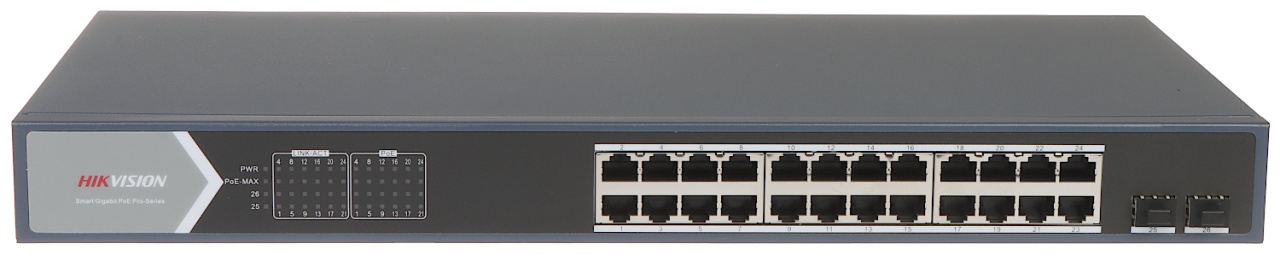

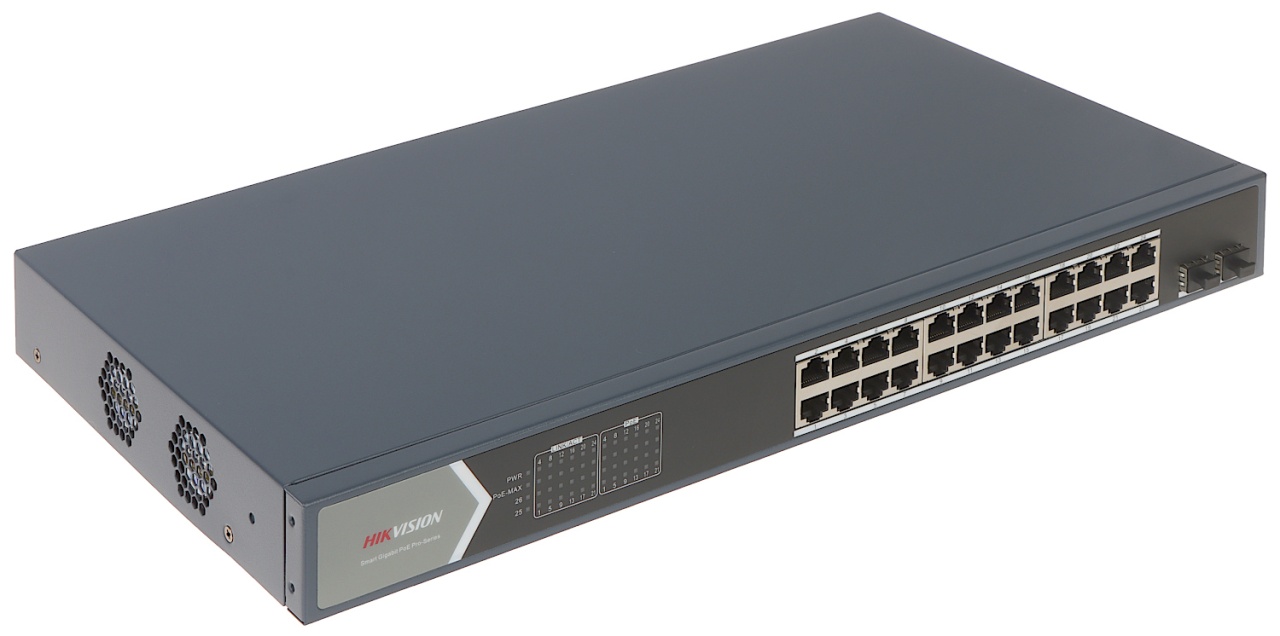

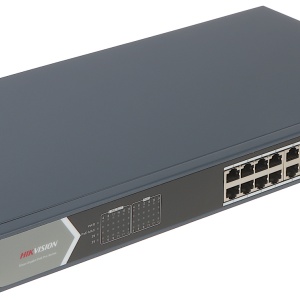

Switch HikVision 24 porturi PoE Gigabit DS-3E1526P-EI V2
Descriere
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
- General
- ShellMetal material
- Net Weight3.1 kg (6.83 lb)
- Gross Weight3.3 kg (7.27 lb)
- Dimensions (W × H × D)440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
- Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)

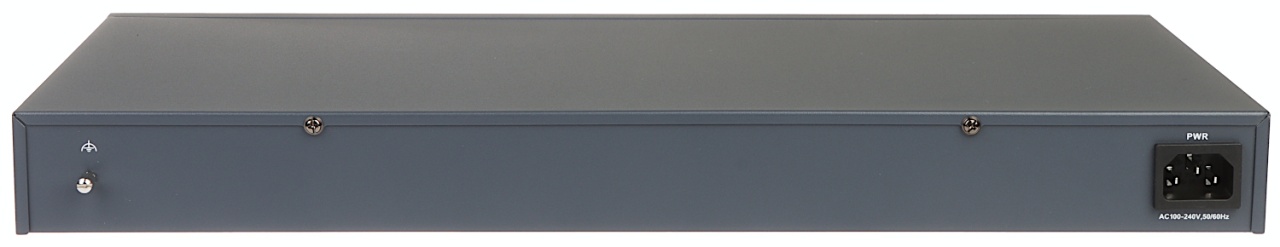

- Power Supply100~240 V AC, 50/60 Hz, Max. 6.3 A

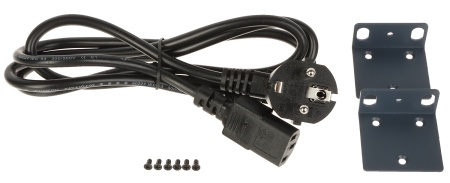

- Installation ModeRack (equipped with mounting ears)
- Max. Power Consumption400 W
- Power Consumption in Idle30 W
- Surge Protection6 KV
- Network Parameters
- Ports24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity56 Gbps
- Packet Forwarding Rate41.66 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPoE: Ports 1 to 24
- Max. Port Power30 W
- PoE Power Budget370 W
- Software Function
- Long Range
Ports 1 to 24: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- PoE WatchdogPorts 1 to 24: auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation group(s).
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
- Port Isolation
Ports 1 to 24: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- Approval
- EMCCE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
