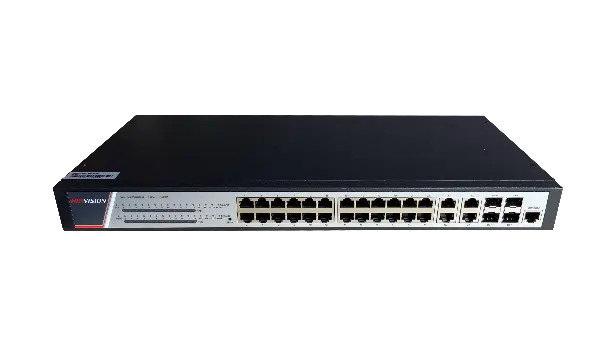

Switch HikVision 24 porturi PoE DS-3E2528P(B)

Descriere

Switch 24 porturi PoE Hikvision DS-3E2528P(B)

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -30°C si +65°C si cu umiditate de pana la 95%.

• Network Parameters
• Ports24 × 1 Gbps PoE port,4 × 1 Gbps combo
• MAC Address Table336 Gbps
• Switching Capacity56 Gbps
• Packet Forwarding Rate51 Mpps

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin1/2 (+), 3/6 (-)
• PoE Power Budget370 W

• Software Function
• VLAN

  Support IEEE 802.1Q (VLAN), 4096 VLAN IDs

  Support GVRP

  Support QinQ

  Support VLAN based on MAC/protocol/IP subnet/policy/port

  Support Private VLAN

  Support 1:1 and N:1 VLAN mapping functions

• QoS

  Support Diff-Serv QoS

  Support 802.1p/DSCP priority mapping

  Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ

  Support priority marking and remarking

  Support traffic shaping

  Support congestion avoidance, Tail-Drop and WRED

  Support 802.1p, TOS, DSCP, and EXP priority mapping

  Support port/flow-based rate limiting

• Management Method

  Support Console, Telnet, SSH

  Support web, http, https

  Support FTP, TFTP, Xmodem, SFTP

  Support SNMP V1/V2c/V3

  Support RMON

  Support NTP

• Multicast

  Support IGMP v1/v2/v3 Snooping

  Support IGMP V1/V2/V3

  Support MLD Snooping v1/v2

  Support MLD v1/v2

• Security

  Support AAA,TACACS+ Radius authentication

  Support 802.1X authentication, MAC authentication, MAC bypass authentication

  Support to prevent DOS, ARP attack function, ICMP anti attack

  Support binding of IP, MAC, port and VLAN

  Support MAC authentication

  Support MAC address filtering

  Support broadcast/multicast/unknown-unicast storm control

• General
• Net Weight3.1 kg (6.83 lb)
• Dimensions (W × H × D)440.00 mm × 44.00 mm × 210.00 mm (17.32'' × 1.73'' × 8.27'')
• Operating Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Operating Humidity10% to 90% (no condensation)
• Power Supply100-240 VAC, 50/60 Hz
• Power Consumption17 W

• Approval
• EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 24)
• SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2034)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2023)
