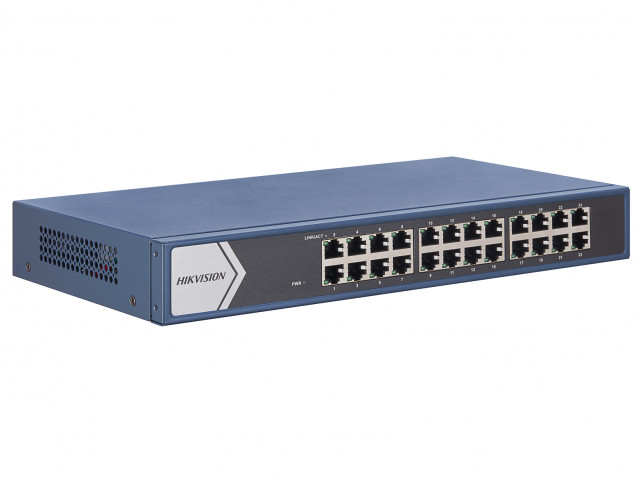

Switch HikVision 24 porturi Gigabit cu web interface DS-3E1524-EI

Descriere

• Key Feature
• Link AggregationSupport static link aggregation with up to 2 aggregation groups and up to 4 ports in each group.

• Network Parameters
• Port Number24 × gigabit RJ45 ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Working ModeStandard mode (default)
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
• Forwarding ModeStore-and-forward switching
• MAC Address Table8 K
• Internal Cache2 Mbits
• Switching Capacity48 Gbps
• Packet Forwarding Rate35.712 Mpps

• Operation Management
• Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
• Port ConfigurationSupport rate, flow control, and switch configuration

• General
• Dimension (W × H × D)335 mm × 44.5 mm × 175.8 mm (13.19” × 1.75” × 6.92”)
• Storage Temperature-40°C to 85°C (-40°F to 185°F)
• Power Source18 W
• Gross Weight1.62 kg (3.57 lb)
• Power Consumption In Idle13 W
• ShellMetal material, fan-free design
• Operating Temperature-10°C to 55°C (14°F to 131°F)
• Operating Humidity5% to 95% (no condensation)
• Power Supply220 VAC, 50/60 Hz, Max. 0.7 A
• Max. Power Consumption13 W
• Relative Humidity5% to 95% (no condensation)
