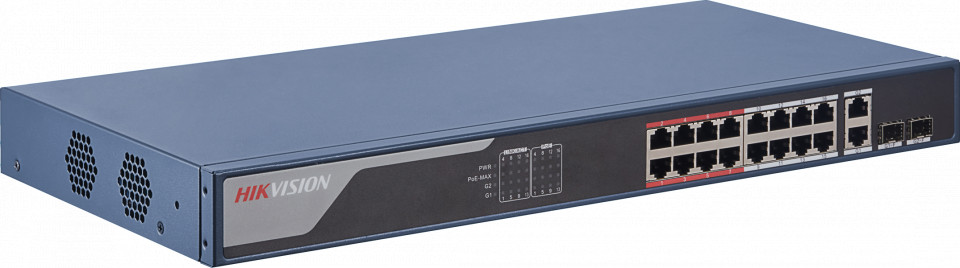

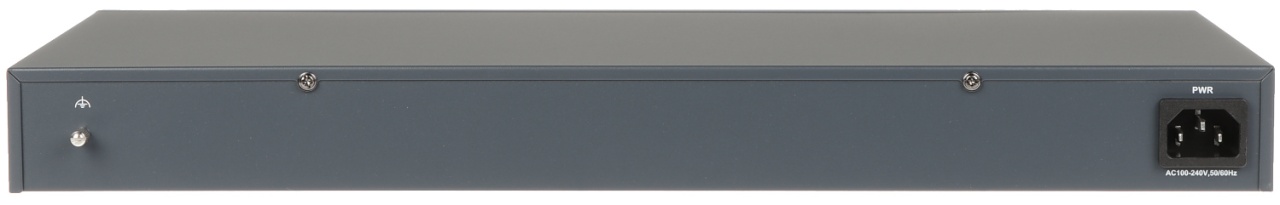

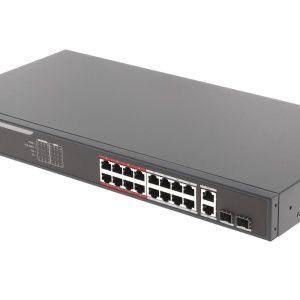

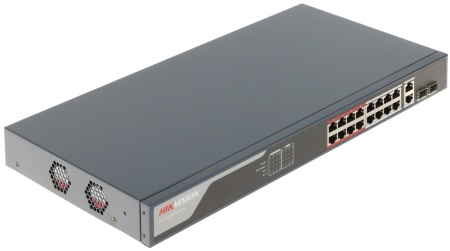

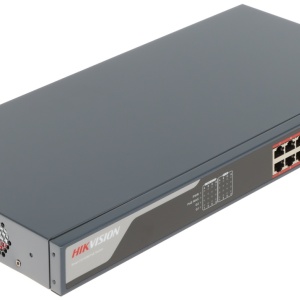

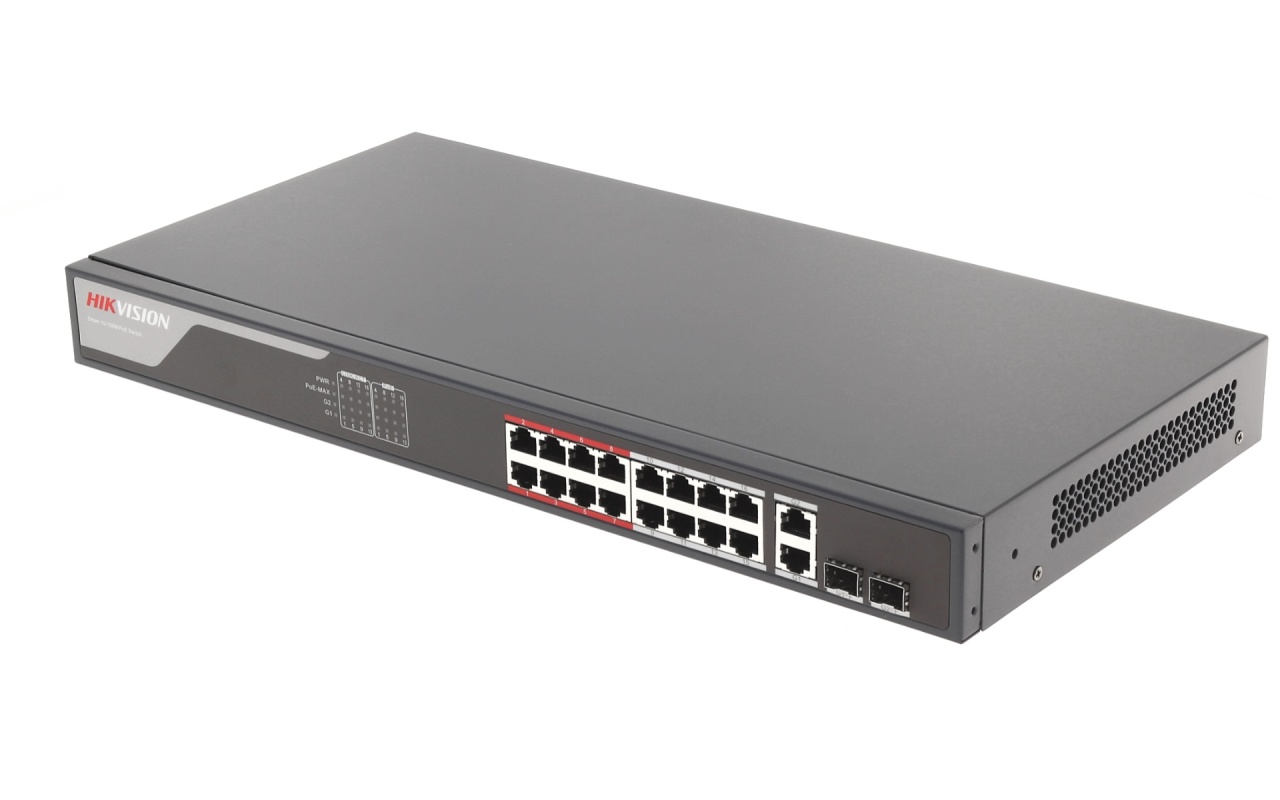

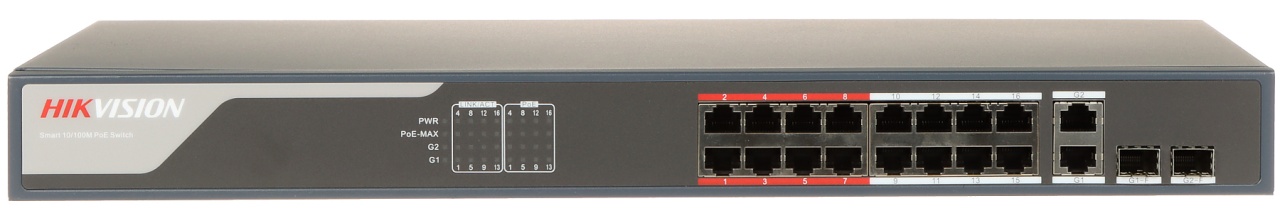

Switch HikVision 16 porturi PoE cu web interface DS-3E1318P-EI

Hikvision
1.075,04 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Hikvision
Stoc 1
Cod produs - SKU DS-3E1318P-EI
EAN 6931847157159
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere


Switch 16 porturi PoE Hikvision DS-3E1318P-EI



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.





  • Network Parameters
  • Port Number16 × 100 Mbps PoE RJ45 ports, and 2 × gigabit combos.
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • Working ModeStandard mode (default), Extend mode
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table16 K
  • Internal Cache4 Mbits
  • Switching Capacity7.2 Gbps
  • Packet Forwarding Rate5.3568 Mpps
  • Operation Management
  • Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
  • Port ConfigurationSupport rate, flow control, and switch configuration
  • PoE Power Supply
  • PoE StandardPorts 1 to 16: IEEE 802.3af, IEEE 802.3at
  • PoE Power PinEthernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
  • PoE PortPorts 1 to 16
  • Max. Port Power30 W
  • PoE Power Budget230 W
  • Software Function
  • PoE FunctionIEEE 802.3at/af device provides power supply.
  • General
  • Dimension (W × H × D)440 mm × 44 mm × 220.8 mm (4.76” × 3.47” × 1.09”)
  • Storage Temperature-40°C to 85°C (-40°F to 185°F)
  • Power Source250 W
  • Net Weight2.59 kg (5.71 lb)
  • ShellMetal material, fan-free design
  • Operating Temperature-10°C to 55°C (14°F to 131°F)
  • Operating Humidity5% to 95% (no condensation)
  • Power Supply100~240 VAC, 50/60Hz, Max. 2.5 A
  • Max. Power Consumption250 W

Detalii

SKU
DS-3E1318P-EI
EAN
6931847157159
Categorii
Switch-uri
Greutate
0.75 kg
Brand
Hikvision
Producator
Hikvision
PoE
Da
Numar porturi
16
Fisa tehnica
Fisa tehnica DS-3E1318P-EI.pdf
