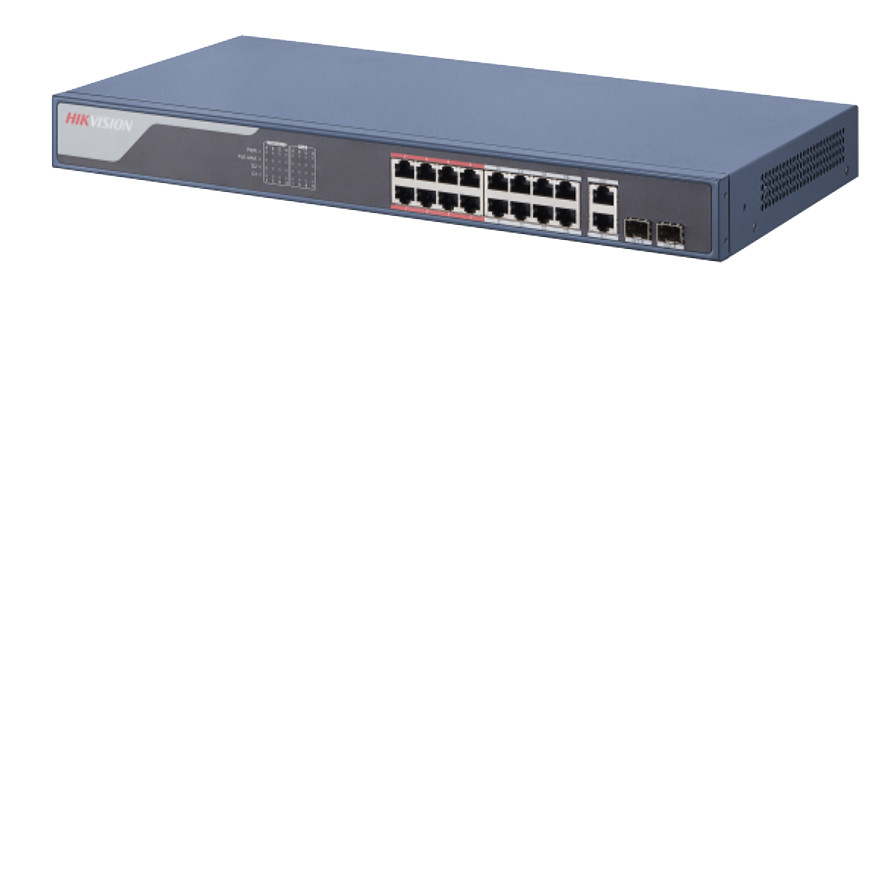

Switch HikVision 16 porturi PoE cu smart management DS-3E1318P-SI

Hikvision
1.319,52 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Hikvision
Stoc 9
Cod produs - SKU DS-3E1318P-SI
EAN 6941264078418
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere


Switch 16 porturi PoE Hikvision DS-3E1318P-SI



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.





  • Network Parameters
  • Port Number16 × 100 Mbps PoE RJ45 port, and 2 × gigabit combo
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • High Priority PortsPorts 1 to 8
  • Forwarding ModeStore-and-forward switching
  • Working Mode

    Standard mode (default)

    Extend mode

  • MAC Address Table16 K
  • Switching Capacity7.2 Gbps
  • Packet Forwarding Rate5.3568 Mpps
  • Internal Cache4 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  • PoE PortPoE: Ports 1 to 16
  • Max. Port Power30 W
  • PoE Power Budget230 W
  • Software Function
  • Device MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
  • Port ConfigurationPort rate configuration, slow control, and ports enabling
  • Long RangeUp to 300 m transmission
  • PoE Configuration

    PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.

    PoE enabling: Support

  • Port Rate-LimitingRate-limiting for ingress and egress ports
  • Storm ControlStorm control of unknown unicast, multicast and broadcast
  • Port MirroringSupport
  • Link AggregationStatic link aggregation supported for G1 and G2 port
  • Port IsolationPorts in isolation group cannot communicate with each other.
  • QoSWRR and SP scheduling and port priority
  • VLAN4094 VLANs
  • STPSTP and RSTP protocols
  • SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
  • LLDPLLDP protocol supported for port configuration, global configuration and neighbor discovery
  • General
  • ShellMetal material
  • Net Weight2.59 kg (5.71 lb)
  • Gross Weight3.09 kg (6.81 lb)
  • Dimension (W × H × D)440 mm × 44 mm × 220.8 mm (17.32" × 1.73" × 8.69")
  • Operating Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-40°C to 85°C (-40°F to 185°F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100 VAC~240 VAC, 50/60 Hz, Max. 2.5 A
  • Max. Power Consumption250 W
  • Power Consumption In Idle5 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Detalii

SKU
DS-3E1318P-SI
EAN
6941264078418
Categorii
Switch-uri
Greutate
0.75 kg
Brand
Hikvision
Producator
Hikvision
PoE
Da
Numar porturi
16
Fisa tehnica
Fisa tehnica DS-3E1318P-SI.pdf
