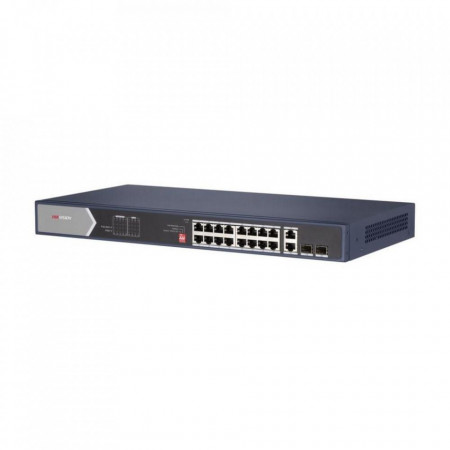

Switch HikVision 12 porturi PoE Gigabit , 4 porturi HiPoE Gigabit si un doua porturi Gigabit fibra optica DS-3E0520HP-E

Switch HikVision 12 porturi PoE Gigabit , 4 porturi HiPoE Gigabit si un doua porturi Gigabit fibra optica DS-3E0520HP-E

1.100,00 RON
TVA inclus; Costurile de livrare nu sunt incluse
Disponibil in stoc
Comenzi telefonice - 0761.40.40.400761.40.40.40, Luni - Vineri: 09:00 - 18:00
Cod produs - SKU: DS-3E0520HP-E
Producator: Hikvision
PoE: Da
Numar porturi: 16
Rata de transfer: 1000Mbps
  • ×

Descriere


Switch 16 porturi PoE Hikvision DS-3E0520HP-E



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.




  • PoE Power Supply
  • PoE Standard

    Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

    Ports 5 to 16: IEEE 802.3af, IEEE 802.3at

  • PoE Power Pin

    Ports 5 to 12: Ethernet cables 1/2/3/6 provide power supply.

    Ports 1 to 4 and 13 to 16: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

  • PoE PortPorts 1 to 16
  • Max. Port Power

    Ports 1 to 4: 90 W

    Ports 5 to 16: 30 W

  • Hi-PoE PortPorts 1 to 4
  • PoE Power Budget225 W
  • Network Parameters
  • Port Number12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding ModeStore-and-forward switching
  • Working ModeStandard mode (default), Extend mode Isolation mode, PoE watchdog mode
  • Ports For Long-Distance TransmissionPorts 13 to 16
  • MAC Address Table8 K
  • Switching Capacity40 Gbps
  • Packet Forwarding Rate29.76 Mpps
  • Internal Cache4.1 Mbits
  • Dialing Function
  • Long RangePorts 13 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
  • Port IsolationPorts 1 to 16: port isolation mode to improve network security.
  • PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
  • General
  • ShellMetal material
  • Net Weight2.79 kg (6.15 lb)
  • Dimension (L × H × D)440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply100 to 240 VAC, 50/60Hz, Max. 4 A
  • Power Consumption In Idle< 25 W
  • Power Souce250 W
  • Max. Power Consumption250 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
